ADP2381
Data Sheet
Rev. 0 | Page 26 of 28

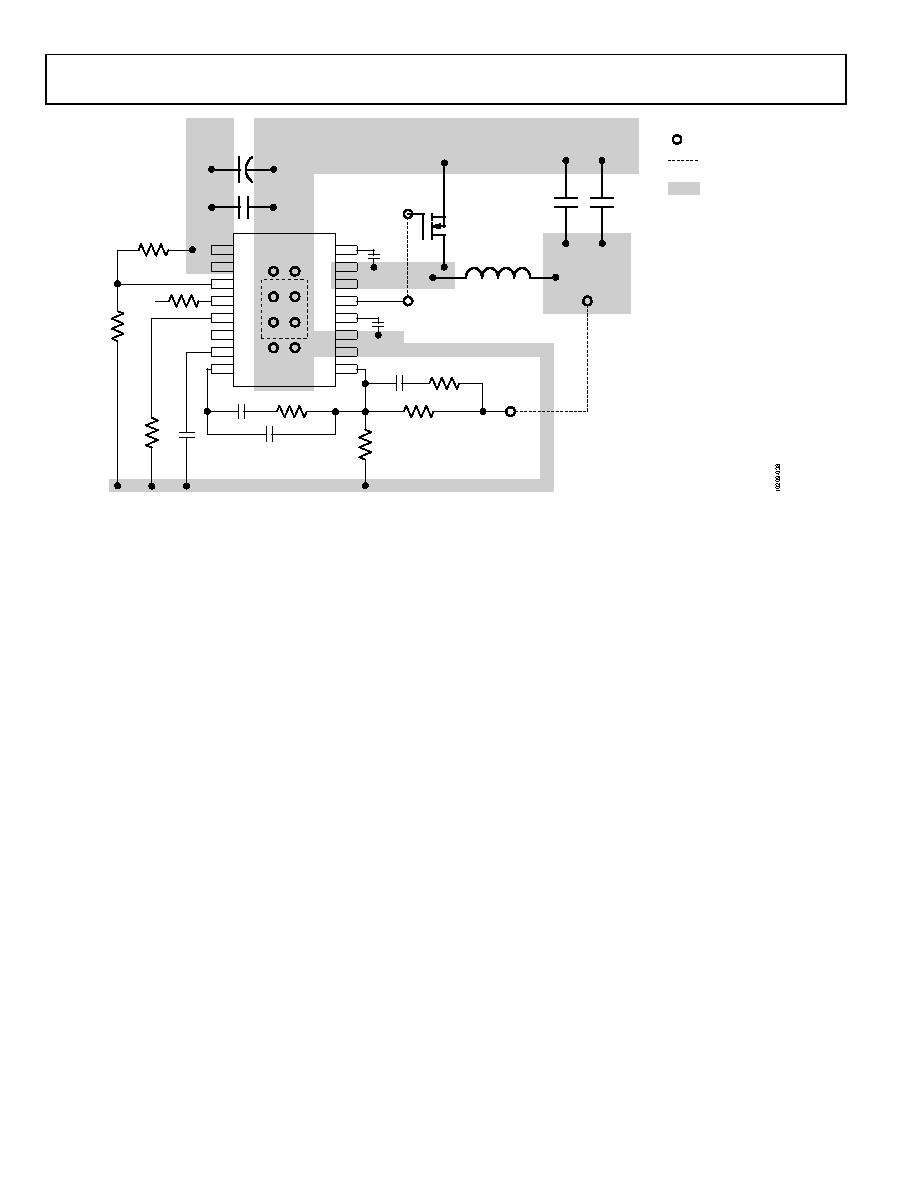

Figure 38. Recommended PCB Layout
PVIN
PVIN
UVLO
PGOOD
RT
SYNC
EN/SS
COMP
BST
SW
SW
LD
VREG
PGND
GND
FB
SW
Pull Up
POWER GROUND PLANE
VOUT
PVIN
Input
Bulk Cap
Input
Bypass
Cap
ANALOG GROUND PLANE
ROSC
CSS
INDUCTOR
LOW-SIDE
MOSFET
Output
Capacitor
RBOT
RTOP
RC_EA
CCP_EA
CC_EA
CVREG
CBST
Bottom Layer
Trace
VIA
Copper Plane
