SPECIFICATIONS ARE FOR REFERENCE ONLY AND SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE – DIMENSIONS IN MILLIMETER

Part Number

Signal Contacts

Power Contacts

Orientation

Magnetics

Light Pipes

Y-ConJack-31

90°

Yes

Y-ConJack-32

90°

Yes

Y-ConJack-33

90°

Yes

Y-ConJack-34

90°

Y-ConJack-35

90°

Yes

Y-ConJack-36

90°

Yes

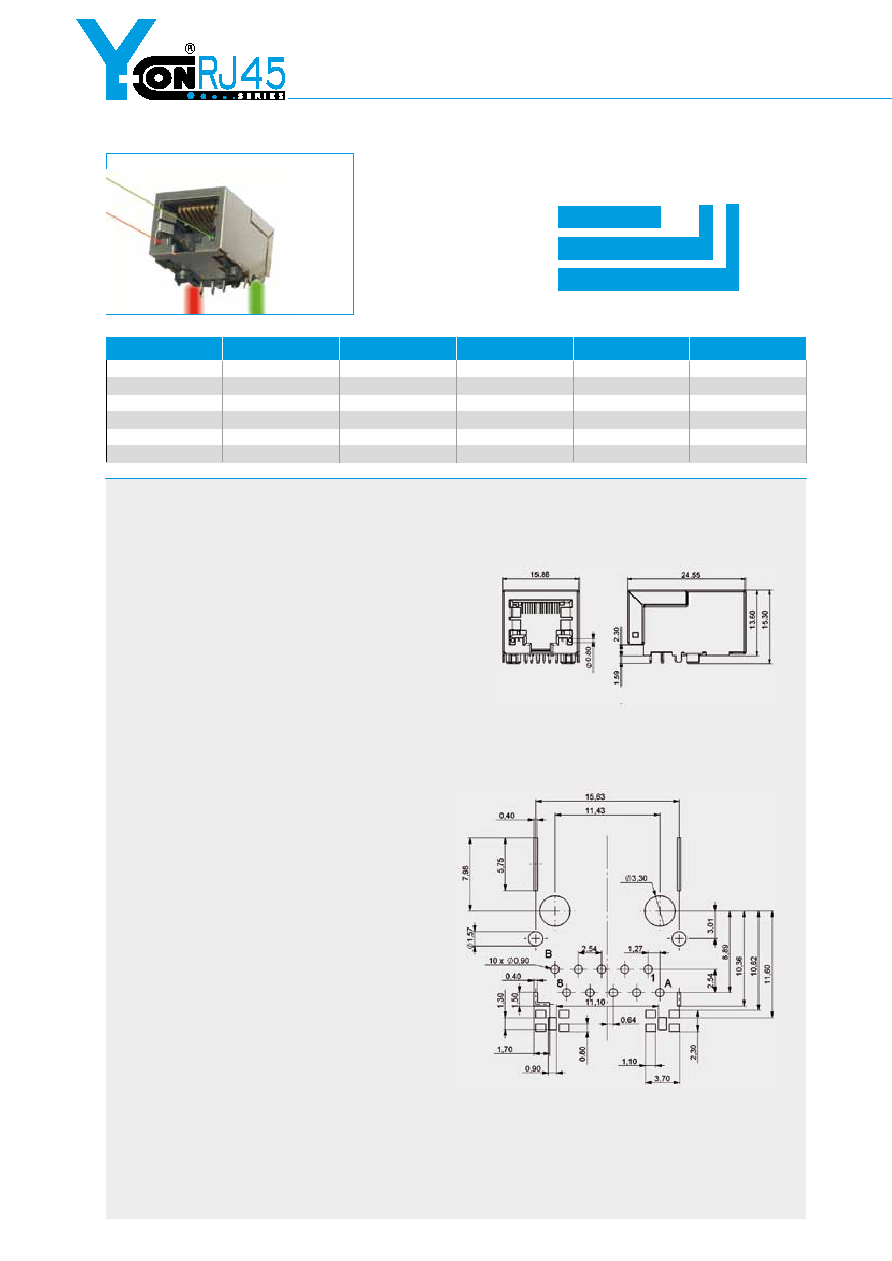

Outline Dimensions

PCB Layout

Y-ConJack-31

Description:

RJ45 jack 90° with magnetics and light pipes.

For THR soldering. Also available with power contacts.

For different combinations please see table above.

Light pipes enable the usage of the same jack even

for different LED colours. For use with all Y-Con plugs

RJ45-Buchse 90° mit Magnetic-Baustein und Lichtleiter für

THR-Verlötung. Auch mit zusätzlichen Kontakten für die Stromversorgung.

Verschiedene Kombinationsmöglichkeiten siehe lt. Tabelle.

Lichtleiter ermöglicht die Verwendung der identischen Buchse

für verschiedenfarbige LEDs.

Material:

Jack body

PA, UL94V-0

Isolierkörper

Shielding

Nickel plated brass

Schirmung

Contact

Contact area 30µ”Au/50µ”Ni

Kontakte

Solder area

80µ”Sn/50µ”Ni

Specifications:

Oper. Temp.:

-40°C ~ +120°C

Betriebstemp.

Solder Temp:

Reflow max. 260°C / 10sec.

Löttemp.

Durability:

1,500 mechanical cycles

Lebensdauer

Current Rating:

2.1A @ 70°C (power contacts)

Bemessungsstrom

Series

3 = 90°

See table below

Y-ConJack - 3 *

Part Number (Details)
