Network Analyzer
(HP8753ES)
RL = 50 Ω
EXT TRIGGER
BIAS
P1
P2
DUT
A0
SEL
0B1
VSEL
VCC
VBIAS
0B2
A1
1B1
1B2
TS2PCIE412
SCDS269C – MARCH 2009 – REVISED APRIL 2010
www.ti.com
PARAMETER MEASUREMENT INFORMATION (continued)

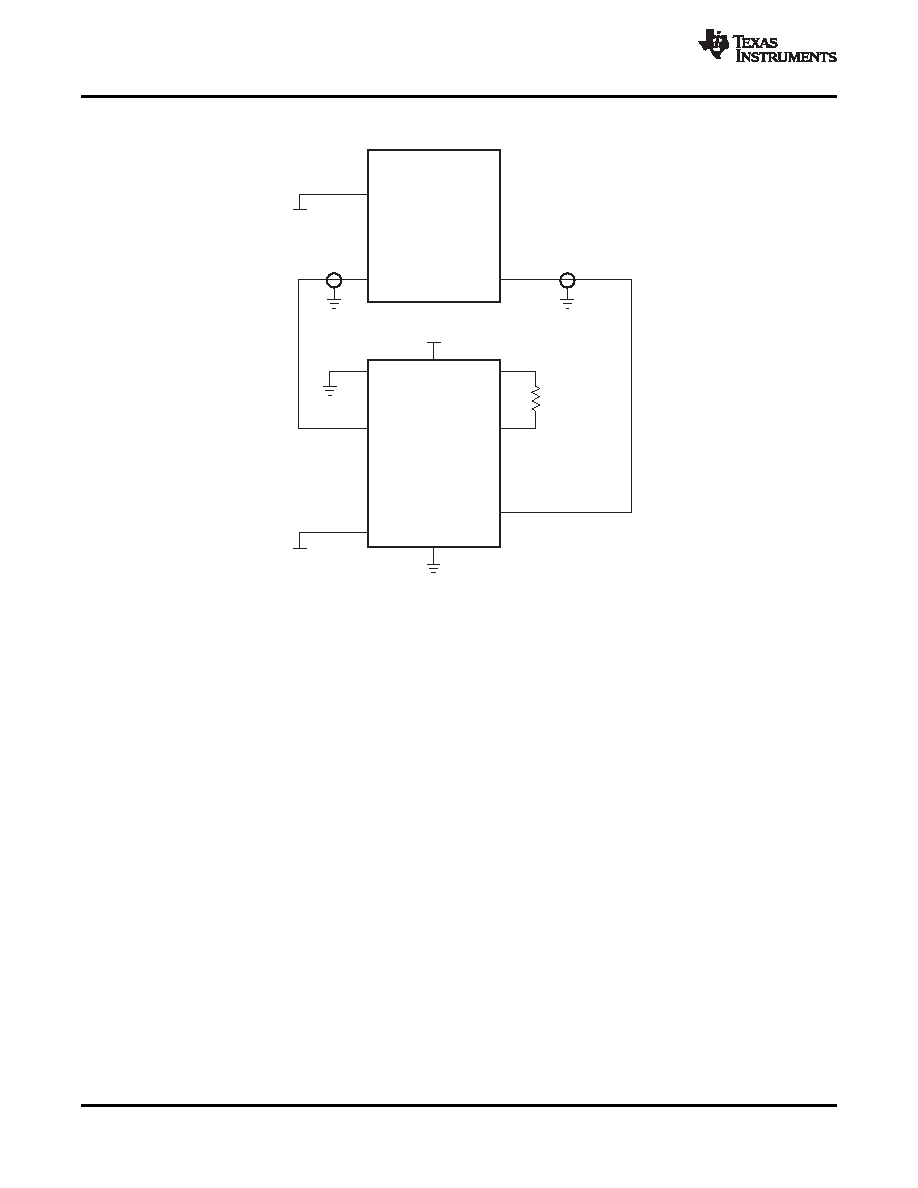

Figure 10. Test Circuit for Off Isolation (OIRR)
OFF isolation is measured at the output of the OFF channel. For example, when VSEL = 0 V and A1 is the input,
the output is measured at 1B2. All unused analog input (A) ports are left open, and output (B) ports are
connected to GND through 50-
Ω pulldown resistors.
HP8753ES Setup
Average = 4
RBW = 3 kHz
VBIAS = 0.35 V
ST = 2 s
P1 = 0 dBM
12
Submit Documentation Feedback
Copyright © 2009–2010, Texas Instruments Incorporated
Product Folder Link(s): TS2PCIE412
