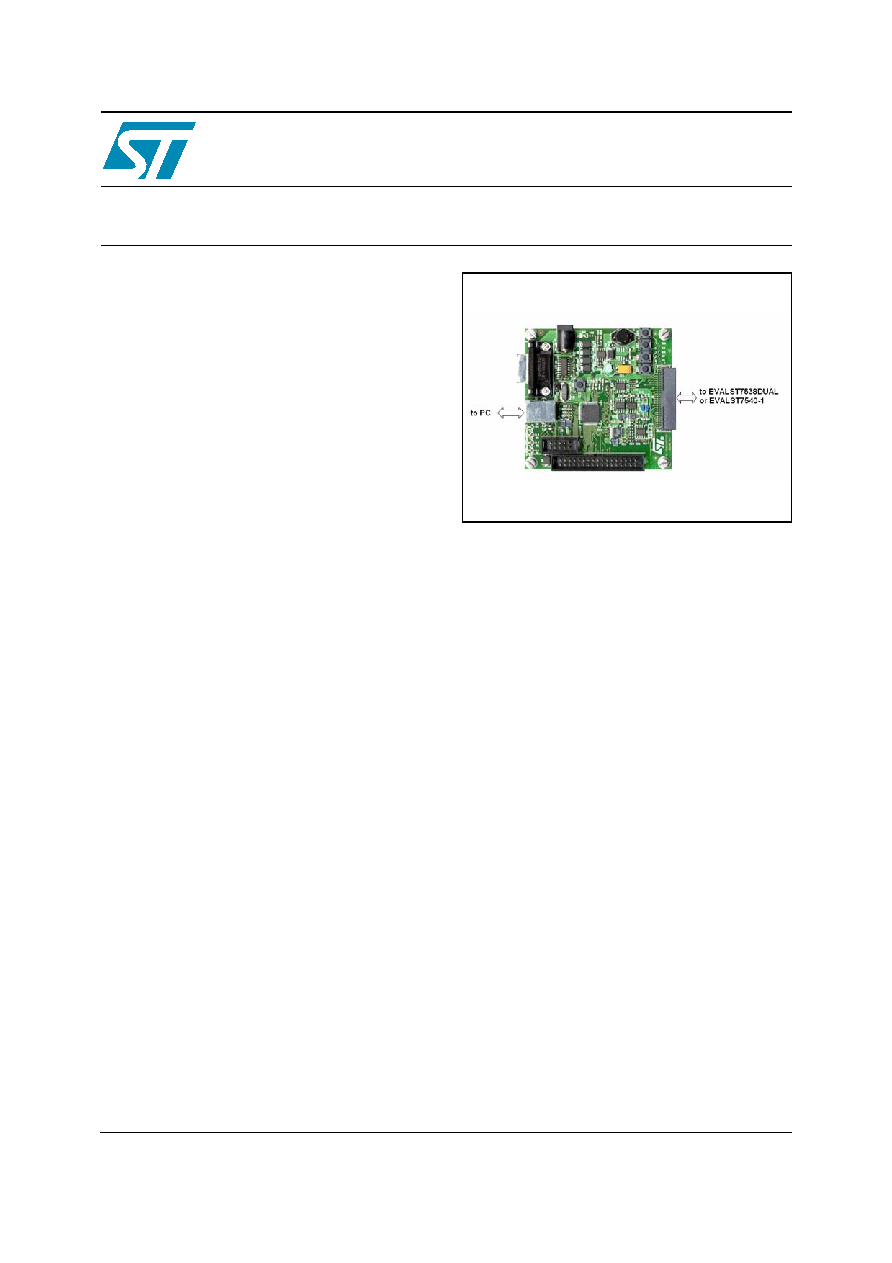

EVALCOMMBOARD

Main interface to the controlling PC a standard 12Mbps based on a

ST72F651AR6 USB microcontroller

General description

The EVALCOMMBOARD is a general purpose

board developed around the following principles:

channel between a controlling PC and the

different reference design boards

designs.

reference design specific Graphical User

Interface (GUI).

The EVALCOMMBOARD is based on a

ST72F651AR6 USB microcontroller, providing as

main interface to the controlling PC a standard 12

Mbps USB, available on all recent PCs. An RS232

interface is also available, which can be used as

spare communication port. Specific interfaces to

different reference design boards are present,

providing high flexibility for several applications.

Ten bits digital to analog converter (DAC) and high

gain, high bandwidth amplifiers are present on the

board. Jumpers, switches and LEDs give further

adaptability and visualization tools.

A full range of dedicated FW, GUIs and reference

design boards are available for different Industrial

products.
