Dimensions shown in inches (mm)

Specifications and dimensions subject to change

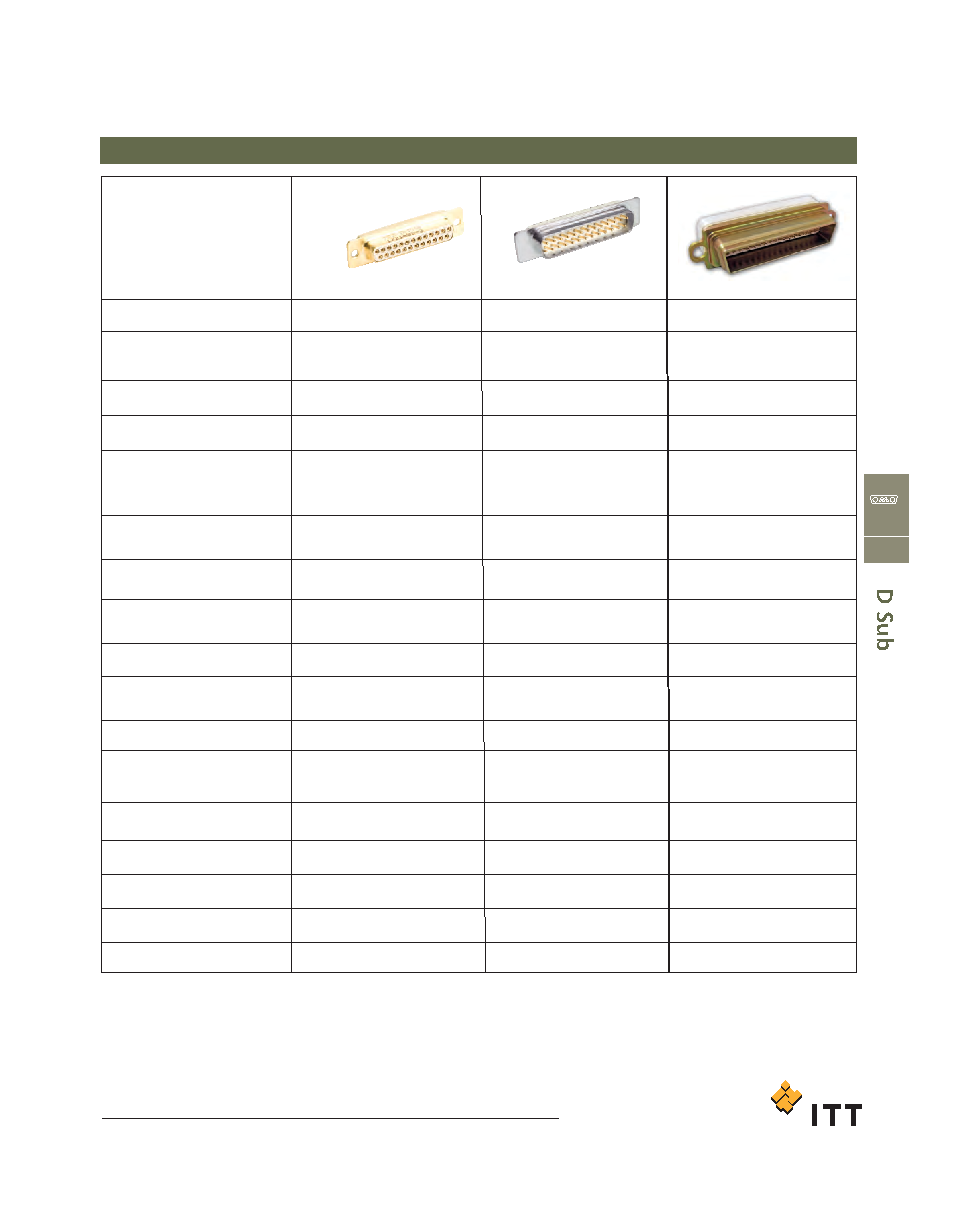

D Subminiature Selector Guide

Series

Wire Gauge Range

AWG

Mating Cycles

RoHS confirm

Layout

Operating Voltage

Current Rating

(Amps)

Contact Resistance

Operating Temperature

Mil Salt Spray Test

Resistance in hours

Shell Material

Shell Finish

Insulator

Contact Type

Contact Material

Contact Finish

Page Number

D*MAM

AWG 18 - 30

500

9, 15, 25, 37, 50,

15, 26, 44, 62, 78

(high density)

1700 VAC*

7,5 A max

10 milli Ohm max

(Signal Contacts)

-50°C/150°C

48 hours

Steel

RoHS - Tin/Nickel

Yellow chromate over

cadmium or zinc

Thermoplastic,

Type PCT UL 94V-0

Turned

Copper Alloy

1,27 µm gold

C-11

D- Subminiature

D*MM

AWG 18-30

500

9, 15, 25, 37, 50

1700 VAC*

7,5 A max

10 milli Ohm max

-50°C/150°C

48 hours

Steel

RoHS - Tin/Nickel

Yellow chromate over

cadmium or zinc

Thermoplastic,

PCT UL 94V-0

Turned

Copper Alloy

1,27 µm gold

C-18

D*D

AWG 20 - 24

500

9, 15, 25, 37, 50

1700 VAC

7,5 A max

10 milli Ohm max

-50°C/150°C

48 hours

Aluminum

Yellow chromate over

cadmium or zinc

Thermoplastic,

PCT UL 94V-0

Turned

Copper Alloy

1,27 µm gold

C-40
