Specifications subject to change without notice. Dimensions (mm).

3-PHASE, CHASSIS MOUNT WITH TERMINAL BLOCK

EMI/RFI LINE FILTER.

PDF Series

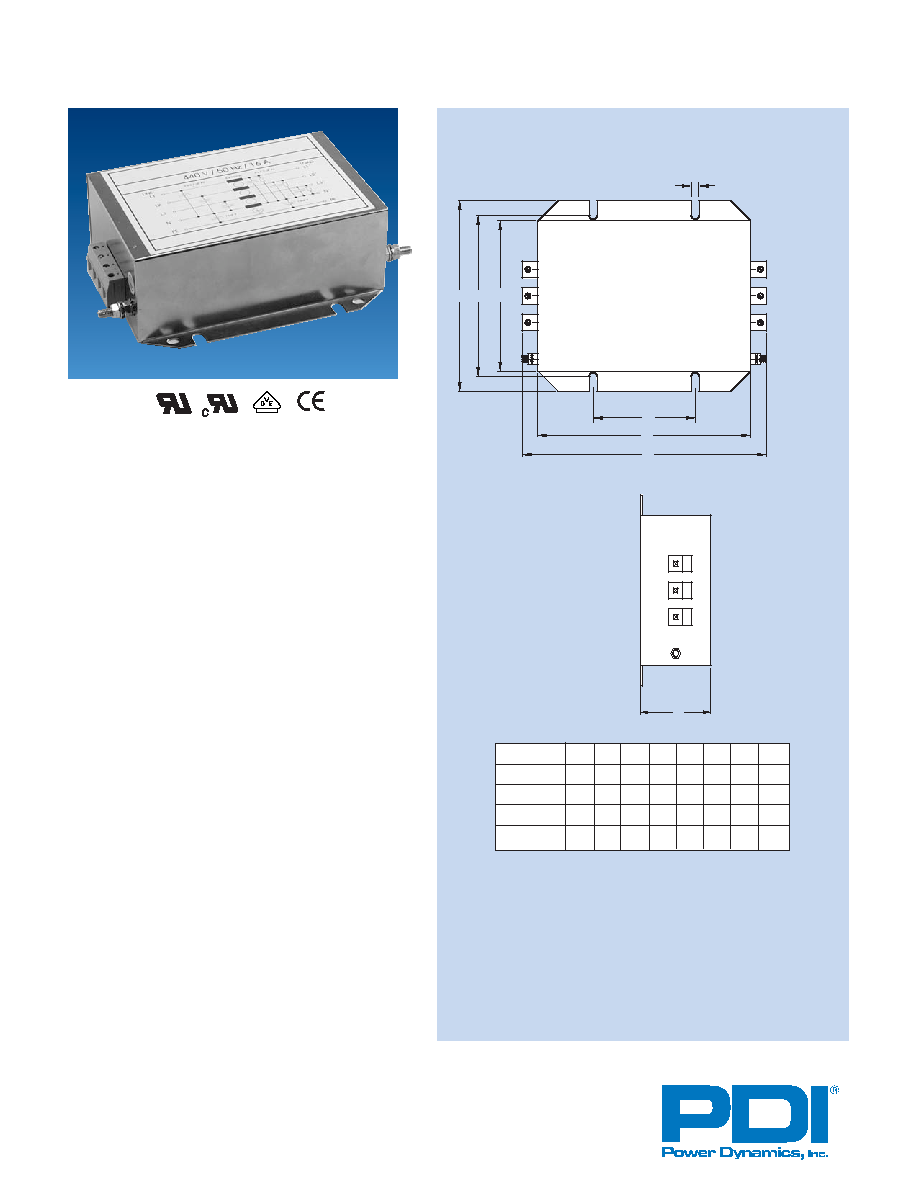

MECHANICAL DIMENSIONS

FEATURES

The PDF series offers 3-phase filters in the compactly

constructed chassis mount package. It offers terminal block

as the connecting terminals for easy connection. This high

performance filter is ideal for many high current applications

requiring EMC compliance with various industry standards.

APPLICATIONS

Motors, compressors, non-interrupting and switching-mode

power supplies and other electronic machines.

TECHNICAL DATA

(Unit: mm)

A

B

C

D E F

G

H

AB

C

D

E

F

G

H

PDF016T 175 150 85 125 112 100 6.4 56

PDF032T 180 150 85 125 112 100 6.4 55

PDF050T 265 200 115 150 135 120 6.4 64

PDF100T 340 260 150 180 165 150 10.5 80

53
