Data Sheet

ADP1190

Rev. 0 | Page 5 of 12

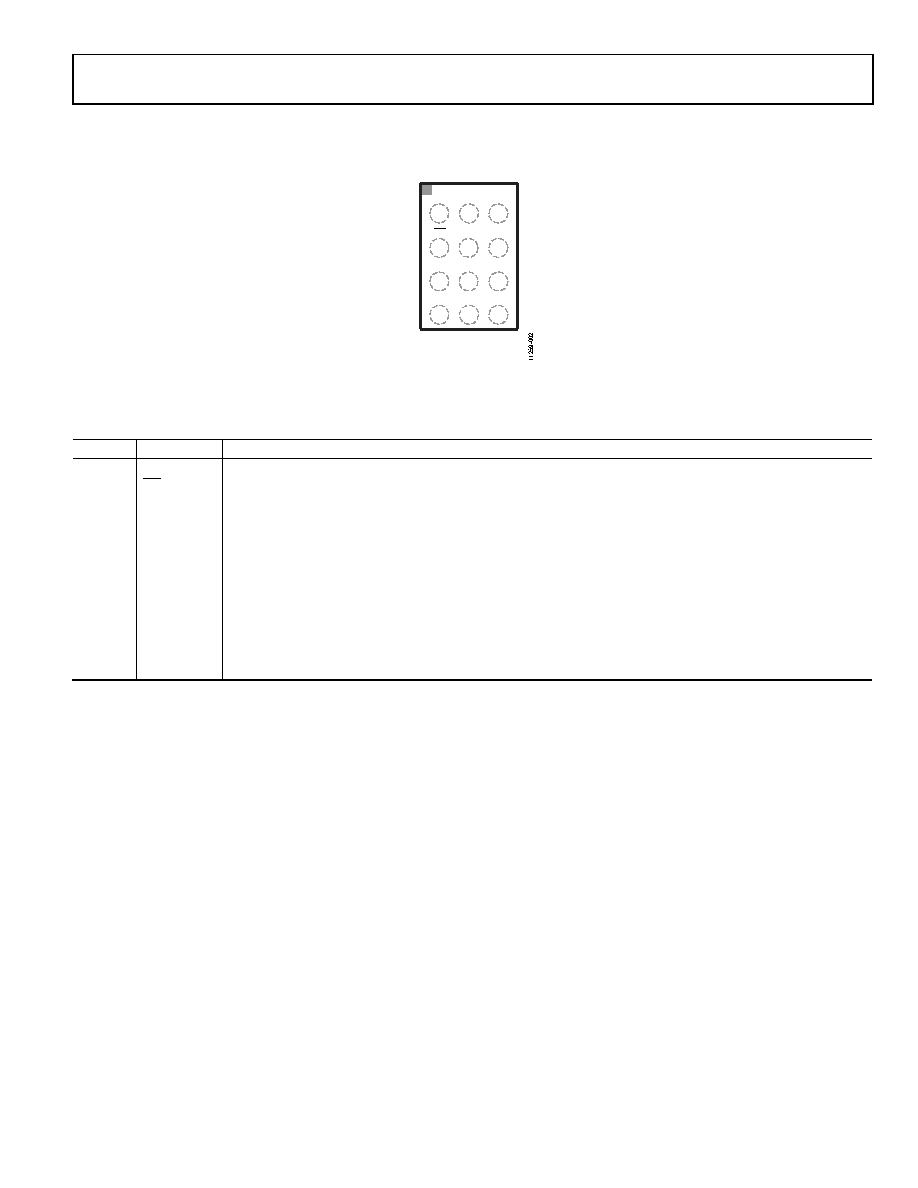

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

Figure 3. Pin Configuration

Table 4. Pin Function Descriptions

Pin No.

Mnemonic

Description

A1

GND

Ground.

B1

EN

Enable Input, Active Low.

C1

IN

Input Voltage.

D1

OUT

Load Switch Output Voltage.

A2

T1

Channel 1 Analog Switch. Connect to the SIM card socket (has active discharge).

B2

T2

Channel 2 Analog Switch. Connect to the SIM card socket (has active discharge).

C2

T3

Channel 3 Analog Switch. Connect to the SIM card socket (has active discharge).

D2

T4

Channel 4 Analog Switch. Connect to the SIM card socket (has active discharge).

A3

S1

Channel 1 Analog Switch. Connect to the microcontroller.

B3

S2

Channel 2 Analog Switch. Connect to the microcontroller.

C3

S3

Channel 3 Analog Switch. Connect to the microcontroller.

D3

S4

Channel 4 Analog Switch. Connect to the microcontroller.

TOP VIEW

(BALL SIDE DOWN)

Not to Scale

ADP1190

GND

T1

S1

EN

T2

S2

IN

T3

S3

OUT

T4

S4

1

A

B

C

D

2

3
