5 V, 3 A Logic Controlled

High-Side or Low-Side Load Switch

Data Sheet

ADP1196

Rev. 0

Document Feedback

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibilityisassumedbyAnalogDevicesforitsuse,norforanyinfringementsofpatentsorother

rightsofthirdpartiesthatmayresultfromitsuse.Specificationssubjecttochangewithoutnotice.No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarksandregisteredtrademarksarethepropertyoftheirrespectiveowners.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

Tel: 781.329.4700

©2013 Analog Devices, Inc. All rights reserved.

Technical Support

www.analog.com

FEATURES

Wide input voltage range: 0 V to 5.5 V

3 A continuous operating current at 70°C

Bias supply voltage range: 1.83 V to 5.5 V

Overtemperature protection circuitry

Low shutdown current: <3.5 µA

Ultrasmall 1.0 mm × 1.5 mm, 6-ball, 0.5 mm pitch WLCSP

APPLICATIONS

Communications and infrastructure

Thermoelectric cooler (TEC) controller reverse polarity

for heating and cooling

Fine line geometry core voltage inrush current control

Medical and healthcare

Instrumentation

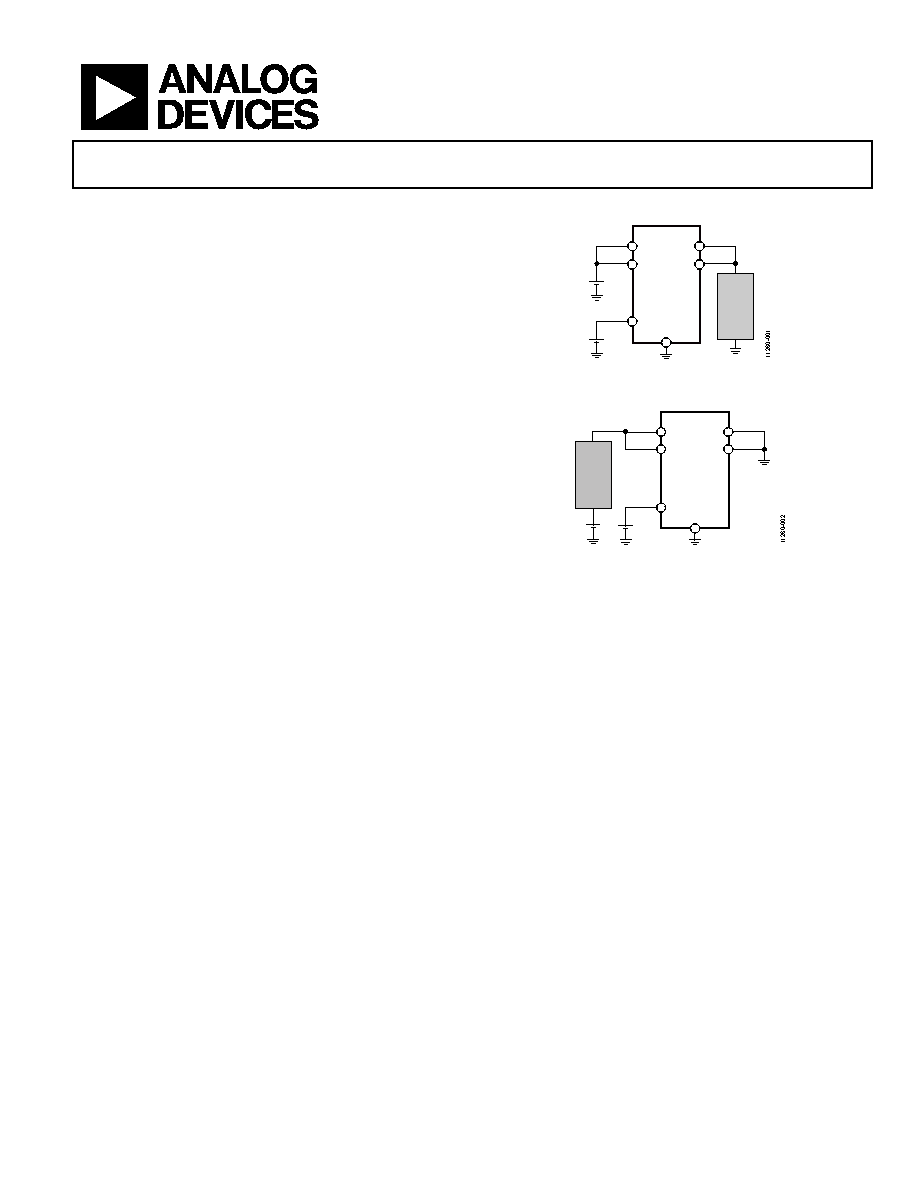

TYPICAL APPLICATIONS CIRCUITS

Figure 1. Low-Side Load Application

Figure 2. High-Side Load Application

GENERAL DESCRIPTION

The ADP1196 is a high-side or low-side load switch designed for

VIN operation between 0 V and 5.5 V with a VB_EN supply of

1.83 V to 5.5 V. The device contains an internal charge pump that

operates from either VIN or VB_EN, whichever is higher, and

an ultralow on resistance, N-channel MOSFET. This N-channel

MOSFET supports more than 2 A of continuous current at VIN

close to 0 V, and, with its ultralow on resistance, minimizes power

loss. In addition, the on resistance is constant, independent of the

VIN or VB_EN voltage. The low 26 µA quiescent current and

ultralow shutdown current make the ADP1196 ideal for low

power applications.

When the junction temperature exceeds 125°C, overtemperature

protection circuitry is activated, thereby protecting the ADP1196

and downstream circuits from potential damage.

The ADP1196 occupies minimal printed circuit board (PCB)

The ADP1196 is available in an ultrasmall 1.0 mm × 1.5 mm,

6-ball, 0.5 mm pitch WLCSP.

ADP1196

GND

VIN

VOUT

VIN

VOUT

VB_EN

LOAD

+

–

+

–

ADP1196

GND

VIN

VOUT

VIN

VOUT

VB_EN

LOAD

+

–

+

–
