Application information
LED2000
32/40
DocID023432 Rev 4

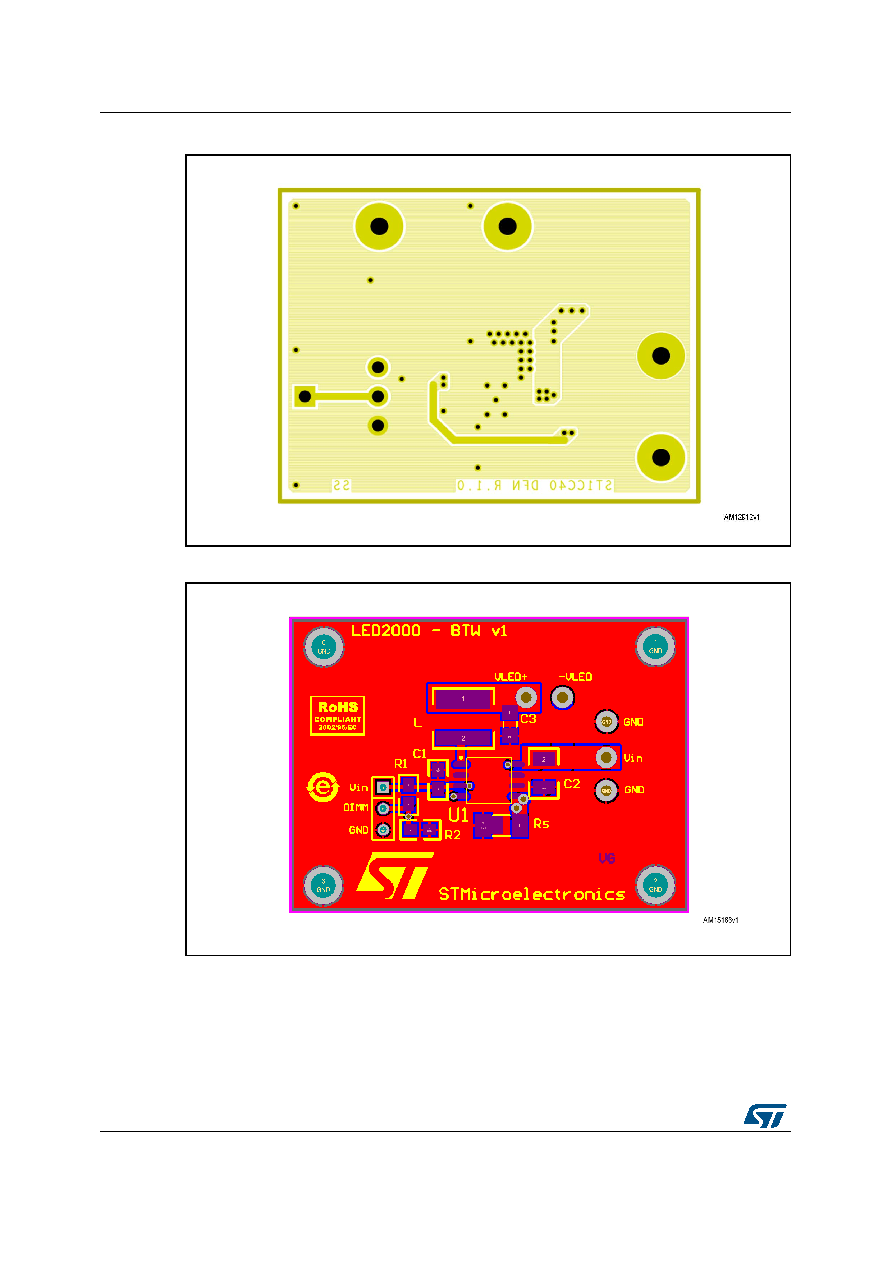

Figure 21. PCB layout (bottom side) VFQFPN package
Figure 22. PCB layout (component side) SO8 package
It is strongly recommended that the input capacitors are to be put as close as possible to the
pins, see C1 and C2.
