KA293/KA293A, KA393/KA393A, KA2903
5

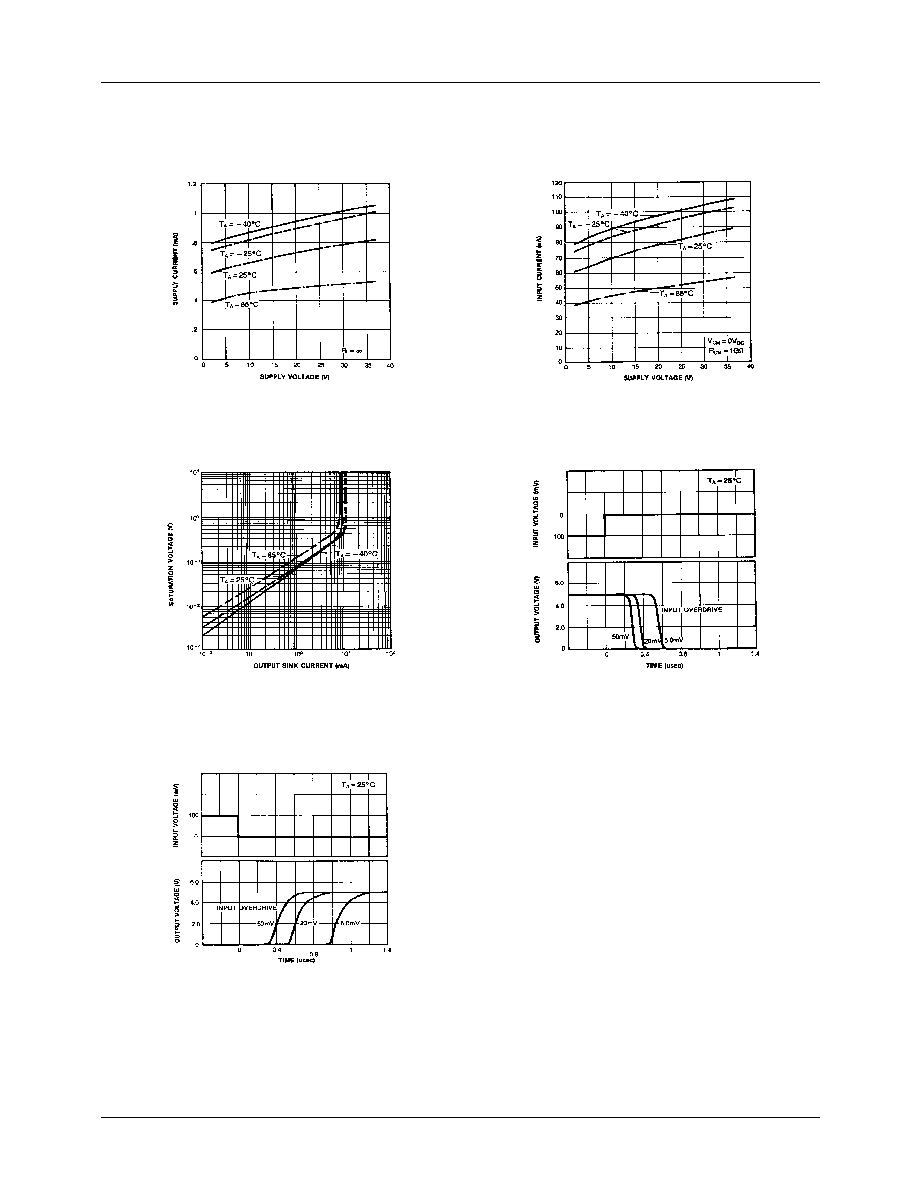

Typical Performance Characteristics
Figure 1. Supply Current vs Supply Voltage
Figure 2. Input Current vs Supply Voltage
Figure 3. Output Saturation Voltage vs Sink Current
Figure 4. Response Time for Various Input
Overdrive-Negative Transition
Figure 5. Response Time for Various Input
Overdrive-Positive Transition
