1. VALOX is a registered trademark of the General Electric Corporation.

Package and Handling Information

The Versatile Link package is made of a flame retardant

VALOX1 UL 94 V-0 material (UL file # E121562) and uses

the same pad layout as a standard, eight pin dual-in-line

package. These Versatile Link packages are stackable and

are enclosed to provide a dust resistant seal. Snap action

simplex, simplex latching, duplex, and duplex latching

connectors are offered with simplex or duplex cables.

Package Housing Color

Versatile Link components and simplex connectors are

color coded to eliminate confusion when making connec-

tions. Receivers are black and transmitters are grey.

Handling

Versatile Link components are auto-insertable.When wave

soldering is performed with Versatile Link components,

the optical port plug should be left in to prevent contami-

nation of the port. Do not use reflow solder processes (i.e.,

infrared reflow or vapor-phase reflow). Non-halogenated

water soluble fluxes (i.e., 0% chloride), not rosin based

fluxes, are recommended for use with Versatile Link

components.

Versatile Link components are moisture sensitive devices

and are shipped in a moisture sealed bag. If the compo-

nents are exposed to air for an extended period of time,

they may require a baking step before the soldering

process. Refer to the special labeling on the shipping tube

for details.

Recommended Chemicals for Cleaning/Degreasing

Alcohols: methyl, isopropyl, isobutyl. Aliphatics: hexane,

heptane. Other: soap solution, naphtha.

Do not use partially halogenated hydrocarbons such

as 1,1.1 trichloroethane, ketones such as MEK, acetone,

chloroform, ethyl acetate, methylene dichloride, phenol,

methylene chloride, or N-methylpyrolldone. Also, Avago

does not recommend the use of cleaners that use halo-

genated hydrocarbons because of their potential environ-

mental harm.

Interlocked (Stacked) Assemblies (refer to Figure 1)

Horizontal packages may be stacked by placing units

with pins facing upward. Initially engage the inter-locking

mechanism by sliding the L bracket body from above into

the L slot body of the lower package. Use a straight edge,

such as a ruler, to bring all stacked units into uniform

alignment. This technique prevents potential harm that

could occur to fingers and hands of assemblers from the

package pins. Stacked horizontal packages can be disen-

gaged if necessary. Repeated stacking and unstacking

causes no damage to individual units.

Stacking Horizontal Modules

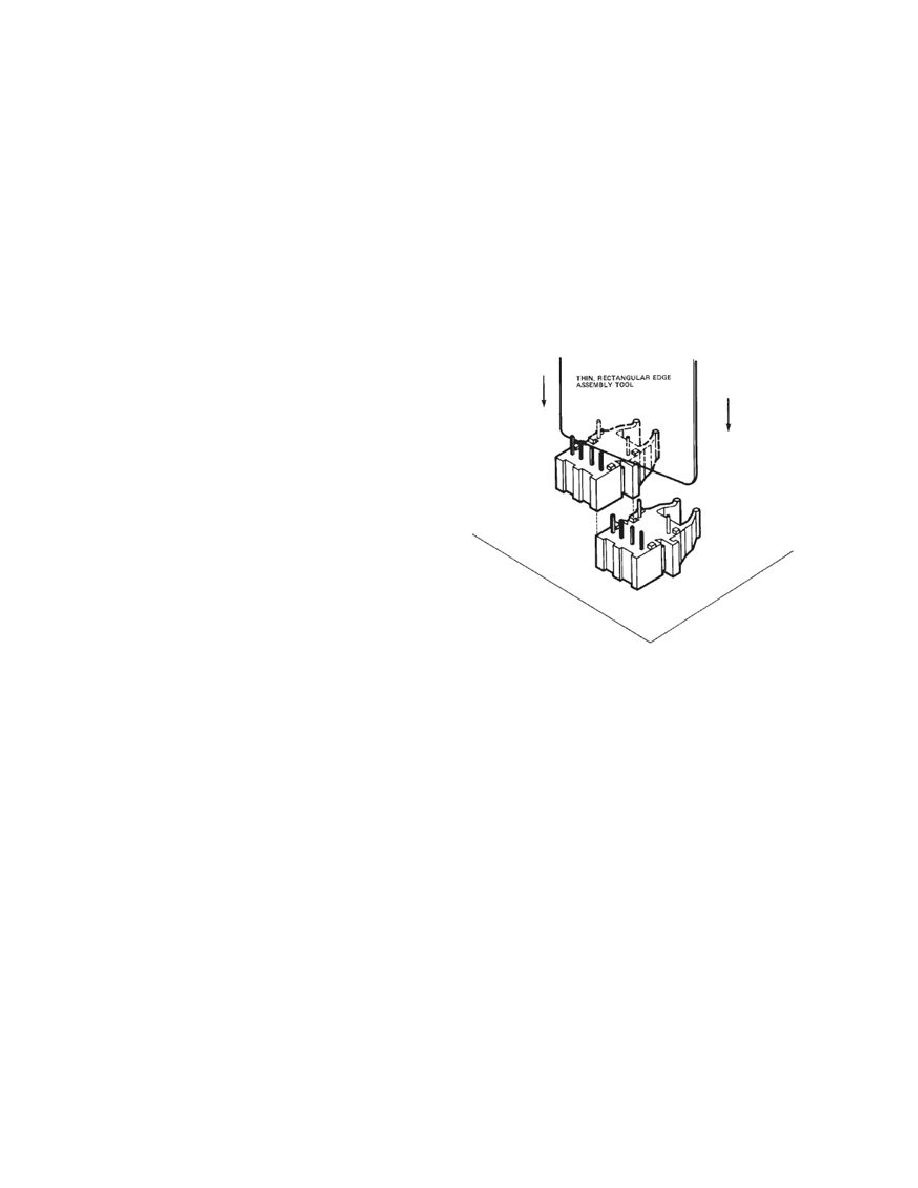

Figure 1. Interlocked (stacked) horizontal or vertical packages
