Absolute Maximum Ratings

Supply Voltage, VDD to Ground[1]

-0.5 V to 7.0 V

Input Voltage, Any Pin to Ground

-0.5 V to VDD + 0.5 V

Free Air Operating Temperature Range, TA

-40°C to +85°C

Storage Temperature, TS

-40°C to +85°C

CMOS IC Junction Temperature, TJ (IC)

+150°C

Relative Humidity (non-condensing) at 65°C

85%

Soldering Temperature [1.59 mm (0.063 in.) Below Body]

Solder Dipping

260°C for 5 secs

Wave Soldering

250°C for 3 secs

ESD Protection, R = 1.5 k

, C = 100 pF

VZ = 1 kV (each pin)

Note:

1. Maximum Voltage is with no LEDs illuminated.

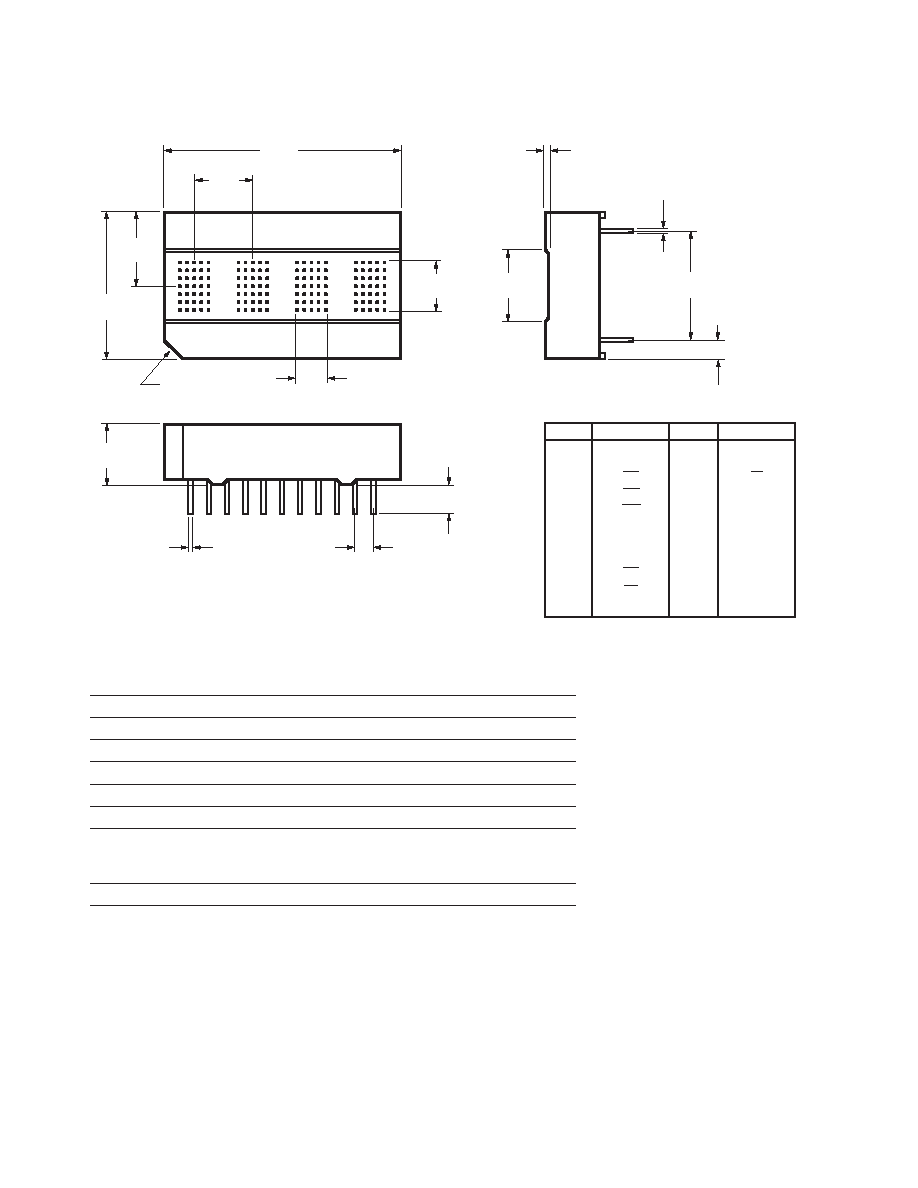

Package Dimensions

Notes:

1. Unless otherwise specified, the tolerance on all dimensions is ± 0.254 mm (0.010).

2. All dimensions are in millimeters (inches).

32.77

(1.290)

8.26

(0.325)

10.03

(0.395)

20.07

(0.790)

6.86

(0.270)

4.45

(0.175)

0.51

(0.020)

TYP.

8.64

(0.340)

2.54

(0.100)

TYP.

4.06

(0.160)

10.16

(0.400)

2.41

(0.095)

TYP.

0.38

(0.015)

15.24

(0.600)

0.25

(0.010)

TYP.

PIN 1 IDENTIFIER

PIN NO.

FUNCTION

PIN NO.

FUNCTION

NO CONNECT

CE1

CE2

CLR

VDD

CUE

GROUND

NO CONNECT
