PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

VIP2

VIP1

VIN1

VIN2

VOP

ENBL

VON

VCOM

NOTES

1. EXPOSED PADDLE IS INTERNALLY

CONNECT TO GND AND MUST BE

SOLDERED TO A LOW IMPEDANCE

GROUND PLANE.

TOP

VIEW

ADL5565

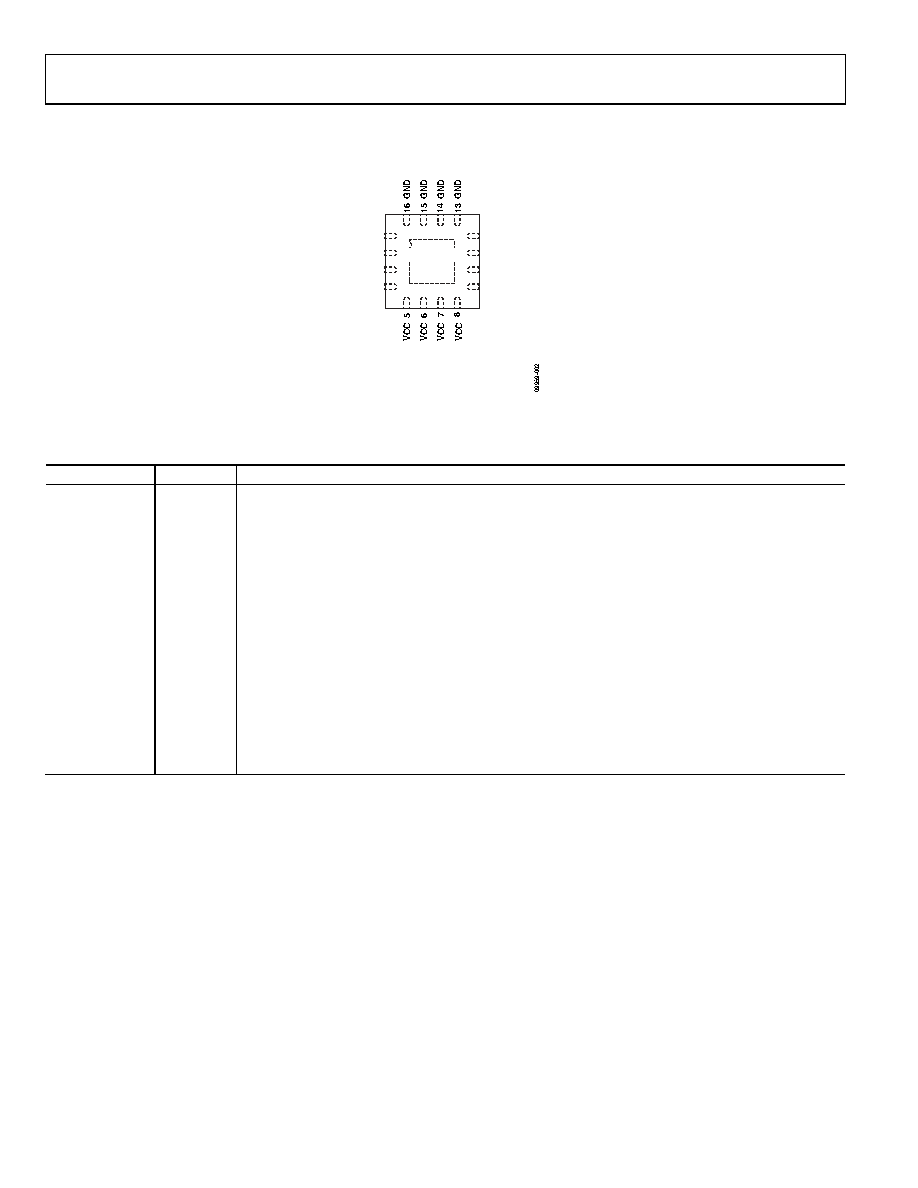

Figure 2. Pin Configuration

Table 5. Pin Function Descriptions

Pin No.

Mnemonic

Description

VIP2

Balanced Differential Input. Biased to VCOM, typically ac-coupled. Input for AV = 12 dB gain, strapped to

VIP1 for AV = 15.5 dB.

VIP1

Balanced Differential Input. Biased to VCOM, typically ac-coupled. Input for AV = 6 dB gain, strapped to

VIP2 for AV = 15.5 dB.

VIN1

Balanced Differential Input. Biased to VCOM, typically ac-coupled. Input for AV = 6 dB gain, strapped to

VIN2 for AV = 15.5 dB.

VIN2

Balanced Differential Input. Biased to VCOM, typically ac-coupled. Input for AV = 12 dB gain, strapped to

VIN1 for AV = 15.5 dB.

5, 6, 7, 8

VCC

Positive Supply.

VCOM

Common-Mode Voltage. A voltage applied to this pin sets the common-mode voltage of the input and

output. Typically decoupled to ground with a 0.1 µF capacitor. With no reference applied, input and

output common mode floats to midsupply (VCC/2).

VON

Balanced Differential Output. Biased to VCOM, typically ac-coupled.

VOP

Balanced Differential Output. Biased to VCOM, typically ac-coupled.

ENBL

Enable. Apply positive voltage (1.3 V < ENBL < VCC) to activate device.

13, 14, 15, 16,

Exposed Paddle

GND

Ground. Exposed paddle is internally connected to GND and must be soldered to a low impedance

ground plane.
