The Engineering Specification for

RL3264L4-9-XXXX-XNH

PAGE

4

OF

6

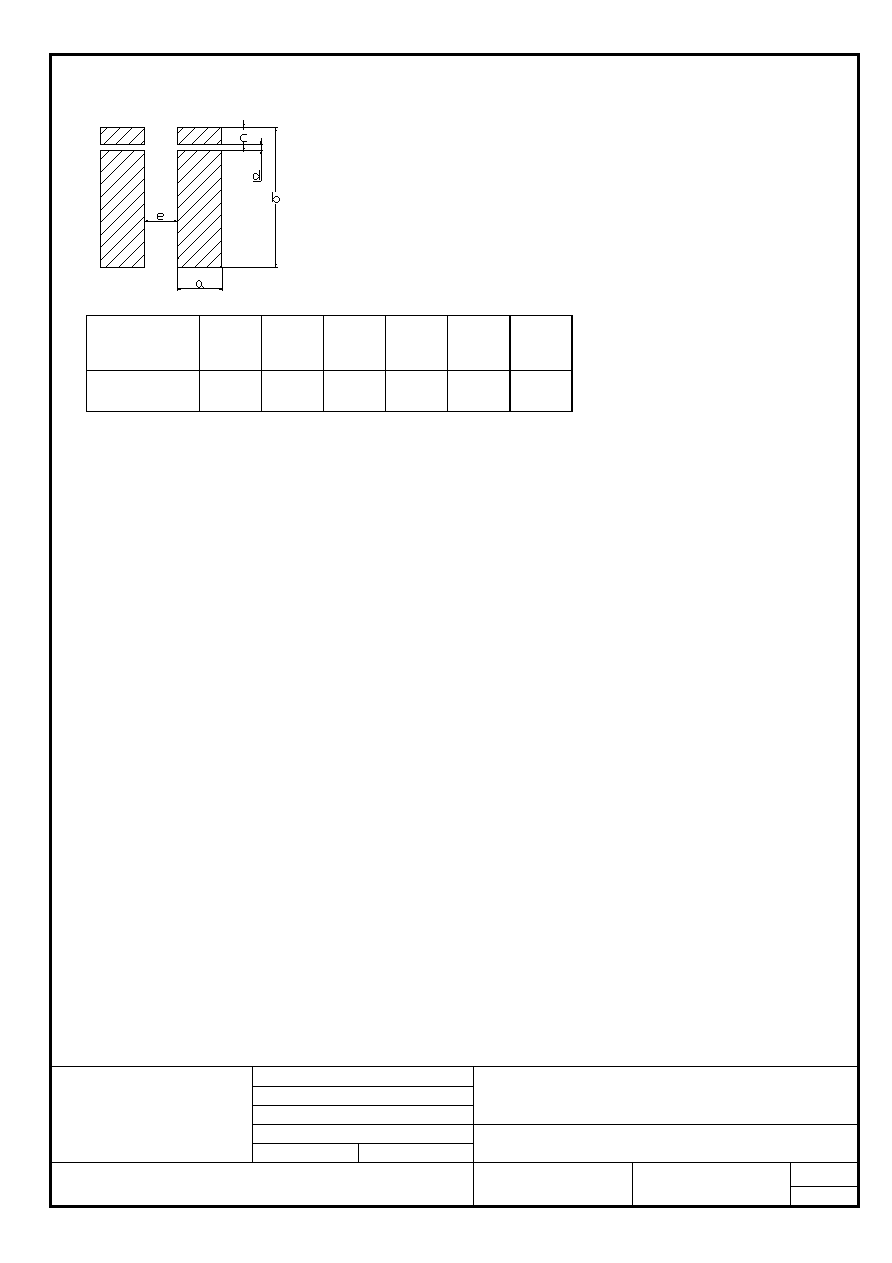

6. Recommended Solder Pad Dimensions

RL3264L4

a

(mm)

b

(mm)

c

(mm)

d

(mm)

e

(mm)

t

(μm)

1~20(m

Ω)

1.1

7.34

1.74

0.8

1.8

105

t: Copper foil minimum thickness of PCB

Note : We recommend there is no circuit design between pads to avoid circuit short
