DATASHEET | JULY 2013

FIBER OPTICS

| REV 2013.07

Information contained herein is deemed reliable and accurate as of the issue date. EMCORE reserves the right to change the design or specification at any time without notice.

RF & Optical Characteristics

Parameter

Min

Typ

Max

Units

Transmitter Optical Output Power

+2.0

+3.0

+4.0

dBm

Receiver Optical Input Power

-9.0

-

+4.0

dBm

Optical Loss Range

0

-

12

dB

Operating Wavelength

1290

1310

1330

nm

Lower Bandwidth

-

-

5

MHz

Upper Bandwidth

350

400

-

MHz

RF Impedance

-

75

-

Ohms

0 dB Optical Loss

-

+24

-

dB

10 dB Optical Loss

-

+4

-

dB

Composite Triple Beat (CTB)

-

-63

-57

dBc

Composite Second Order (CSO)

-

-70

-65

dBc

Carrier-to-Noise Ratio

See Graph

dB

System performance specifications indicated for use with 9/125 µm singlemode fiber.

Electrical Characteristics

Parameter

Min

Typ

Max

Units

Power Supply Voltage

+9

VDC

Transmitter Power Supply Current

-

205

260

mA

Receiver Power Supply Current

-

95

150

mA

Physical Characteristics

Parameter

Min

Typ

Max

Units

Weight (Stand-Alone Tx/Rx)

-

6

170

-

oz.

g

Dimensions (Stand-Alone Tx/Rx)

-

5.75 x 2.95 x 1.143

146 x 75 x 29

-

in

mm

Environmental Characteristics

Parameter

Min

Typ

Max

Units

Operating Temperature Range

+10

-

+40

Storage Temperature Range

-20

-

+70

Relative Humidity

0

-

95

%

2802 PRO 10 Channel Singlemode

CATV VSB/AM Video Link

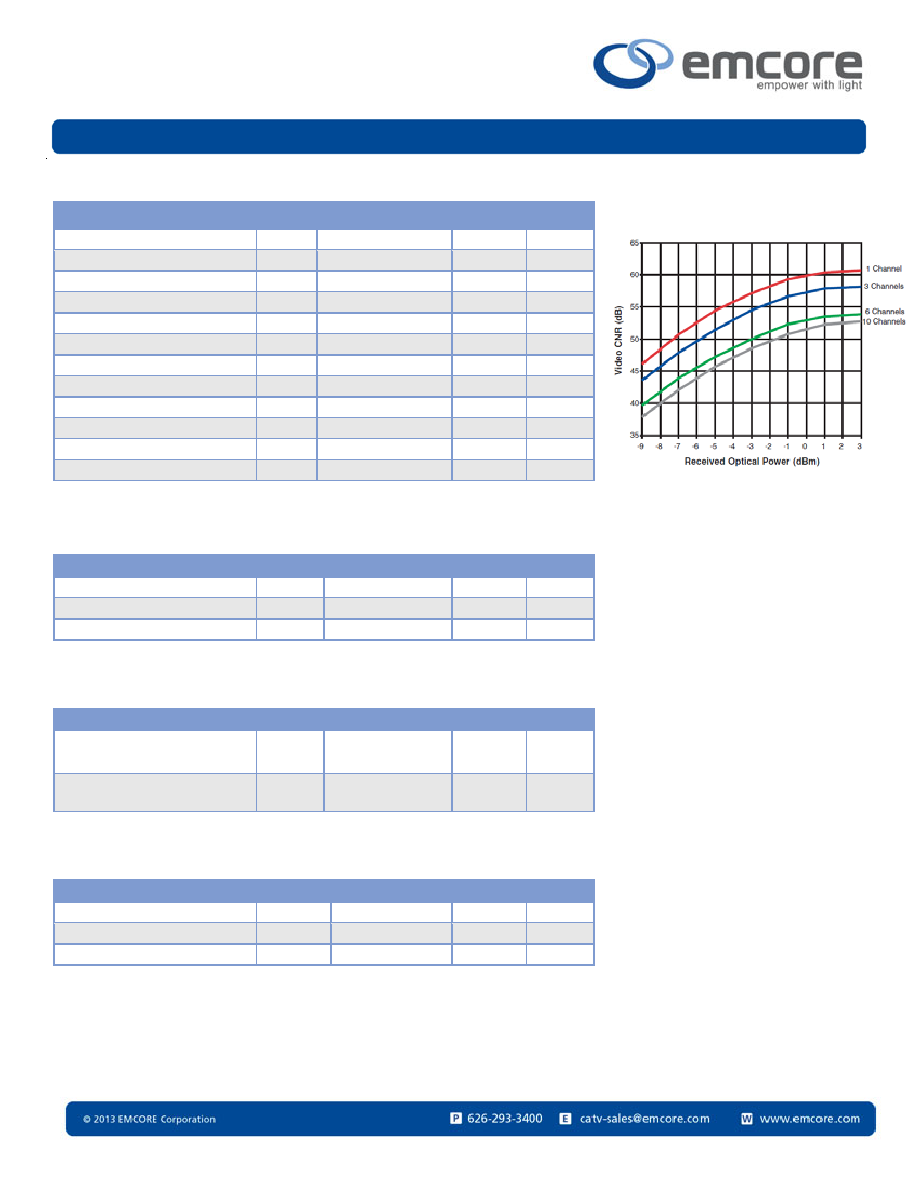

Carrier-to-Noise Performance:
