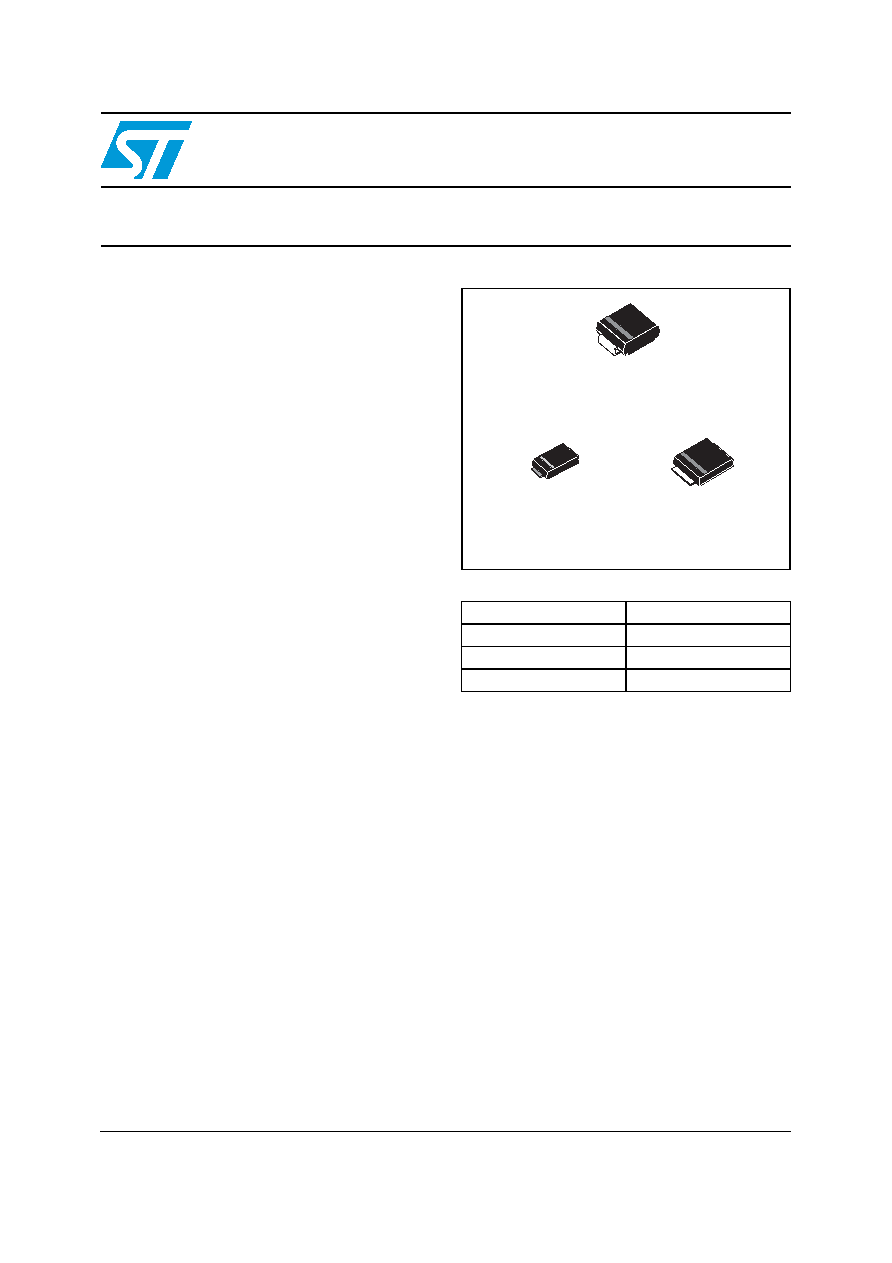

STPS2L40

Low drop power Schottky rectifier

Features

■ Very small conduction losses

■ Negligible switching losses

■ Low forward voltage drop

■ Surface mount miniature package

■ Avalanche capability specified

■ ECOPACK2

® halogen-free component

(SMAflat and SMBflat)

Description

Single chip Schottky rectifiers suited to Switched

Mode Power Supplies and high frequency DC to

DC converters.

Packaged in SMB, low profile SMB and low profile

SMA, this device is especially intended for surface

mounting and used in low voltage, high frequency

inverters, free wheeling and polarity protection

applications.

Table 1.

Device summary

IF(AV)

2 A

VRRM

40 V

Tj (max)

150 °C

VF(max)

0.34 V

K

A

K

A

K

A

SMB

STPS2L40U

SMBflat

STPS2L40UF

SMAflat

STPS2L40AF
