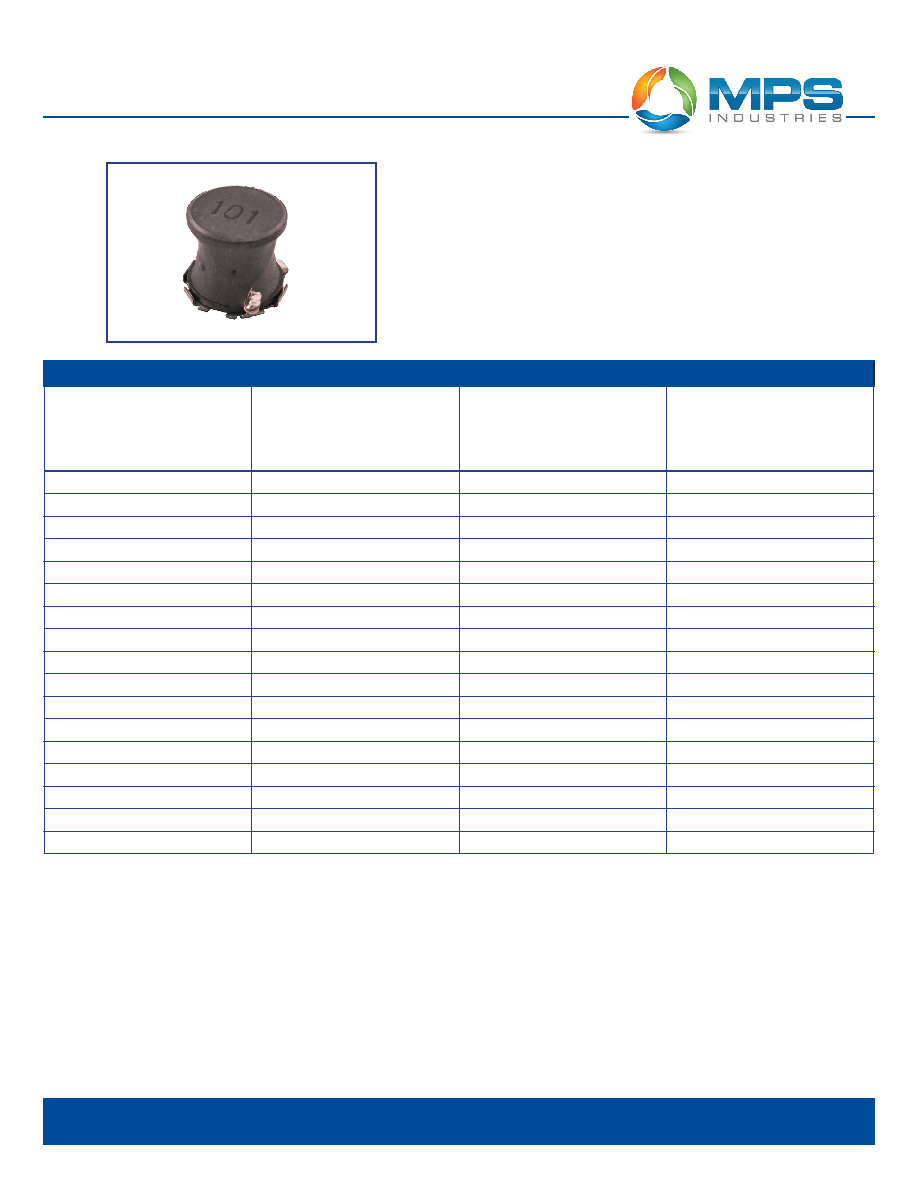

PSF109 SERIES

• Magnetic shielding using magnetic epoxy resin results in lower

costs as compared to traditional ferrite shielded inductors

• Size: 10.5mm length x 10.3mm width x 10.0mm height

• Operating Temperature -40ºC to +120ºC

• RoHS Compliant Product

• Custom Design Available

ELECTRICAL PARAMETERS @ 25°C

Part Number

PSF109-

INDUCTANCE

(μH)

±20%

Isat

(Adc)

MAX

DCR

(Ω)

MAX

101M

100

1.54

0.19

121M

120

1.14

0.20

151M

150

1.02

0.22

181M

180

0.94

0.25

221M

220

0.86

0.27

271M

270

0.78

0.39

331M

330

0.72

0.49

391M

390

0.66

0.54

471M

470

0.58

0.68

561M

560

0.52

0.86

681M

680

0.47

1.00

821M

820

0.45

1.10

102M

1000

0.40

1.43

122M

1200

0.37

1.60

152M

1500

0.34

2.10

182M

1800

0.30

2.30

222M

2200

0.20

2.40

Note:

1.

Inductance measured at 100KHz, 1Vrms

2.

Isat: ∆L drops 30% max from its initial value

Productperformanceislimitedtospecifiedparameters.Dataissubjecttochangewithoutpriornotice.

MAGNETIC EPOXY SHIELDED

SMT POWER INDUCTOR
