Application information
LED2001
32/42
DocID024346 Rev 1

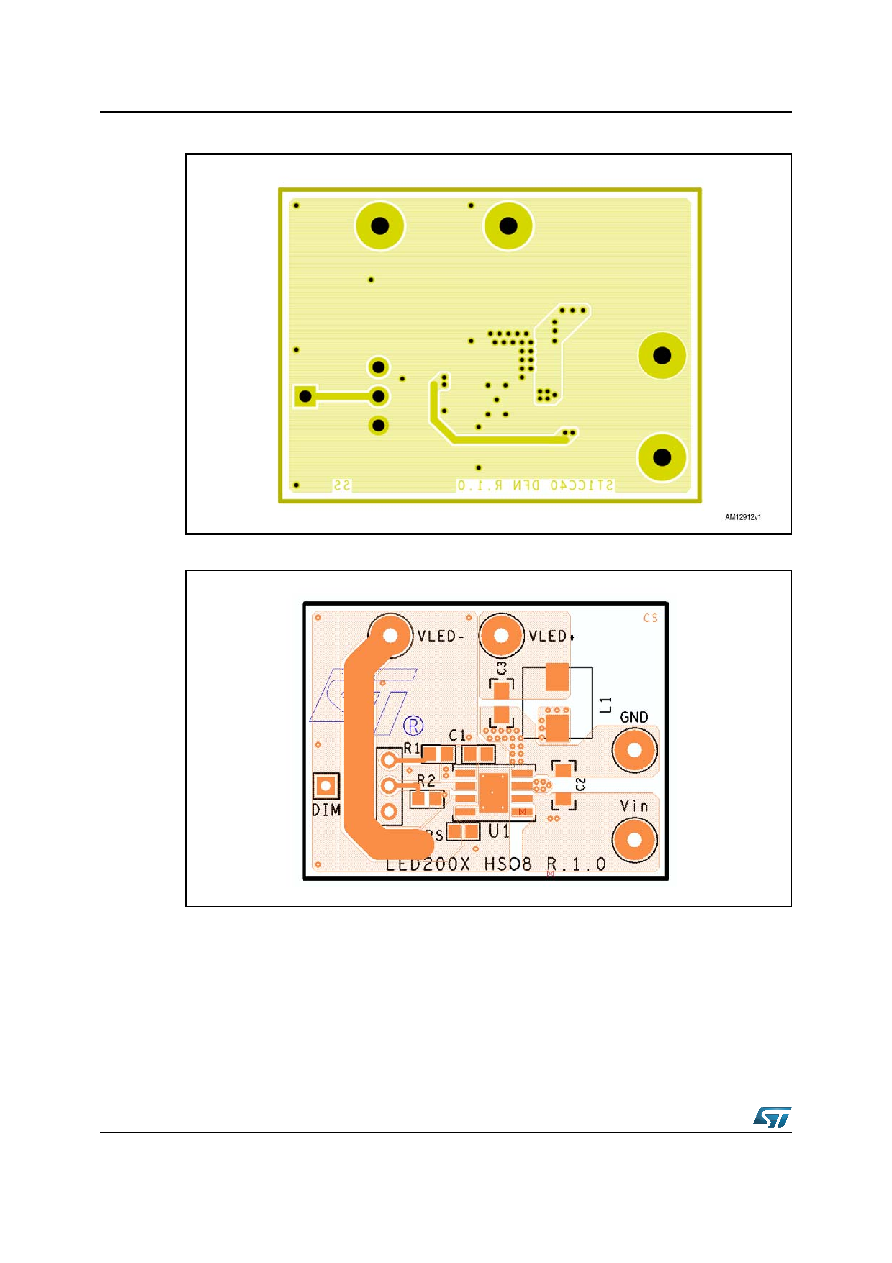

Figure 21. PCB layout (bottom side) DFN package
Figure 22. PCB layout (component side) HSOP8 package
It is strongly recommended that the input capacitors are to be put as close as possible to the
pins, see C1 and C2.
