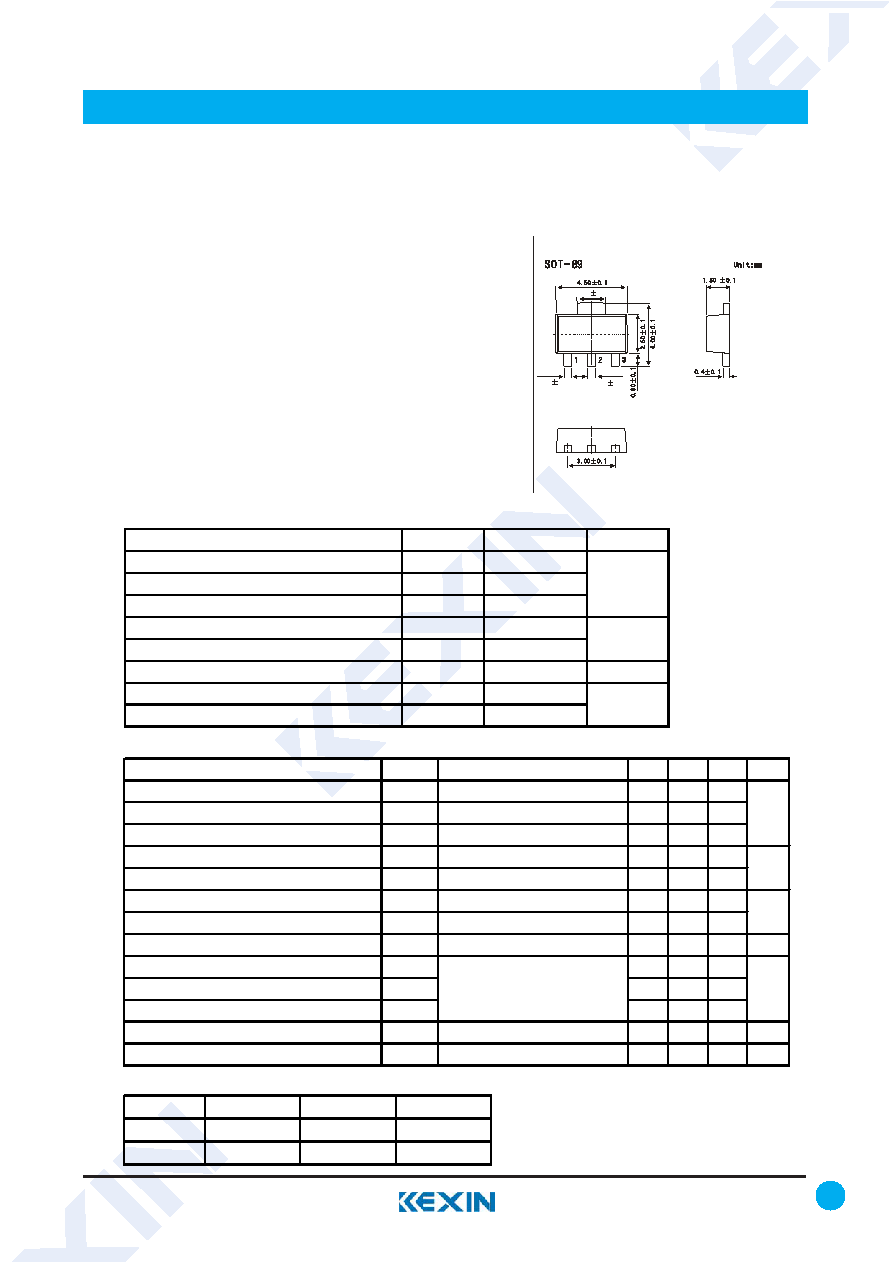

SMD Type

www.kexin.com.cn

1

Transistors

NPN Transistors

2SC3645

■

Features

●

High breakdown voltage

●

Excellent linearity of hFE and small Cob.

●

Fast switching speed.

●

Small Package For Mounting

●

Complementary to 2SA1415

1.Base

2.Collector

3.Emitter

1.70 0.1

0.42 0.1

0.46 0.1

■

Absolute Maximum Ratings Ta = 25℃

Parameter

Symbol

Rating

Unit

Collector - Base Voltage

VCBO

180

Collector - Emitter Voltage

VCEO

160

Emitter - Base Voltage

VEBO

5

Collector Current - Continuous

IC

140

Peak Collector Current

ICM

200

Collector Power Dissipation

PC

500

mW

Junction Temperature

TJ

150

Storage Temperature Range

Tstg

-55 to 150

V

℃

mA

■

Electrical Characteristics Ta = 25℃

Parameter

Symbol

Test Conditions

Min

Typ

Max

Unit

Collector- base breakdown voltage

VCBO

Ic= 100 μA， IE= 0

180

Collector- emitter breakdown voltage

VCEO

Ic= 1 mA，IB= 0

160

Emitter - base breakdown voltage

VEBO

IE= 100μA， IC= 0

5

Collector-base cut-off current

ICBO

VCB= 80 V , IE= 0

0.1

Emitter cut-off current

IEBO

VEB= 4V , IC=0

0.1

Collector-emitter saturation voltage

VCE(sat) IC=50 mA, IB=5mA

0.07

0.3

Base - emitter saturation voltage

VBE(sat) IC=50 mA, IB=5mA

1.2

DC current gain

hFE

VCE= 5V, IC= 10mA

100

400

Turn-ON Time

ton

0.1

Storage Time

tstg

1.5

Fall Time

tf

0.1

Collector output capacitance

Cob

VCB= 10V,f=1MHz

3

pF

Transition frequency

fT

VCE= 10V, IC= 10mA

150

MHz

V

uA

V

See sepcified Test Circuit.

us

■

Classification of hfe

Type

2SC3645-R

2SC3645-T

Range

100-200

140-280

200-400

Marking

CAR

CAS

CAT
