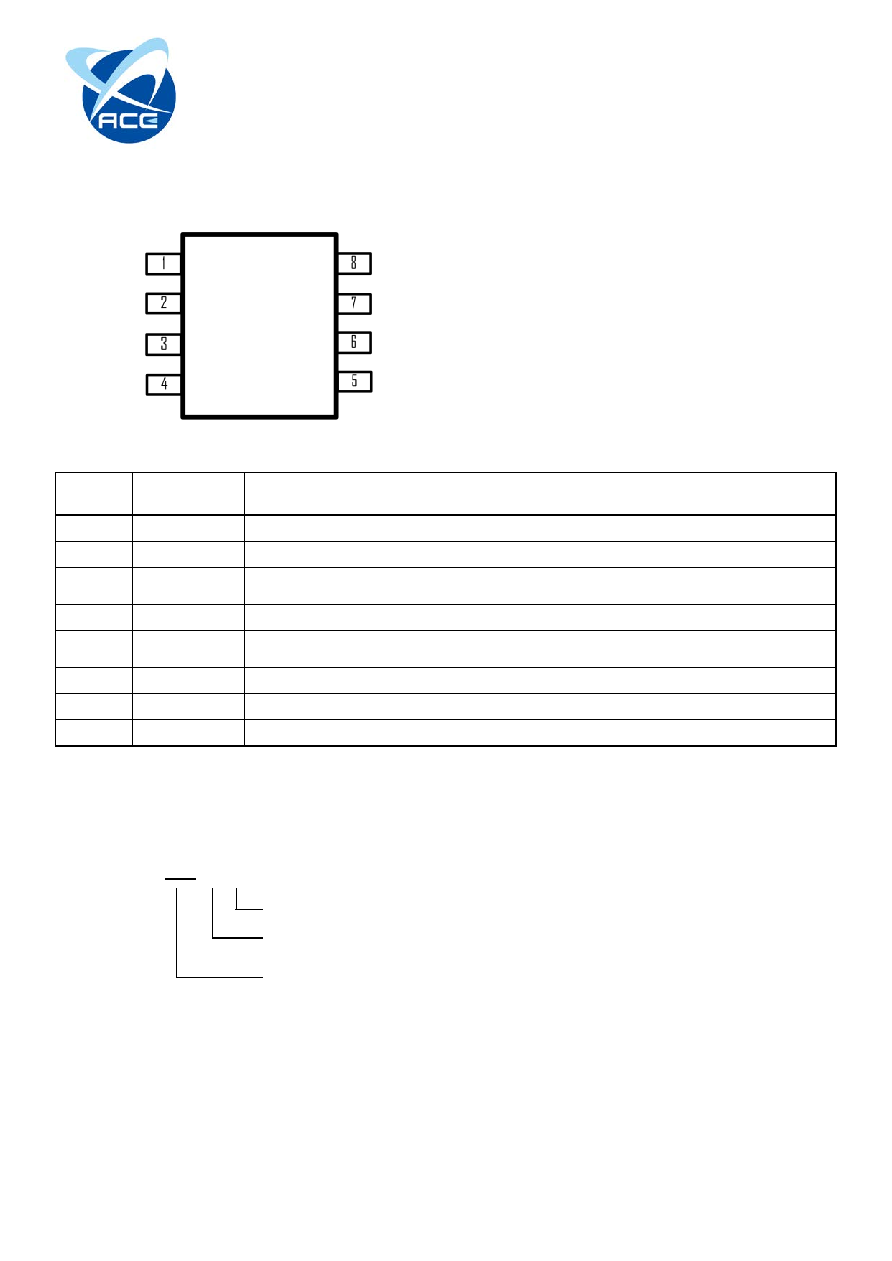

background image
ACE740E
4A, 18V High Efficiency Synchronous Step-Down Converter
VER 1.1
2
Packaging Type
BST
SS
IN
EN
SW
COMP
GND
FB
ESOP8
Ordering information
ACE740E XX
+
H
ESOP-8
Description
Function
1
BST
Bootstrap pin. Connect a 10nF capacitor from this pin to SW
2
IN
Supply Voltage. Bypass
with a 22μF ceramic capacitor to GND
3
SW
Inductor Connection. Connect an inductor Between SW and the regulator
output.
4
GND
Ground
5
FB
Feedback Input. Connect an external resistor divider from the output to FB and
GND to set VOUT
6
COMP
Regulator Compensation. Connect series RC network to GND.
7
EN
Enable pin for the IC. Drive this pin to high to enable the part, low to disable.
8
SS
Soft start pin. Connect a 0.1 uF capacitor from this pin to GND
IM : ESOP-8
Pb - free
Halogen - free
