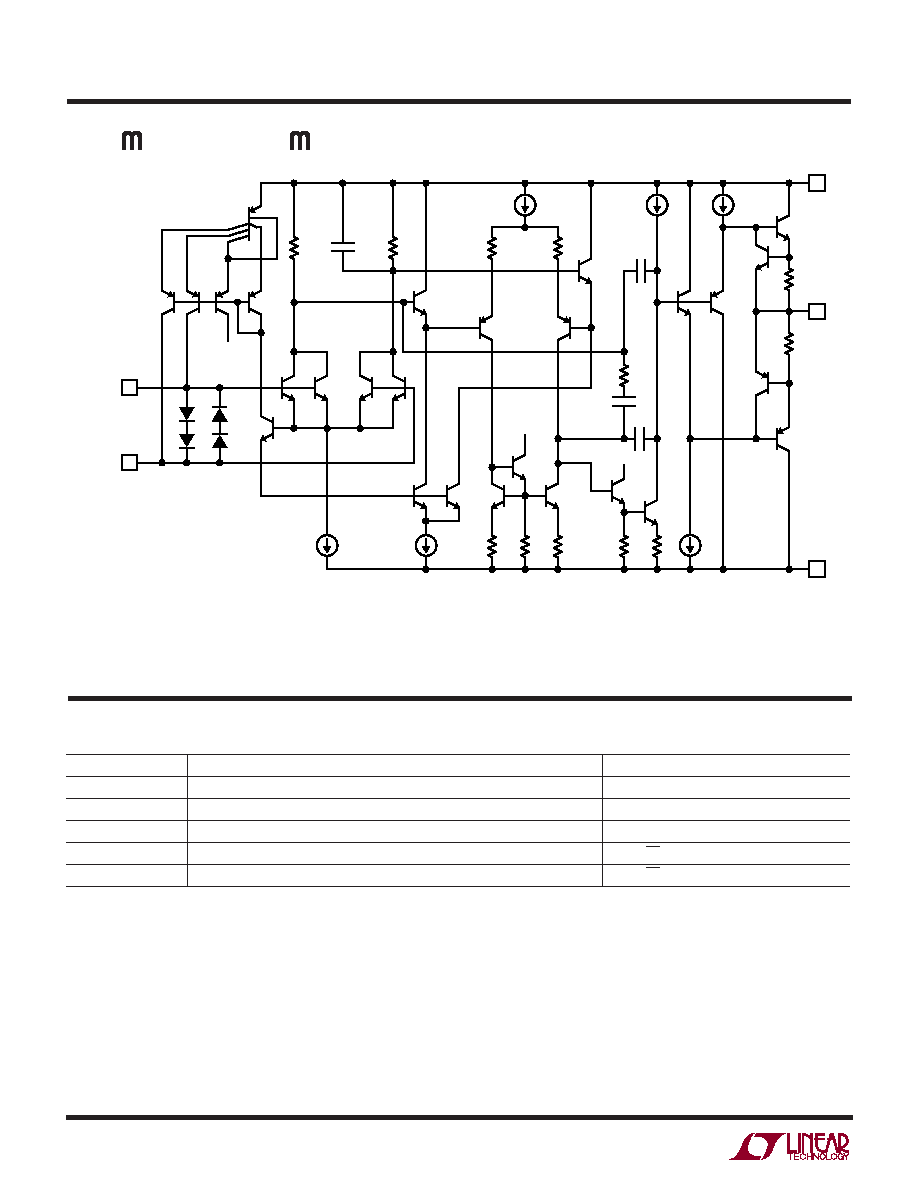

LT1126/LT1127
11267fa
1126-7 SS01
200
µA
100
µA
200
6k
200
6k
50
200
µA
V –
100
µA
V +
OUTPUT
Q12
Q11
Q15
Q16
Q22
Q23
Q24
Q2B
Q1B
Q1A
INVERTING
INPUT (–)
NON-INVERTING
INPUT (+)
Q10
Q3
Q9
Q7
21k
21k
200pF
3.6k
Q17
Q19
Q20
3.6k
Q18
360
µA
V+
V+
20pF
5pF
400
67pF
Q2A
570
µA
Q25
Q26
Q27
20
20
Q30
Q29
Q28
V –
Q13
Q8
©LINEAR TECHNOLOGY CORPORATION 1992
S
A
CHE
TI
I
CD AGRA
(1/2 LT1126, 1/4 LT1127)
Linear Technology Corporation
1630 McCarthy Blvd., Milpitas, CA 95035-7417
(408) 432-1900 ● FAX: (408) 434-0507 ● www.linear.com
LT/LT 0705 REV A • PRINTED IN USA
RELATED PARTS
PART NUMBER
DESCRIPTION
COMMENTS
LT1124/LT1125
Dual/Quad Low Noise High Speed Precision Op Amps
Unity Gain Stable
LT1037
Low Noise, High Speed Precision Op Amps
60MHz GBW, 11V/
µs Slew Rate
LT1678/LT1679
Dual/Quad Low Noise Rail-to-Rail Precision Op Amps
20MHz GBW, 100
µV VOS
LT1028
Ultralow Noise Precision High Speed Op Amps
1.1nV/
√Hz Max, 0.85 µV/Hz Typ
LT6230
215MHz, Rail-to-Rail Output Low Noise Op Amps
1.1nV/
√Hz, 3.5mA Supply Current
