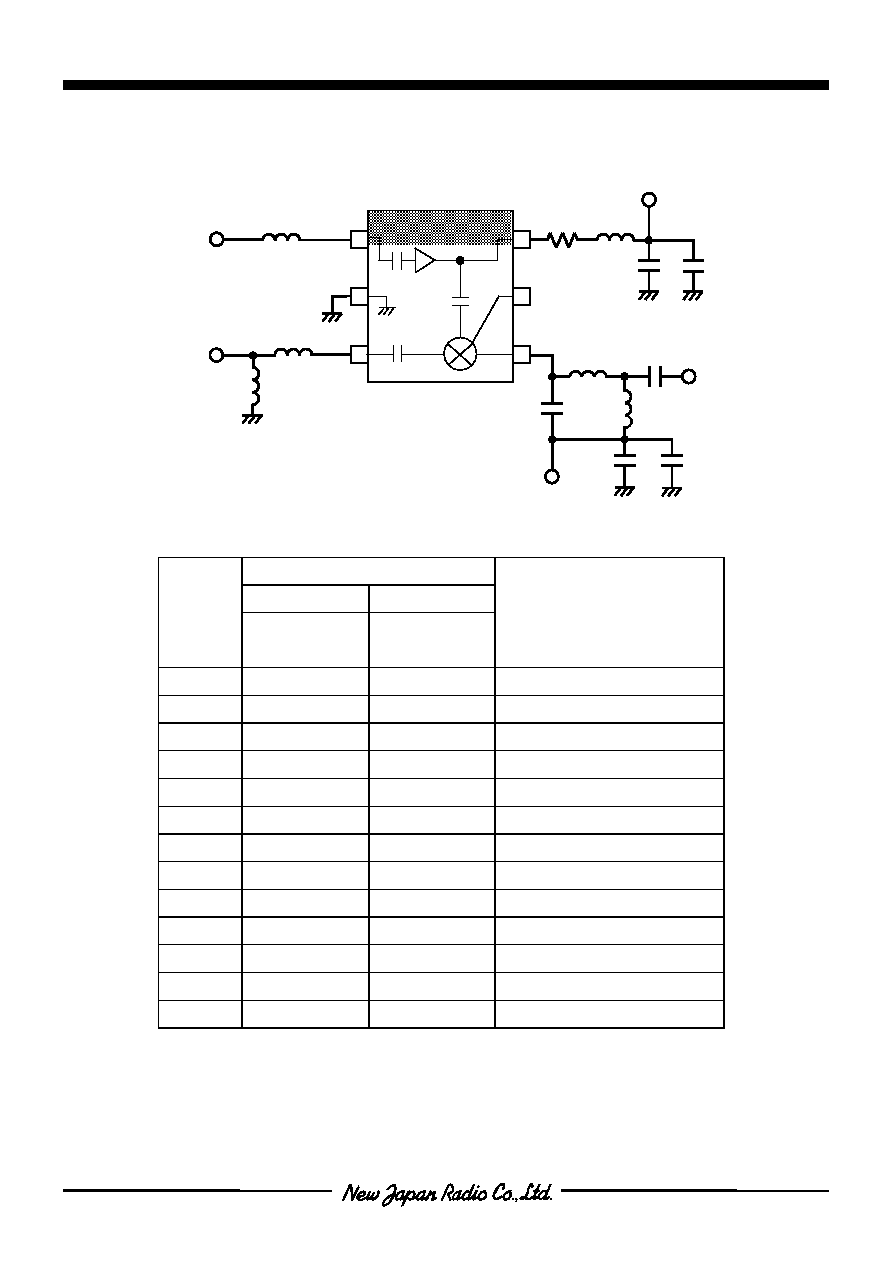

NJG1555KB2
- 8 -
nAPPLICATION CIRCUIT
800MHz Band
Lower LOCAL
Upper LOCAL
PARTS
ID
fLO=690MHz
fIF=130MHz
fLO=950MHz
fIF=130MHz
COMMENT
L1
15nH
15nH
TAIYO-YUDEN (HK1005)
L2
3.9nH
3.9nH
TAIYO-YUDEN (HK1005)
L3
47nH
27nH
TAIYO-YUDEN (HK1005)
L4
39nH
22nH
TAIYO-YUDEN (HK1005)
L5
120nH
120nH
TAIYO-YUDEN (HK1608)
L6
56nH
56nH
TAIYO-YUDEN (HK1005)
C1
100pF
100pF
MURATA (GRM36)
C2
1000pF
1000pF
MURATA (GRM36)
C3
9pF
9pF
MURATA (GRM36)
C4
1000pF
1000pF
MURATA (GRM36)
C5
10pF
10pF
MURATA (GRM36)
C6
1000pF
1000pF
MURATA (GRM36)
R1
27
Ω
22
Ω
1005 Size
PARTS LIST
1
2
3
4
5
6
LOIN
RFIN
GND
BPC
IFOUT
VLO
LOCAL IN
RF IN
IF OUT
VLO
VMIX
Z0=50
Ω
Z0=50
Ω
Z0=50
Ω
L1
L2
L3
L4
L5
L6
C1
C3
C4
C6
R1
C2
C5
