CONMCX005-R178 Scheda tecnica(PDF) 1 Page - List of Unclassifed Manufacturers |
|
|
|||||||||||||||||||||||||||||
CONMCX005-R178 Scheda tecnica(HTML) 1 Page - List of Unclassifed Manufacturers |
|
|

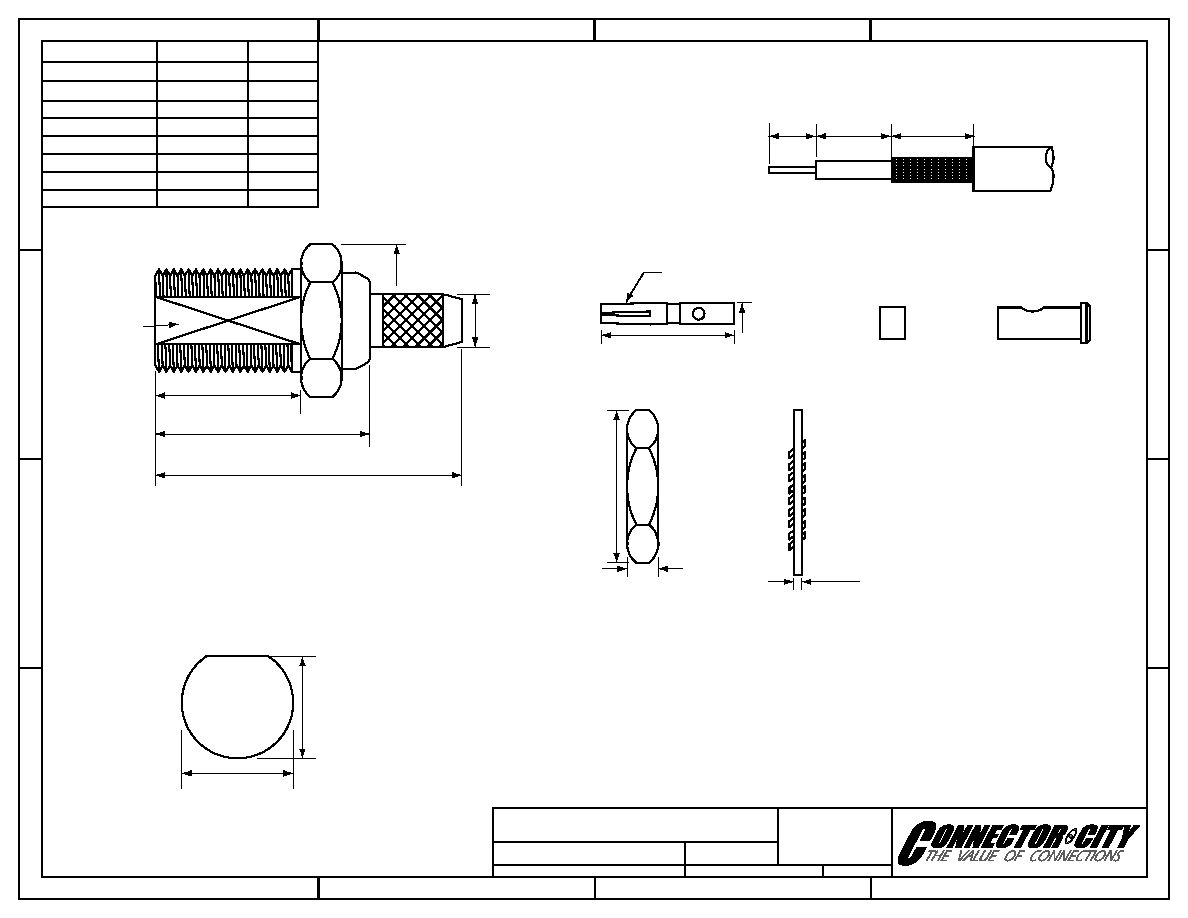

1 / 1 page  A B C D 4 3 2 1 D C B A 1 2 4 3 Description Material Finish Body Socket Insulation Gold Teflon Gold Teflon Brass BE CU CONNECTOR CITY 159 ORT LANE MERLIN, OR 97532 PH (541)-471-6256 FAX (541)-471-6251 Date: Sheet 1 of 1 Revision: Title Part No. Dimensions: MCX FEMALE BULKHEAD MOUNT CABLE END CRIMP FOR RG178 CABLE CONMCX005-R178 1.0 INCHES (mm) 6/7/2006 0.228 (5.80) 0.020 (0.50) RECOMMENDED CABLE STRIPPING DIMENSIONS 0.141 (3.60) RG-178 Cable 0.055 (1.40) 10-56 UNS-2A THREADS H0.250 (6.35) 0.020 (0.50) Ø0.037 (0.95) 0.244 (6.20) PIN CHUCK 0.2x2x2 GROOVE CONMCX005-R178 ASSEMBLY INSTRUCTIONS Ø0.102 (2.60) 0.272 (6.90) 10-56 UNS-2A THREADS H0.250 (6.35) 0.378 (9.60) 0.571 (14.50) FLAT 0.173 (4.40) Crimp Ring Gold Brass Nut Gold Brass Washer Gold Brass 1. Strip the cable to the recommended dimensions. 2. Solder the support onto the braid. 3. Place the spacer onto the center conductor. 4. Solder or crimp the socket onto the center conductor. 5. Insert the socket, center conductor, spacer, and support into the body until the top of the socket is even with the white insulation in the body. 6. Crimp the tail of the body onto the support with a hex crimp tool. SPACER SUPPORT Support Gold Brass Spacer Teflon Teflon SIDE VIEW SOCKET NUT WASHER FLAT 0.173 (4.40) RECOMMENDED MOUNTING HOLE Ø0.187 (4.75) |
