UT3222
Preliminary
CMOS IC
UNISONICTECHNOLOGIESCO.,LTD
3 of 7
www.unisonic.com.tw
QW-R502-986.b
FUNCTION TABLE
For EACH DRIVER
INPUTS (DIN)
INPUTS( PWRDOWN )
OUTPUT DOUT
X
L
Z
L
H
H
H
H
L
For EACH RECEIVER
INPUTS(RIN)
INPUTS ( EN )
OUTPUT ROUT
L
L
H
H
L
L
X
H
Z
OPEN
L
H
H=High Level, L=Low Level, X=Irrelevant, Z=High Impedance (off).
OPEN=Input disconnected or connected driver off.

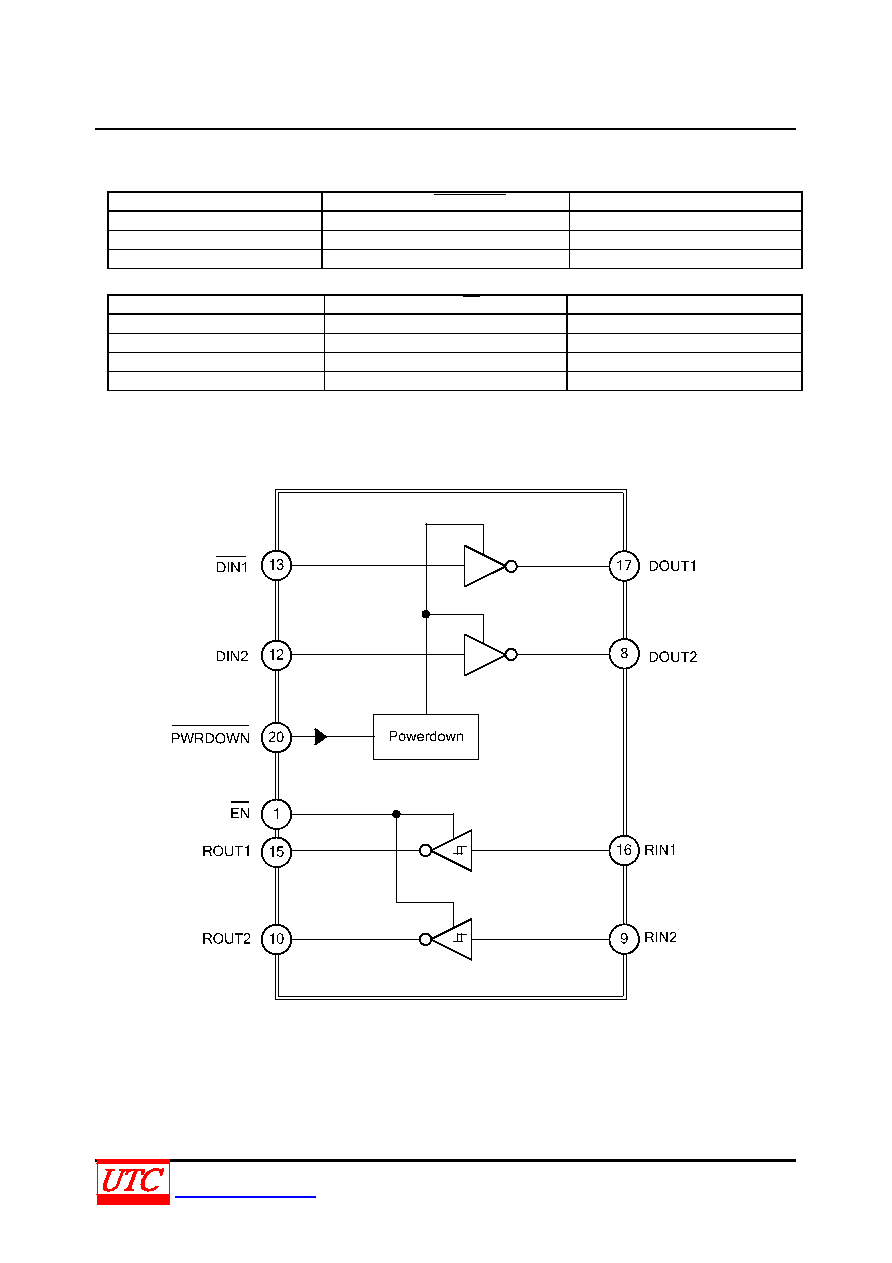

BLOCK DIAGRAM
