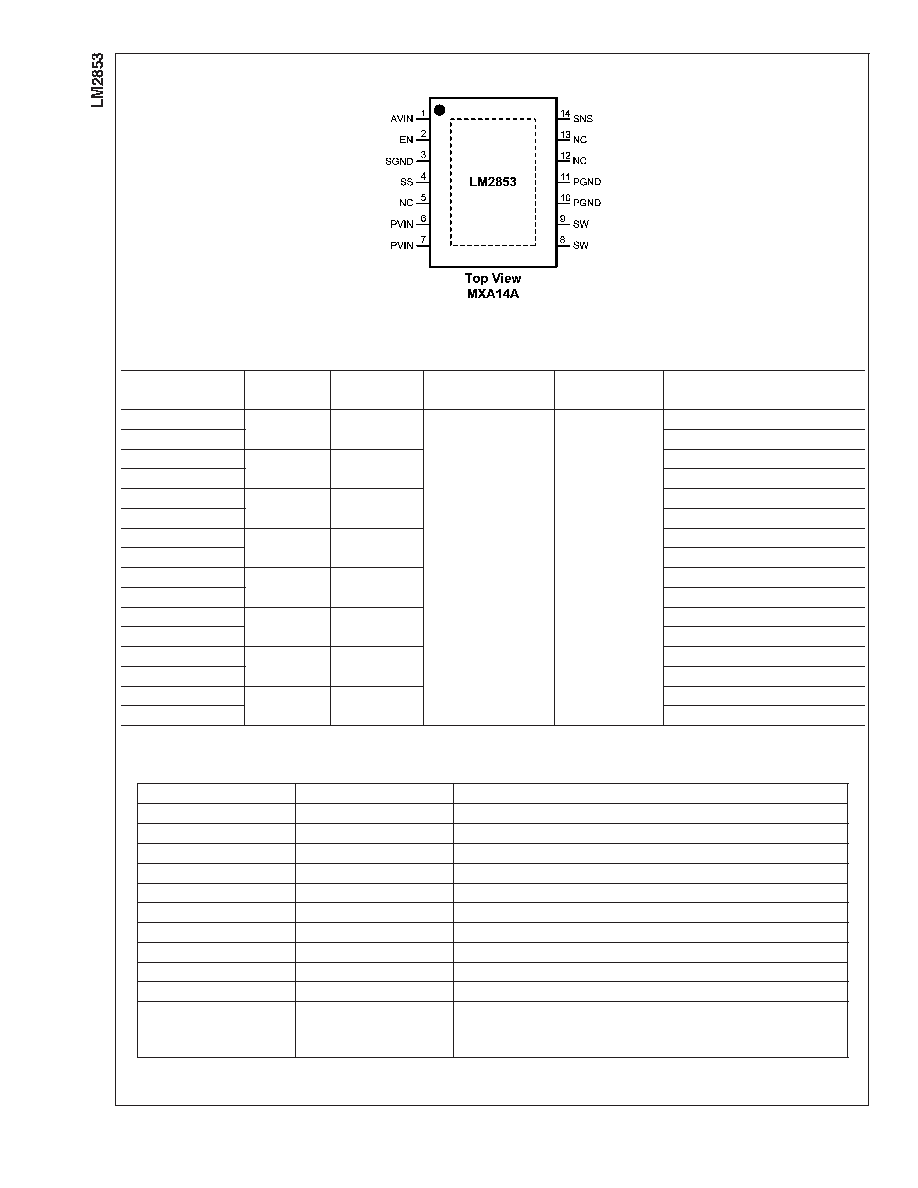

background image
Connection Diagram
20201503
Ordering Information
Order Number
Voltage
Option
Package
Marking
Package Type
Package
Drawing
Supplied As
LM2853MH-0.8
0.8
LM2853-0.8
TSSOP-14 exposed
pad
MXA14A
94 Units, Rail
LM2853MHX-0.8
2500 Units, Tape and Reel
LM2853MH-1.0
1.0
LM2853-1.0
94 Units, Rail
LM2853MHX-1.0
2500 Units, Tape and Reel
LM2853MH-1.2
1.2
LM2853-1.2
94 Units, Rail
LM2853MHX-1.2
2500 Units, Tape and Reel
LM2853MH-1.5
1.5
LM2853-1.5
94 Units, Rail
LM2853MHX-1.5
2500 Units, Tape and Reel
LM2853MH-1.8
1.8
LM2853-1.8
94 Units, Rail
LM2853MHX-1.8
2500 Units, Tape and Reel
LM2853MH-2.5
2.5
LM2853-2.5
94 Units, Rail
LM2853MHX-2.5
2500 Units, Tape and Reel
LM2853MH-3.0
3.0
LM2853-3.0
94 Units, Rail
LM2853MHX-3.0
2500 Units, Tape and Reel
LM2853MH-3.3
3.3
LM2853-3.3
94 Units, Rail
LM2853MHX-3.3
2500 Units, Tape and Reel
Note: Contact factory for other voltage options.
Pin Descriptions
Pin #
Name
Function
1
AVIN
Input Voltage for Control Circuitry.
2
EN
Enable.
3
SGND
Low noise ground.
4
SS
Soft-Start Pin.
5
NC
No Connect. This pin must be tied to ground.
6,7
PVIN
Input Voltage for Power Circuitry.
8,9
SW
Switch Pin.
10,11
PGND
Power Ground.
12,13
NC
No-Connect. These pins must be tied to ground.
14
SNS
Output Voltage Sense Pin.
Exposed Pad
EP
The exposed pad is internally connected to GND, but it cannot be
used as the primary GND connection. The exposed pad should be
soldered to an external GND plane.
www.national.com
2
