AR0134: 1/3-Inch 1.2 Mp CMOS Digital Image Sensor
Two-Wire Serial Register Interface
Sequential WRITE, Start at Random Location
This sequence (Figure 13) starts in the same way as the single WRITE to random location
(Figure 12). Instead of generating a no-acknowledge bit after the first byte of data has
been transferred, the master generates an acknowledge bit and continues to perform
byte WRITEs until “L” bytes have been written. The WRITE is terminated by the master
generating a stop condition.

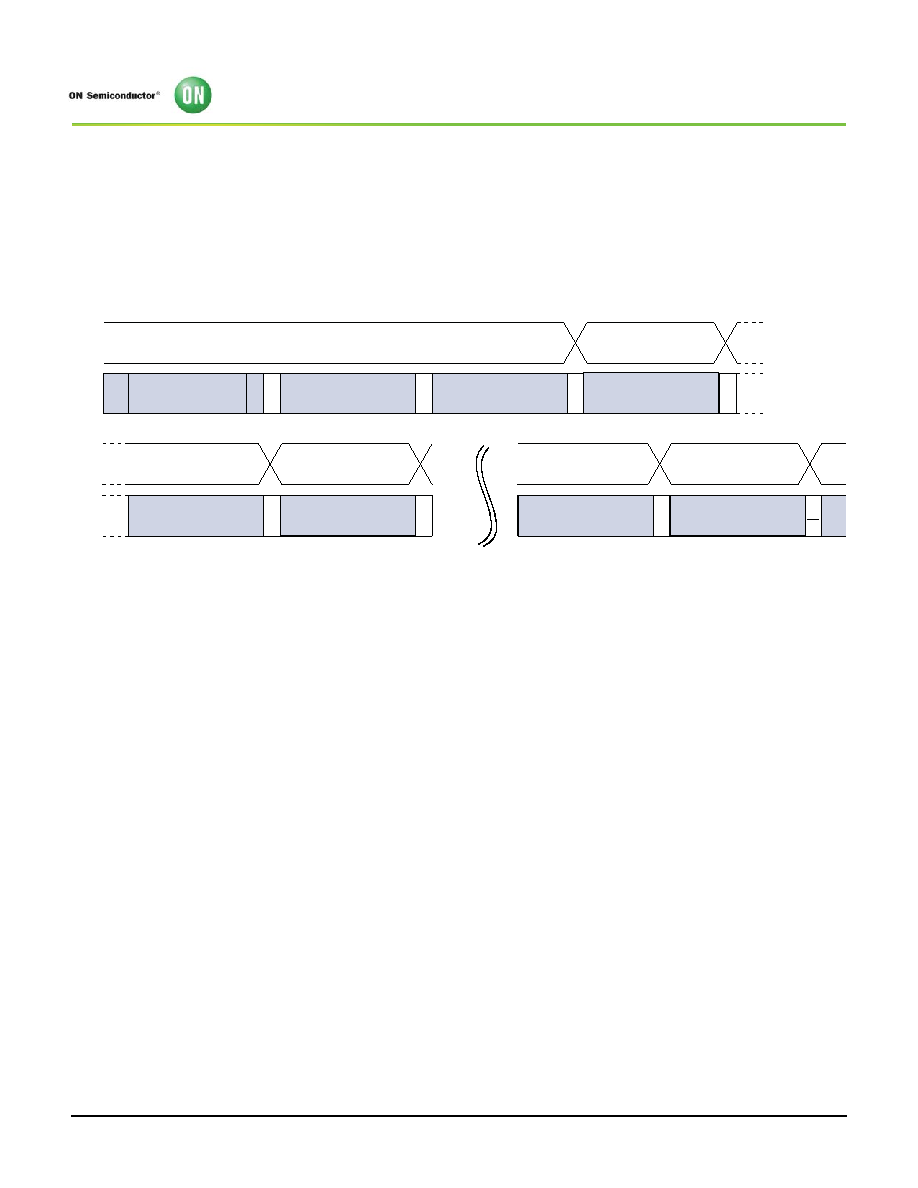

Figure 13:
Sequential WRITE, Start at Random Location
Slave Address
0
S
A Reg Address[15:8]
A
A
Reg Address[7:0]
A
Previous Reg Address, N
Reg Address, M
M+1
M+2
M+1
M+3
A
A
A
M+L-2
M+L-1
M+L
A
A
P
Write Data
Write Data
Write Data
Write Data
Write Data
