Data Sheet
ADL5903
Rev. B | Page 13 of 20

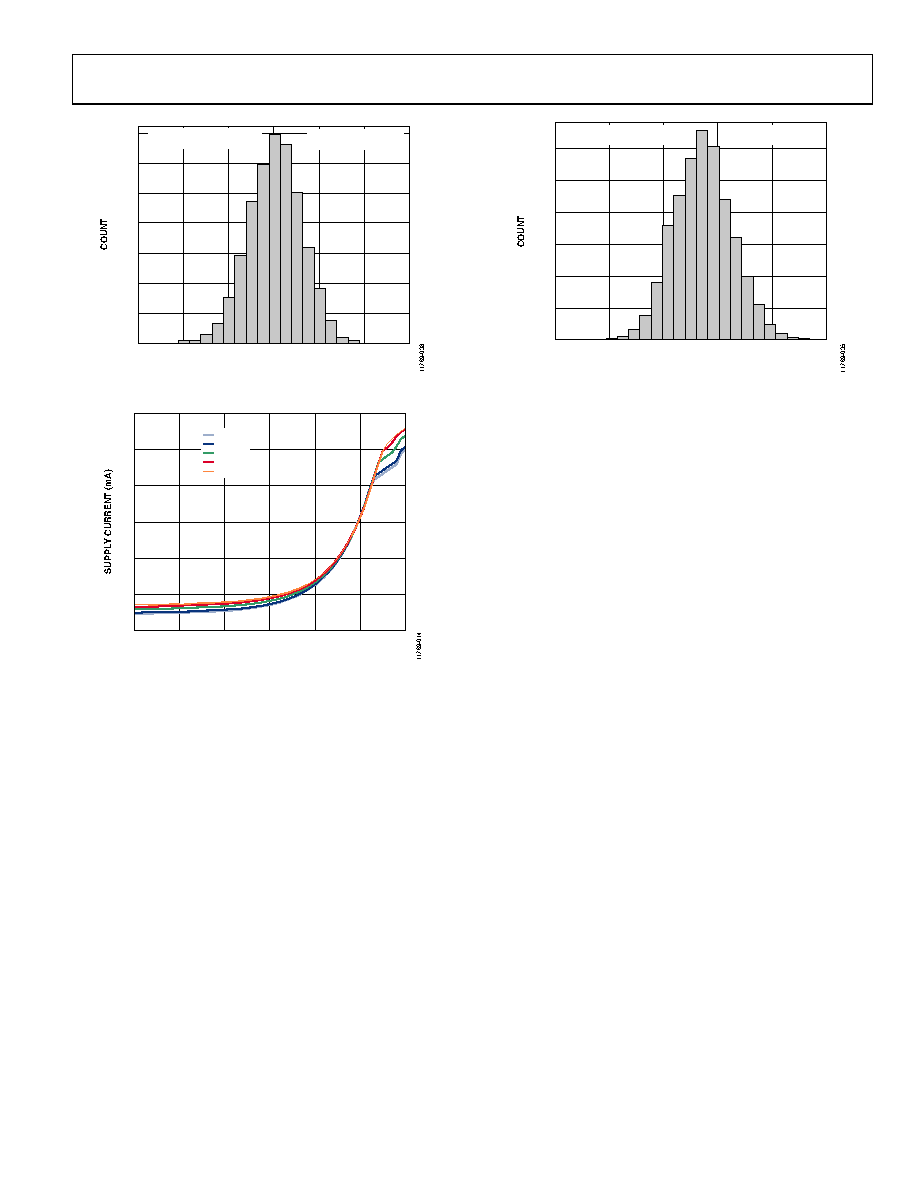

Figure 33. Distribution of Intercept at 900 MHz
Figure 34. Supply Current vs. Input Level
(at −55°C, −40°C, +25°C, +85°C, +125°C)
Figure 35. Distribution of Slope at 900 MHz
–44
–42
–40
–38
–36
–34
–32
0
200
400
600
800
1000
1200
1400
INTERCEPT (dBm)
REPRESENTS MORE
THAN 8000 PARTS
CALIBRATION BETWEEN
–16dBm AND –4dBm
20
10
0
–10
–20
–30
–40
30
25
20
15
10
5
0
PIN (dBm)
–55°C
–40°C
+25°C
+85°C
+125°C
30
32
34
36
38
40
0
200
400
600
800
1000
1200
SLOPE (mV/dB)
REPRESENTS MORE
THAN 8000 PARTS
CALIBRATION BETWEEN
–16dBm AND –4dBm
