L6984
Device description
34

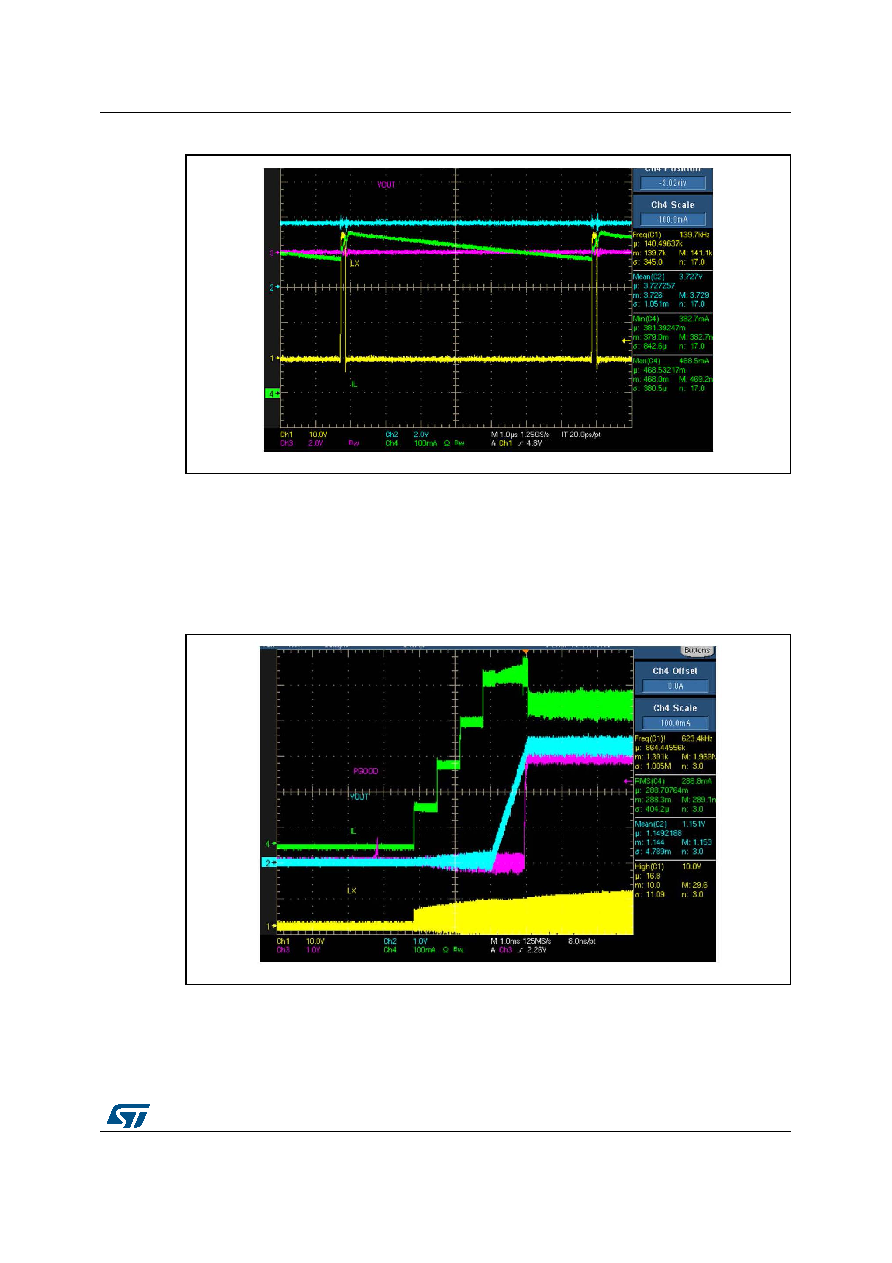

Figure 14. Valley current sense implements constant current protection
3.7
PGOOD
The internal circuitry monitors the regulated output voltage and keeps the PGOOD open
collector output in low impedance as long as the feedback voltage is below the VPGD L
threshold (see Table 5).
Figure 15. PGOOD behavior during soft-start time
The PGOOD is driven low impedance if VFB = VCC (internal voltage divider, see Section 3.1
on page 12) and VBIAS > VPGD H threshold (see Table 5 on page 7).
The VPGD H threshold has no effect on PGOOD behavior in case the external voltage divider
is being used.
