VLB10050 Type

ELECTRICAL CHARACTERISTICS

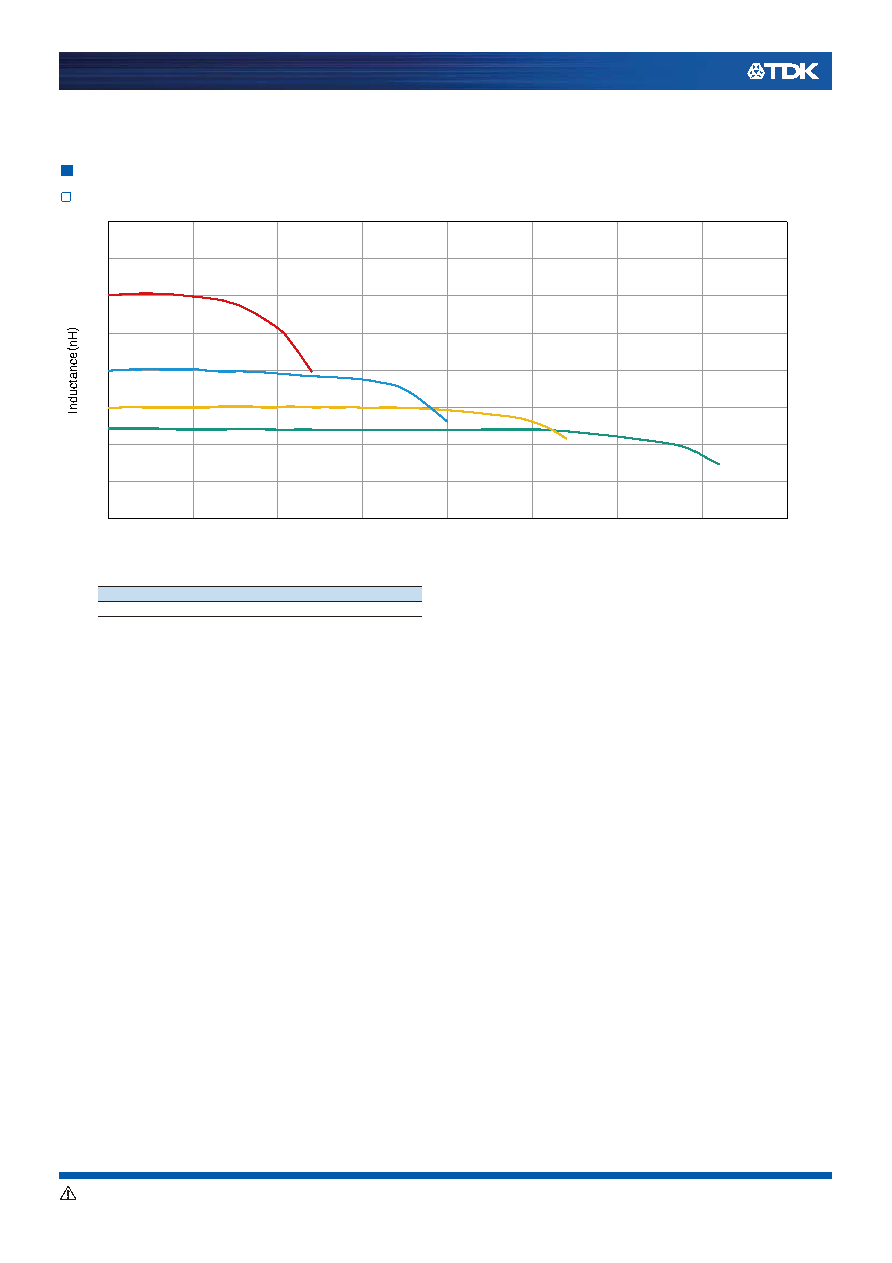

INDUCTANCE VS. DC BIAS CHARACTERISTICS GRAPH

○ Measurement equipment

＊ Equivalent measurement equipment may be used.

0

100

200

300

400

0

50

40

30

20

10

60

80

70

DC current (A)

R12M

R15M

R20M

R30M

Product No.

Manufacturer

3260B+3265B

Wayne Kerr Electronics
