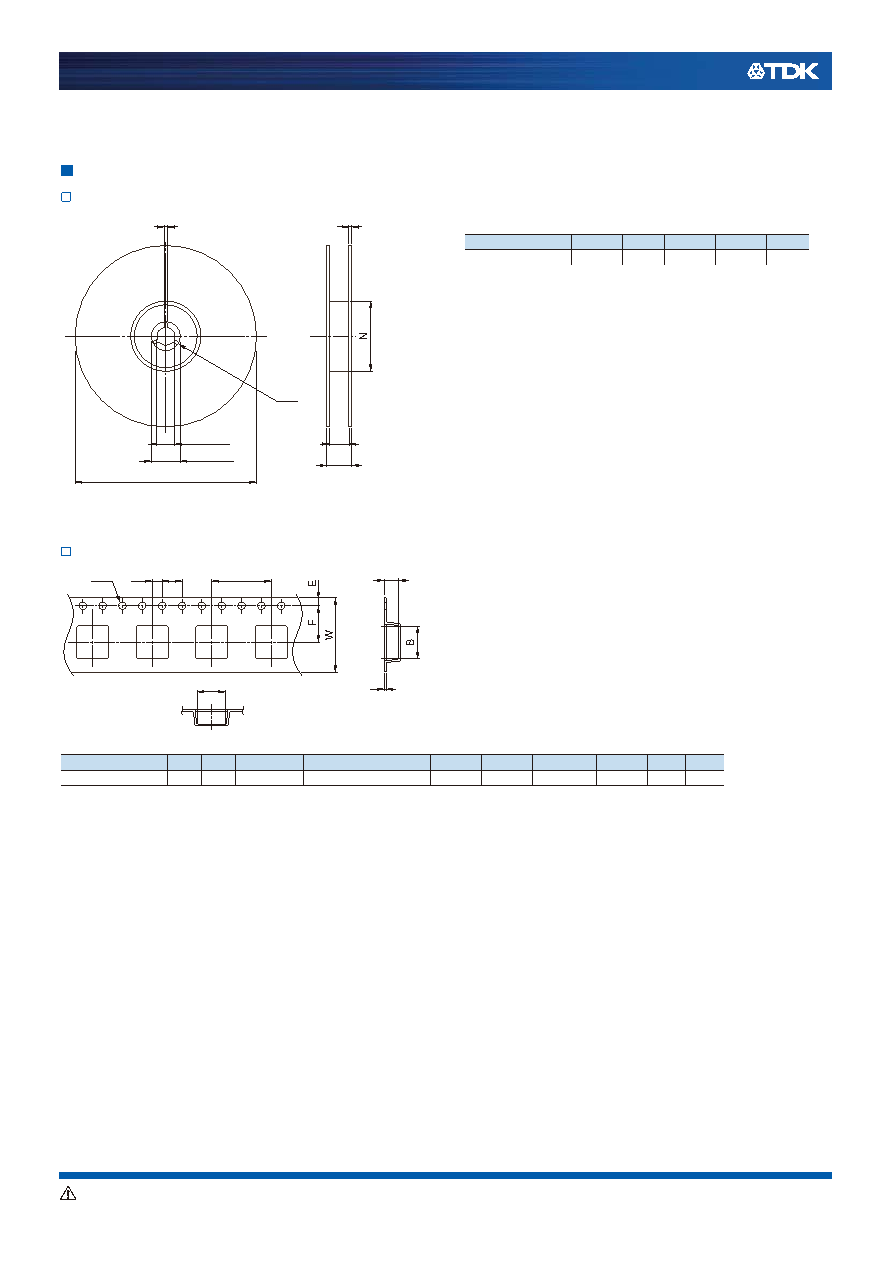

VLS201610CX Type

PACKAGING STYLE

REEL DIMENSIONS

* These values are typical values.

TAPE DIMENSIONS

Type

A

W1

W2

N

E

VLS201610CX

ø180

9

13

ø60

0.5

ø13.0

±0.5

ø21.0

±0.8

2.0

±0.5

A

(1.0)

Dimensions in mm

E

W2

W1

P0

P2

øD0

P1

A

t

K

Dimensions in mm

Type

A

B

øD0

E

F

P0

P1

P2

W

K

t

VLS201610CX

1.9

2.3

1.5+0.1/-0

1.75±0.1

3.5±0.05

4.0±0.1

4.0±0.1

2.0±0.05

8.0±0.2

1.1

0.25
