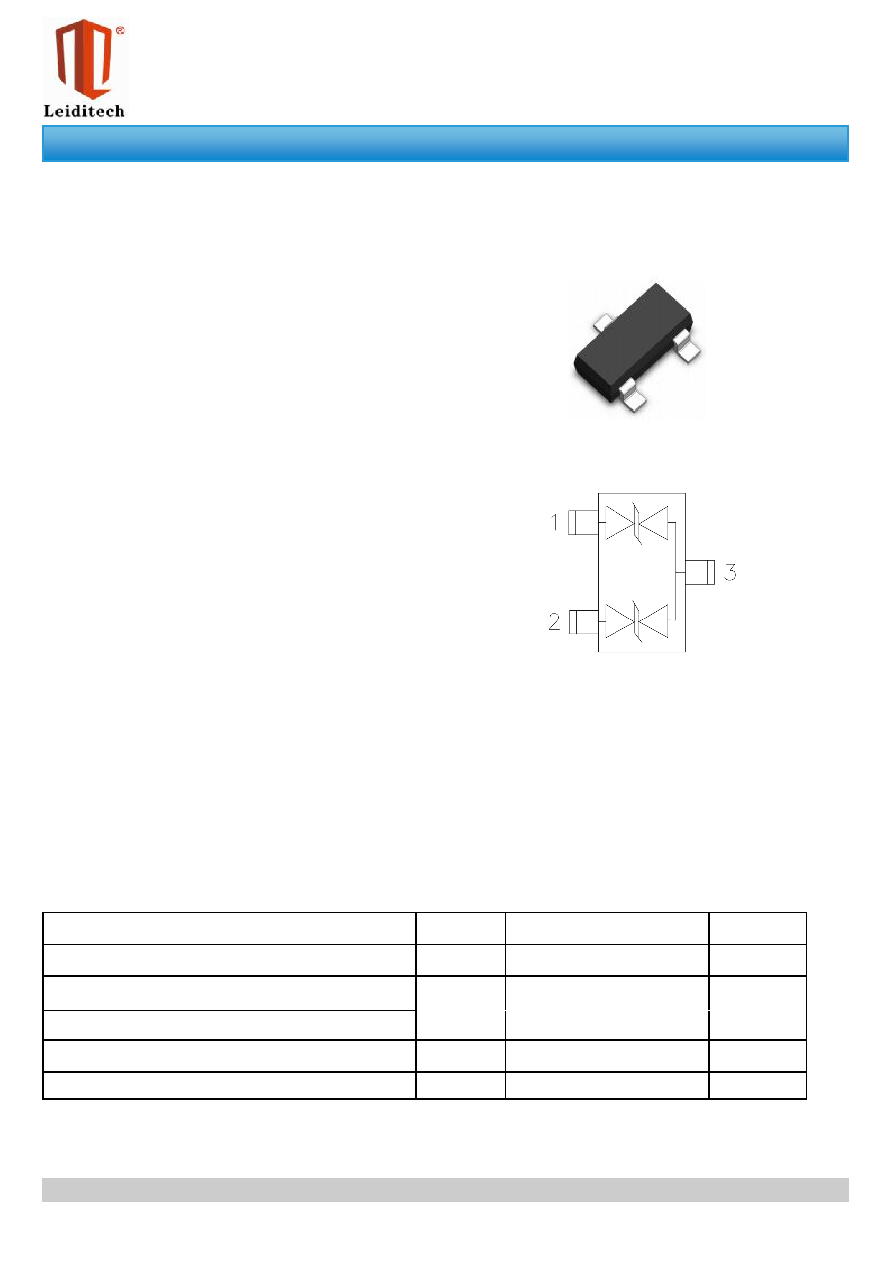

SMC36

2-Line Bi-directional TVS Diode Array

Features

●

Ultra low leakage: nA level

●

Operating voltage: 36V

●

Low clamping voltage

●

Complies with following standards:

– IEC 61000-4-2 (ESD) immunity test

Air discharge: ±30kV

Contact discharge: ±30kV

– IEC61000-4-4 (EFT) 40A (5/50ns)

– IEC61000-4-5 (Lightning) 5A (8/20μs)

●

RoHS Compliant

Applications

●

USB 2.0 power and data line

●

Set-top box and digital TV

●

Digital video interface (DVI)

●

Notebook Computers

●

SIM Ports

●

10/100 Ethernet

Dimensions SOT-23

Pin Configuration

Mechanical Characteristics

●

Package: SOT-23

●

Lead Finish: Lead Free

●

UL Flammability Classification Rating 94V-0

●

Quantity Per Reel:3,000pcs

●

Reel Size:7inch

Rev : 01.06.2014

1/3

www.leiditech.com

Absolute Maximum Ratings(Tamb=25°C unless otherwise specified)

Parameter

Symbol

Value

Unit

Peak Pulse Power (8/20µs)

Ppp

300

W

ESD per IEC 61000−4−2 (Air)

VESD

±30

Kv

ESD per IEC 61000−4−2 (Contact)

±30

Operating Temperature Range

TJ

-55 to +125

℃

Storage Temperature Range

TSTJ

-55 to +150

℃
