Ordering Information

C

2225

H

393

J

C

G

A

C

TU

Ceramic Case Size

(L" x W")

Specification/

Series

Capacitance

Code (pF)

Capacitance

Rated Voltage

(VDC)

Dielectric Failure Rate/

Design

Packaging/Grade

(C-Spec)

0805

1206

1210

1808

1812

1825

2220

2225

2824

3040

3640

4540

H = High

Temperature

(200°C)

Two significant

digits +

number of zeros.

B = ±0.10 pF

C = ±0.25 pF

D = ±0.5 pF

F = ±1%

G = ±2%

J = ±5%

K = ±10%

M = ±20%

C = 500

B = 630

D = 1,000

F = 1,500

G = 2,000

G = C0G

A = N/A

C = 100% Matte Sn

L = SnPb (5% Pb min.)

E = Gold (Au) 1.97 – 11.8 µin

F = Gold (Au) 30 – 50 µin

G = Gold (Au) 100 µin min.

See “Packaging

C-Spec Ordering

Options Table”

below

1

Additional capacitance tolerance offerings may be available. Contact KEMET for details.

2

Gold(Au) termination finish options are not available on 2824, 3040, 3640 and 4540 case sizes.

Overview

KEMET’s High Voltage-High Temperature (HV-HT) series

surface mount C0G Multilayer Ceramic Capacitors (MLCCs) are

constructed of a robust and proprietary base metal electrode

(BME) dielectric system that offers industry-leading performance

at extreme temperatures. These surface mountable devices

feature a 200ºC maximum operating temperature and are

specifically designed to withstand the demands of harsh

industrial environments such as oil exploration and automotive/

avionics engine compartment circuitry. They also offer

higher and more uniform breakdown voltage performance

than competitive products, resulting in increased yields in

customer field applications. When dealing with expensive high

temperature circuitry and systems, higher yields can quickly

result in significant cost savings.

KEMET’s HV-HT series MLCCs are temperature compensating

and are suited for resonant circuit applications or those where

Q and stability of capacitance characteristics are required.

They exhibit no change in capacitance with respect to time

and voltage and boast a negligible change in capacitance with

reference to ambient temperature. Capacitance change is limited

to ±30ppm/ºC from −55°C to +200°C. In addition, these capacitors

exhibit high insulation resistance with low dissipation factor at

elevated temperatures up to 200°C. They also exhibit low ESR

at high frequencies and offer superior volumetric efficiency over

competitive high temperature precious metal electrode (PME) and

base metal electrode (BME) dielectric system devices.

These devices are Lead (Pb)-Free, RoHS and REACH compliant

without the need of any exemptions.

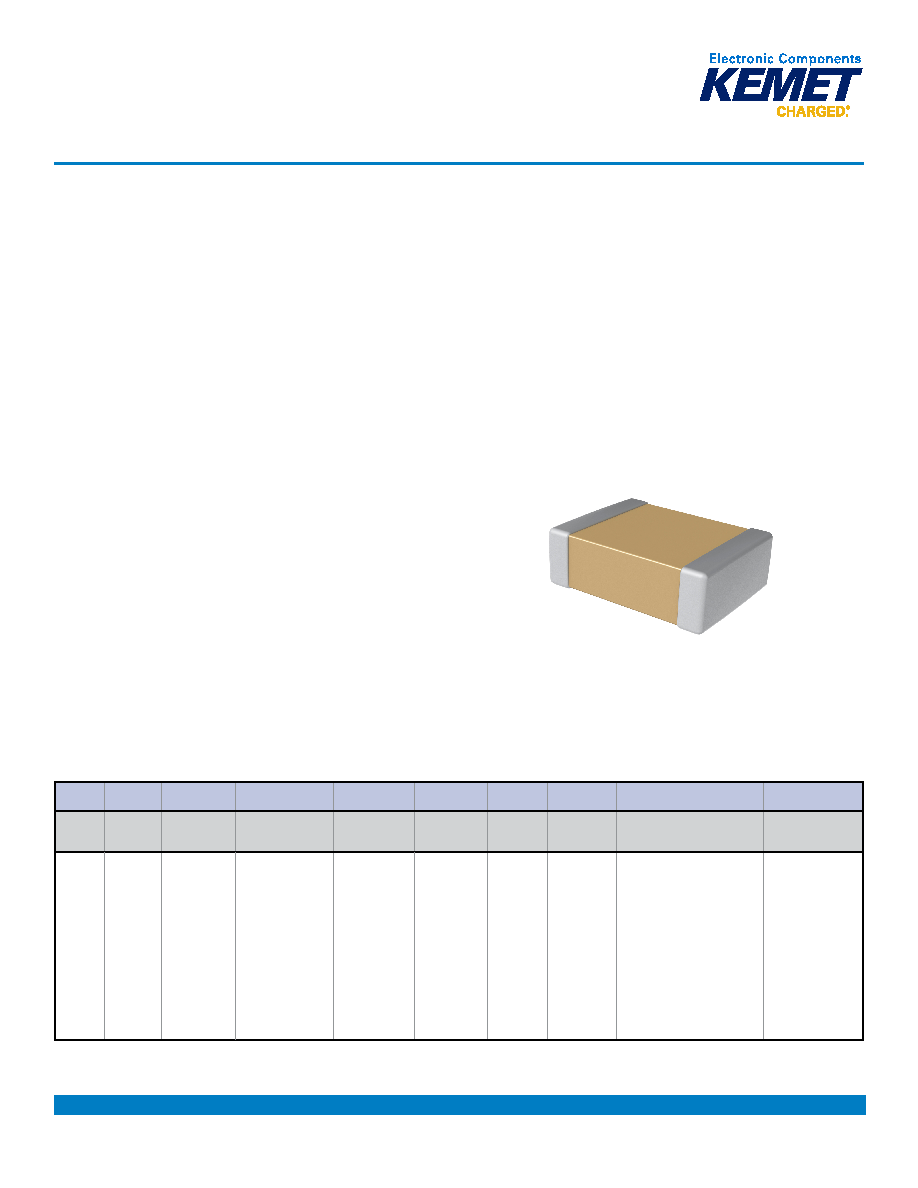

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

HV-HT Series, High Voltage, High Temperature 200°C,

C0G Dielectric, 500 – 2,000 VDC (Industrial Grade)
