AD7912/AD7922

Rev. 0 | Page 24 of 32

POWER VS. THROUGHPUT RATE

By using the power-down mode on the AD7912/AD7922 when

not converting, the average power consumption of the ADC

decreases at lower throughput rates. Figure 36 shows how, as the

throughput rate is reduced, the device remains in its power-

down state longer and the average power consumption over

time drops.

For example, if the AD7912/AD7922 are operating in a continu-

ous sampling mode with a throughput rate of 100 kSPS and a

SCLK of 18 MHz (VDD = 5 V), and the devices are placed in the

power-down mode between conversions, then the power

consumption is calculated as follows. The power dissipation

during normal operation is 20 mW (VDD = 5 V). If the power-up

time is one dummy cycle (1 µs), and the remaining conversion

time is another cycle (1 µs), then the AD7912/AD7922 dissipate

20 mW for 2 µs during each conversion cycle. If the throughput

rate is 100 kSPS and the cycle time is 10 µs, then the average

power dissipated during each cycle is

(2/10) × (20 mW) = 4 mW

If VDD = 3 V, SCLK = 18 MHz, and the device is again in power-

down mode between conversions, then the power dissipation

during normal operation is 6 mW. The AD7912/AD7922 now

dissipate 6 mW for 2 µs during each conversion cycle. With a

throughput rate of 100 kSPS, the average power dissipated

during each cycle is

(2/10) × (6 mW) = 1.2 mW

In the previous calculations, the power dissipation when the

part is in power-down mode has not been taken into account.

By placing the parts into power-down mode between conver-

sions, the average power consumed by the ADC decreases as

the throughput rate decreases, because the ADC remains in a

power-down state for a longer time.

Figure 36 shows the power consumption versus throughput rate

when using the power-down mode between conversions with

both 5 V and 3 V supplies.

Power-down mode is intended for use with throughput rates of

approximately 330 kSPS and under, because at higher sampling

rates the short time spent in power-down does not affect the

average power consumed by the ADC.

100

0.01

0.1

100

150

200

250

300

350

THROUGHPUT (kSPS)

VDD = 5V, SCLK = 18MHz

VDD = 3V, SCLK = 18MHz

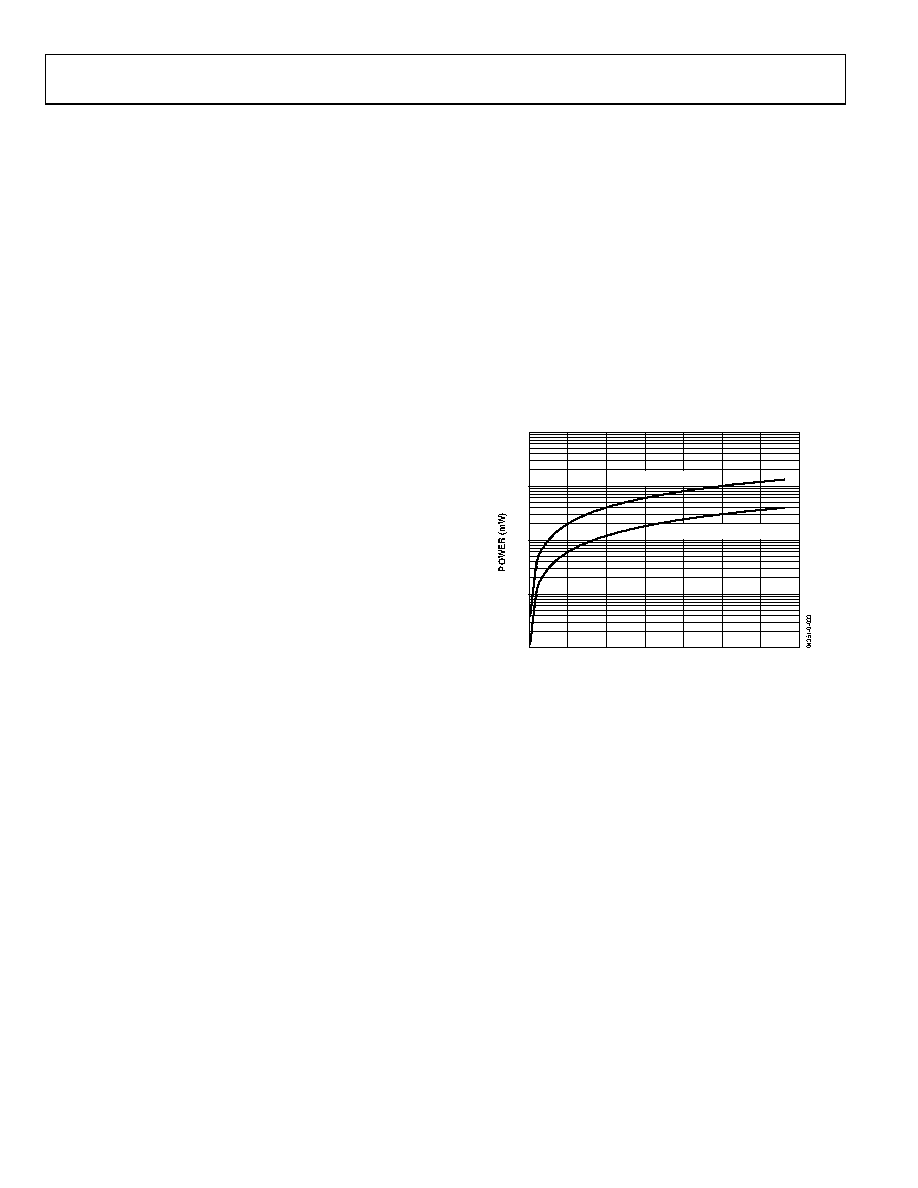

Figure 36. Power Consumption vs. Throughput Rate
