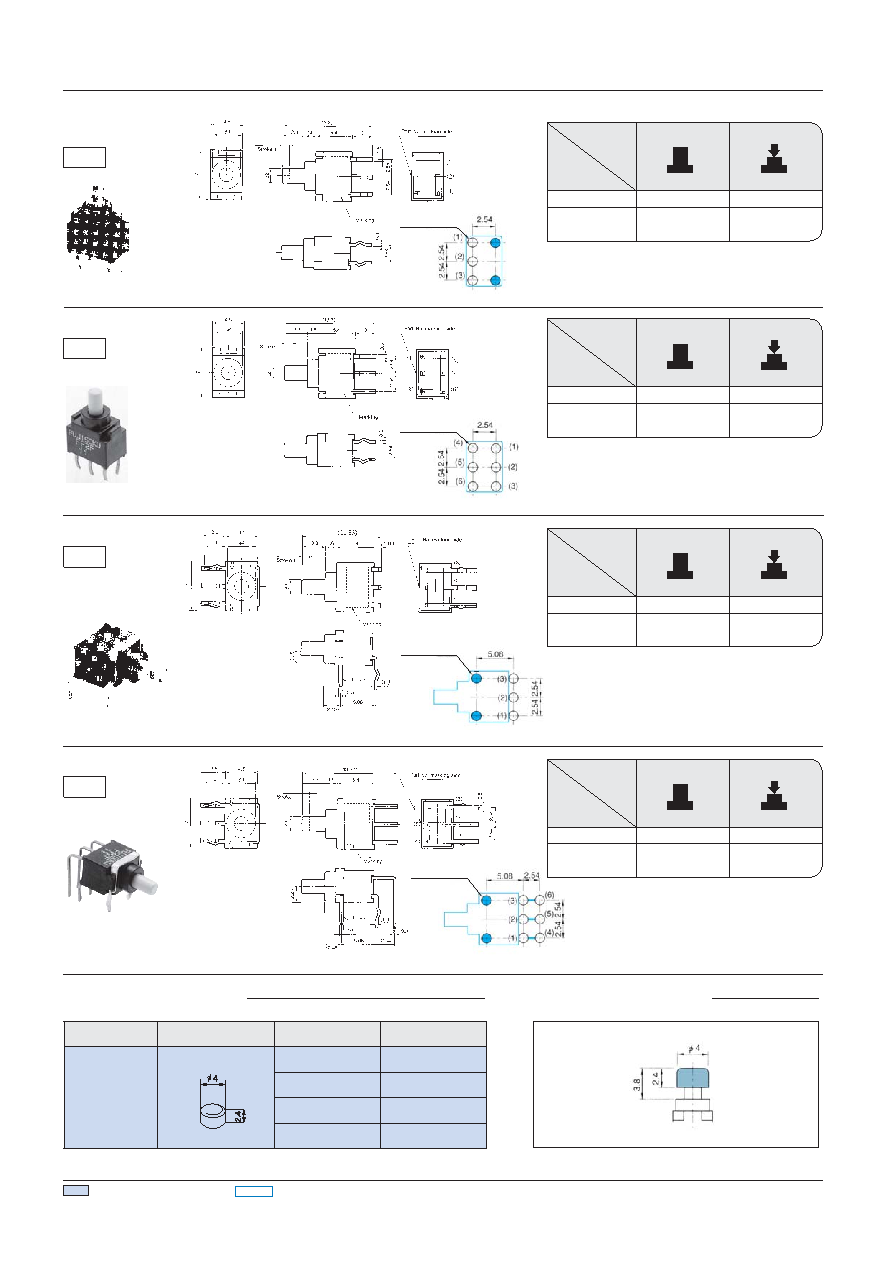

 2 / 3 page
background image
6-φ0.8∼1.0
5-φ0.8∼1.0
8-φ0.8∼1.0
5-φ0.8∼1.0
Switching
function
Part No.
★FP2F−5M−Z
ON
（ON）
Connecting terminals
2
−3
5
−6
2
−1
5
−4
FP
SPDT
SPDT
DPDT
DPDT
Switching
function
Part No.
FP1F
−2M−Z
ON
（ON）
Connecting terminals
2
−32−1
Switching
function
Part No.
★FP2F−2M−Z
ON
（ON）
Connecting terminals
2
−3
5
−6
2
−1
5
−4
Switching
function
Part No.
FP1F
−5M−Z
ON
（ON）
Connecting terminals
2
−32−1
PC
PC
R/A
R/A
Terminal numbers are not shown on the switch.
Terminal numbers are not shown on the switch.
Terminal numbers are not shown on the switch.
Terminal numbers are not shown on the switch.
PC Hole Layouts
（Top view）
PC Hole Layouts
（Top view）
PC Hole Layouts
（Top view）
PC Hole Layouts
（Top view）
■Optional Accessories
《Sold separately》
■Color Cap Mounting
Part Name
Dimension
Color
Part Number
Coor Cap
Gloss Änish
White
140000481453
Red
140000481452
ABS resin
Black
140000481451
Gray
140000481450
（ON）
：Momentary.
★：Made to order products.
The blue line shows the outline of the switch.
：Optional Accessories.



Html Pages

1 2 3


Scheda tecnica Scarica

Go To PDF Page


Link URL
