AXLE7050CS Rev.1

ww.axtal.com
Roemerring 9
Drawing D1
fon: +49 (6261) 939834
D‐74821 Mosbach
Page 2(3)
fax: +49 (6261) 939836
Germany
E‐mail: info@axtal.com
GmbH & Co. KG

Ordering Code

Model
Temperature
range
Revisio
n
Frequency [MHz]
AXLE7050CS
Class I: “1”
Class II: “2”
Rev.1
12.688375
12.688656
12.688750
Example: AXLE7050CS‐2_Rev.1 – 12.688750 MHz


Handling and Testing

Parameter
Procedure
Source
Handling and Testing
Application Note AXAN‐011
www.axtal.com
Processing
Application Note AXAN‐012
www.axtal.com

Parameter
Procedure
Condition
Electrostatic discharge (ESD)
      THD devices
IEC60749‐26
HBM
2000 V
      SMD devices
IEC60749‐27
MM
200 V
Washable
  Yes      No
RoHS compliant
  Yes      No


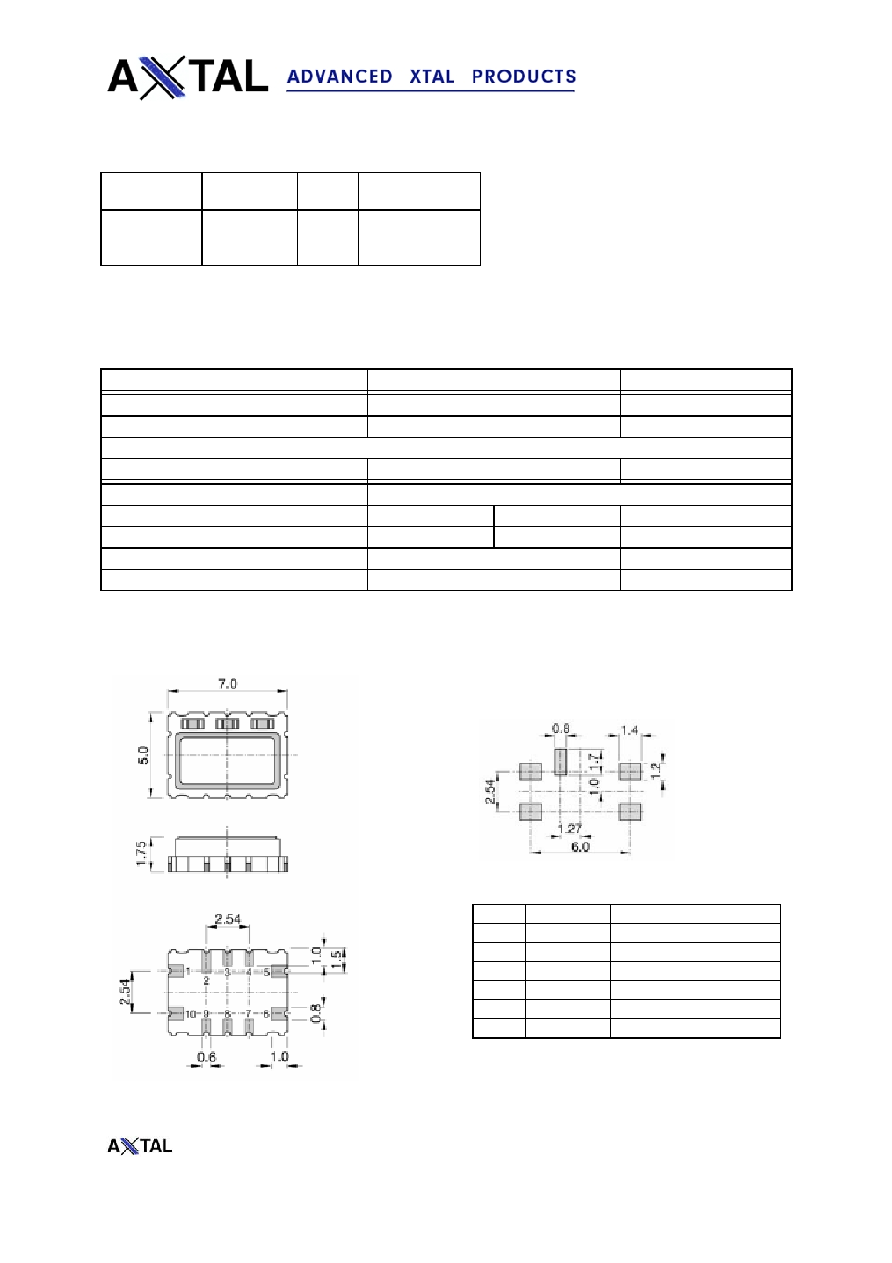

Enclosure drawing



Soldering pattern:



Pin connections:
Pin #
Symbol
Function
1,2,3,4
I.C.
Do not connect
5
GND
Ground
6
RF OUT
RF Output
7,8
I.C.
Do not connect
9
OE
Oscillator Enable/Tristate
10
VS
Supply Voltage
