ST92185B - DISPLAY STORAGE RAM INTERFACE

7.3 DISPLAY STORAGE RAM INTERFACE

7.3.1 Introduction

The Display RAM (TDSRAM) is used to hold the

OSD data for display.

It can be shared by the following units:

– Display Unit (DIS). This OSD generator is de-

scribed in a separate chapter.

– CPU accesses for control.

The necessary time slots are provided to each unit

for realtime response.

FEATURES:

Memory mapped in CPU Memory Space

Direct CPU access without significant slowdown

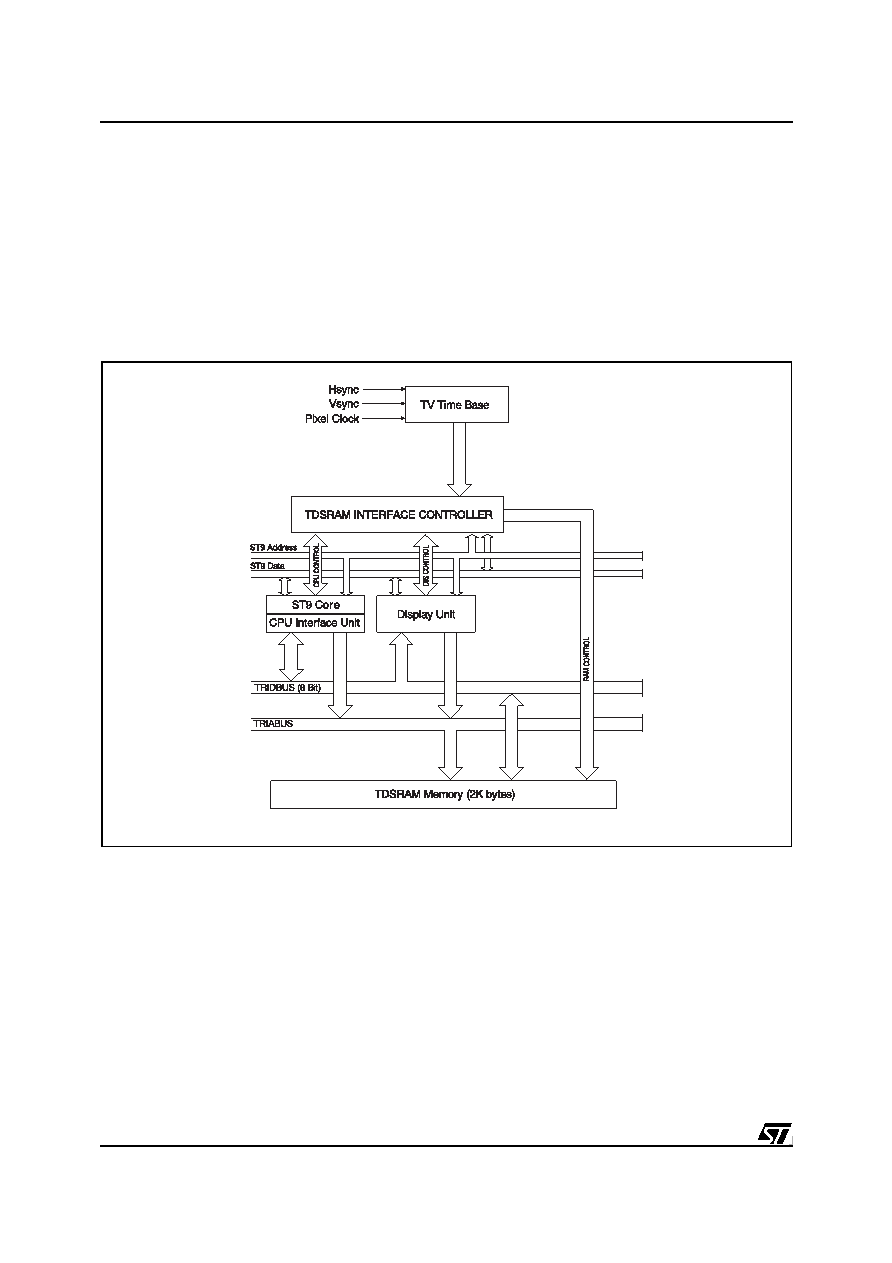

Figure 48. General Block Diagram

VR02094B
