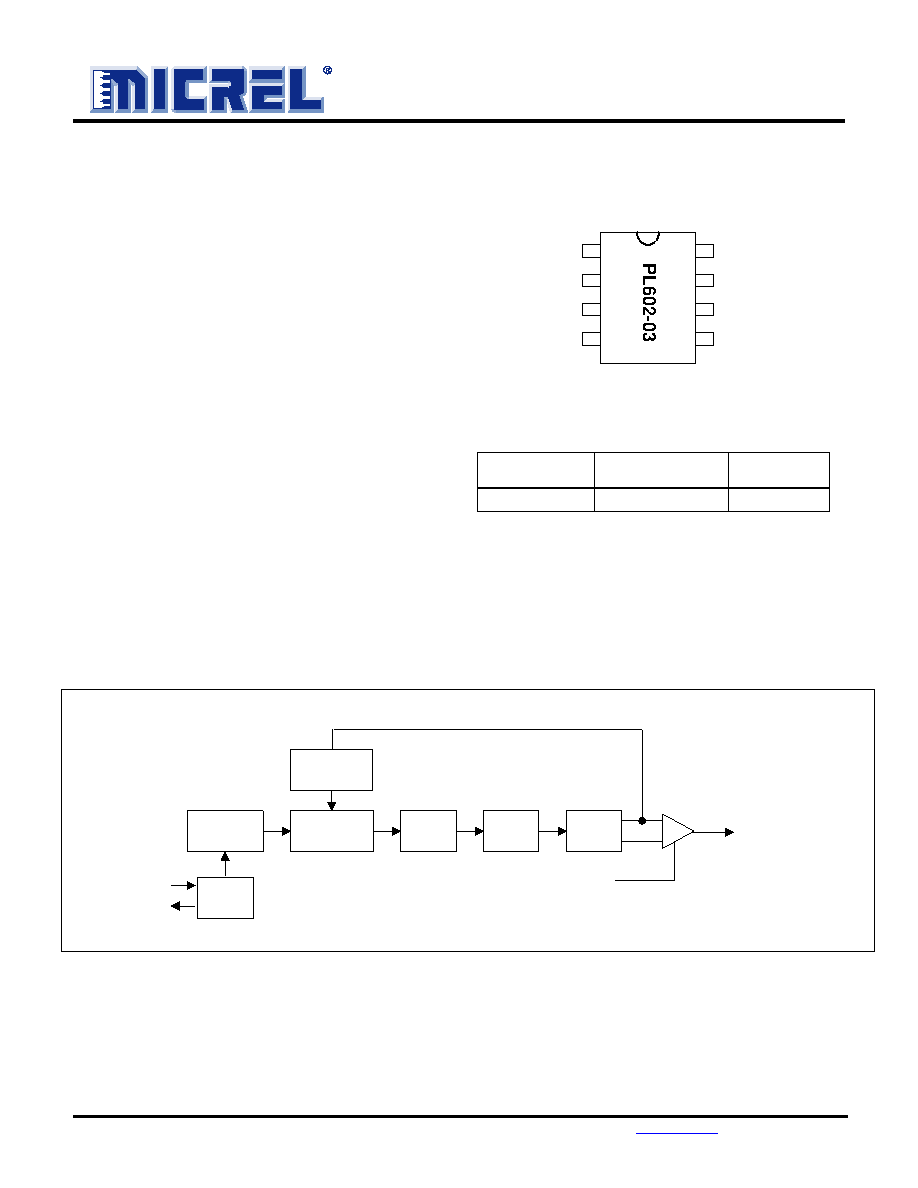

PL602-03

Low Phase Noise CMOS XO (48MHz to 100MHz)

Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1(408) 944 -0800 • fax +1(408) 474-1000 • www.micrel.com Rev 11/16/11 Page 1

FEATURES

 Low phase noise XO output for the 48MHz to

100MHz range (-130 dBc at 10kHz offset).

 12 to 25MHz crystal input.

 Integrated crystal load capacitor: no external

load capacitor required.

 Selectable High Drive (30mA) or Standard Drive

(10mA) output.

 3.3V operation.

 Available in 8-Pin TSSOP or SOIC.

DESCRIPTION

The PL602-03 is a low cost, high performance and

low phase noise XO, providing less than -130dBc at

10kHz offset in the 48MHz to 100MHz operating

range. The very low jitter makes this chip ideal for

applications requiring clean reference frequency

sources. Input crystal can range from 12 to 25MHz

(fundamental resonant mode).

PIN CONFIGURATION

OUTPUT RANGE

MULTIPLIER

FREQUENCY

RANGE

OUTPUT

BUFFER

X4

48 - 100MHz

CMOS

BLOCK DIAGRAM

Reference

Divider

Phase

Comparator

Charge

Pump

Loop

Filter

VCO

Divider

XTAL

OSC

OE

XIN

XOUT

CLK

1

2

3

4

5

6

7

8

CLK

VDD

OE^

XIN

GND

N/C

XOUT

GND

Note: ^ denotes internal pull up
