PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

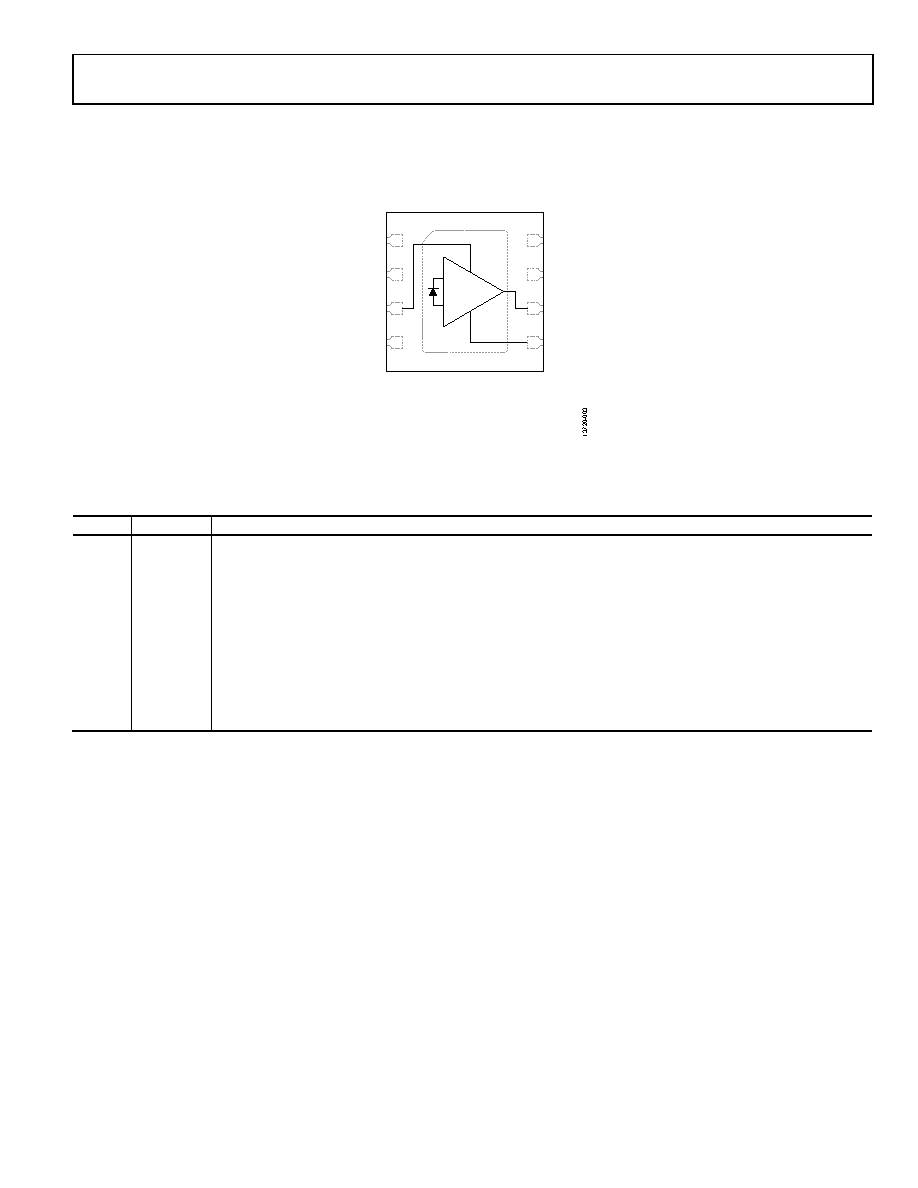

Figure 3. Pin Configuration

Table 5. Pin Function Descriptions

Pin No.

Mnemonic

Description

1

NIC

Not Internally Connected. This pin can be grounded.

2

NIC

Not Internally Connected. This pin can be grounded.

3

VCC

Supply Voltage.

4

PWDN

Power-Down Input. This pin must be tied high or low; it cannot be left floating. Pull this pin high to disable the

device.

5

GND

Ground.

6

OUT

Output Terminal.

7

NIC

Not Internally Connected. This pin can be grounded.

8

NIC

Not Internally Connected. This pin can be grounded.

9

EPAD

Exposed Pad. The exposed pad must be left floating. The printed circuit board (PCB) area under the exposed pad

can be left blank to facilitate this requirement.

VCC

PWDN

NIC

3

4

1

2

NIC

6

5

8

+

–

7

OUT

GND

NIC

NIC

ADPD2211

TOP VIEW

(Not to Scale)

NOTES

1. NIC = NOT INTERNALLY CONNECTED.

2. THE EXPOSED PAD MUST BE LEFT FLOATING.

THE PCB AREA UNDER THE EXPOSED PAD

CAN BE LEFT BLANK TO FACILITATE

THIS REQUIREMENT.
