Data Sheet

ADPD2214

Rev. 0 | Page 5 of 13

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

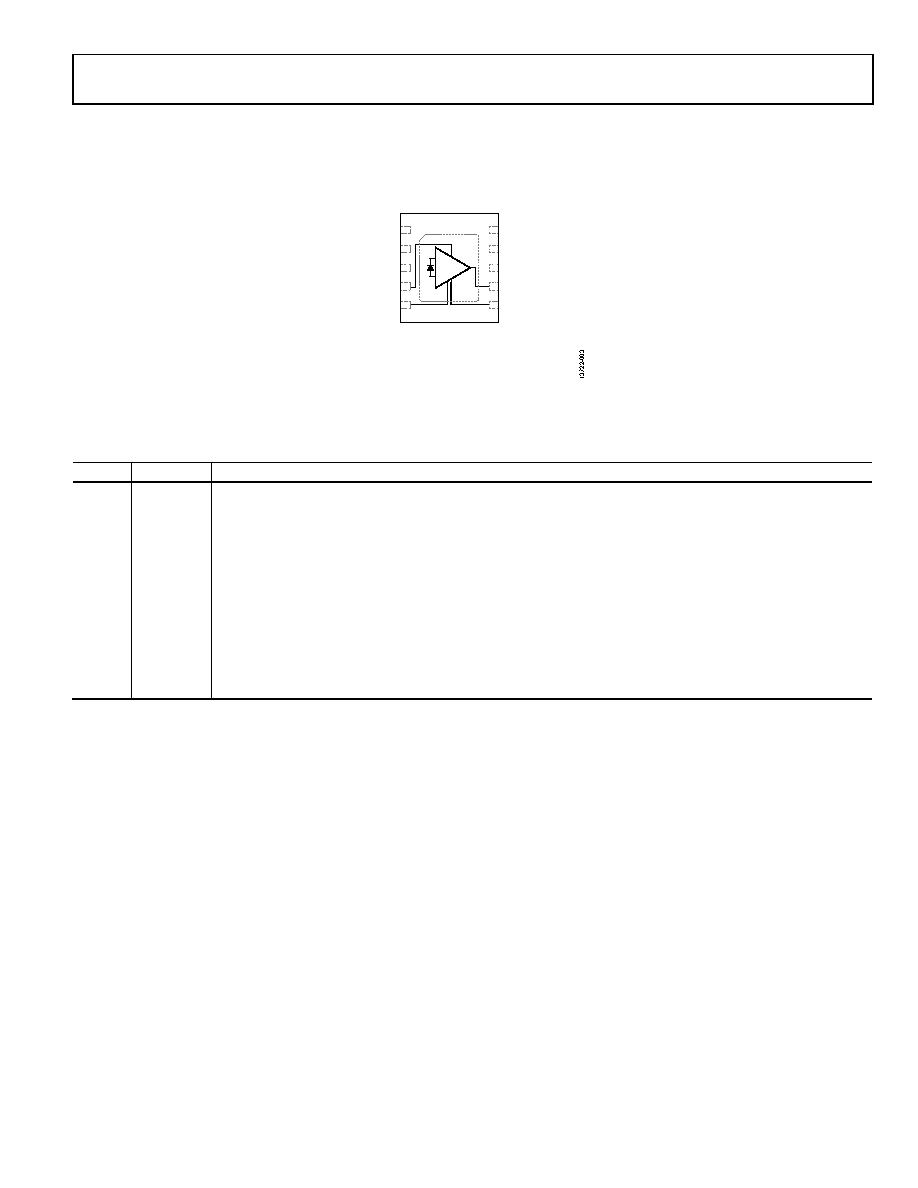

Figure 3. Pin Configuration

Table 5. Pin Function Descriptions

Pin No.

Mnemonic

Description

1

NIC

Not Internally Connected. This pin can be grounded.

2

NIC

Not Internally Connected. This pin can be grounded.

3

NIC

Not Internally Connected. This pin can be grounded.

4

VCC

Supply Voltage.

5

PWDN

Power-Down Input. Must be connected. Pull this pin high to disable the device.

6

GND

Ground.

7

OUT

Output Terminal.

8

NIC

Not Internally Connected. This pin can be grounded.

9

NIC

Not Internally Connected. This pin can be grounded.

10

NIC

Not Internally Connected. This pin can be grounded.

11

EPAD

Exposed Pad. The exposed pad must be left floating. The printed circuit board (PCB) area under the exposed pad

can be left blank to facilitate this requirement.

ADPD2214

TOP VIEW

(Not to Scale)

NOTES

1. NIC = NOT INTERNALLY CONNECTED.

2. THE EXPOSED PAD MUST BE LEFT FLOATING.

THE PCB AREA UNDER THE EXPOSED PAD

CAN BE LEFT BLANK TO FACILITATE

THIS REQUIREMENT.

1

NIC

2

NIC

3

NIC

4

VCC

5

PWDN

10 NIC

9

NIC

8

NIC

7

OUT

6

GND

+

–
