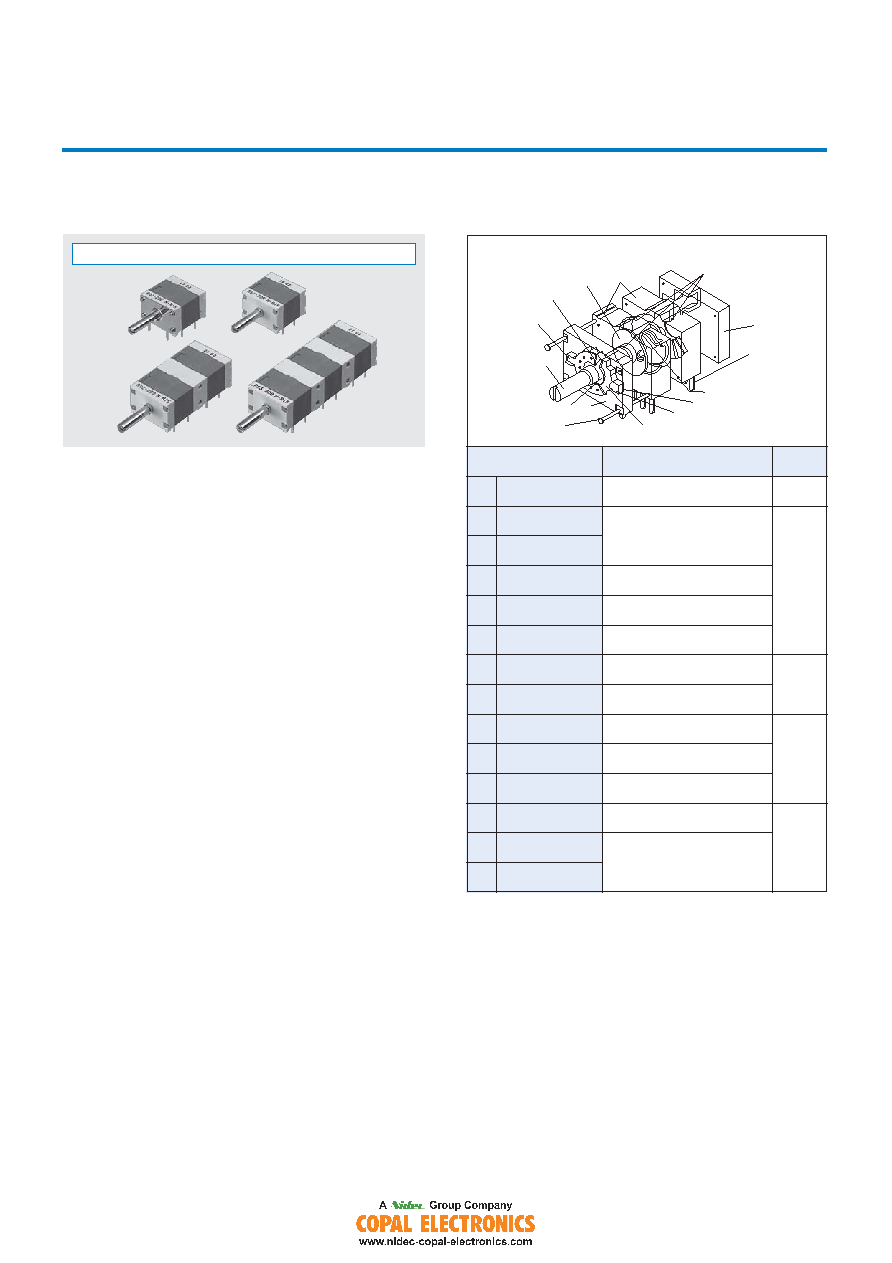

■ FEATURES

O RoHS compliant

O P.C.B. mounted, compact size and DIP compatible

O Protection by“O”ring (contact block) against dust and

for cleaning after soldering

O Precious metal alloy wiping type contacts provide a long

life (50000 revolutions at no load) and high reliability. (In

house comparison)

O Both shorting and non-shorting types are available

Part name

①

②

③

④

⑤

⑥

Rotor

Stopper pin

Shaft

Linking pin

Stopper ring

“O” ring

Stopper pin holder

Material

Flammability

UL94HB

—

UL94HB

—

Silicone rubber

Copper alloy, Nickel-plated

Nickel-plated

POM

（Polyoxymethylene）

Copper alloy

⑦ Click gear

PA

（Polyamide）

POM（Polyoxymethylene）

⑧ Click plate

⑨ Click spring

SWPA

（Piano wire）

⑩ Contact spring

Multi metal alloy

Copper alloy, Gold-plated

⑪ Terminal pin

UL94HB

⑫

PBT

（Polybutyleneterephthalate）

⑬ Cover

⑭ Housing

INTERNAL STRUCTURE

The DIP-TYPE ROTARY SELECTOR SWITCHES RS/RG series listed here are standard

versions, but our production will be made upon receipt of your orders.

RS/RG

ROTARY SELECTOR SWITCHES

①

②

③

④

⑤

⑥

⑬

⑦

⑧

⑨

⑩

⑪

⑬

⑫

⑭

RoHS compliant
