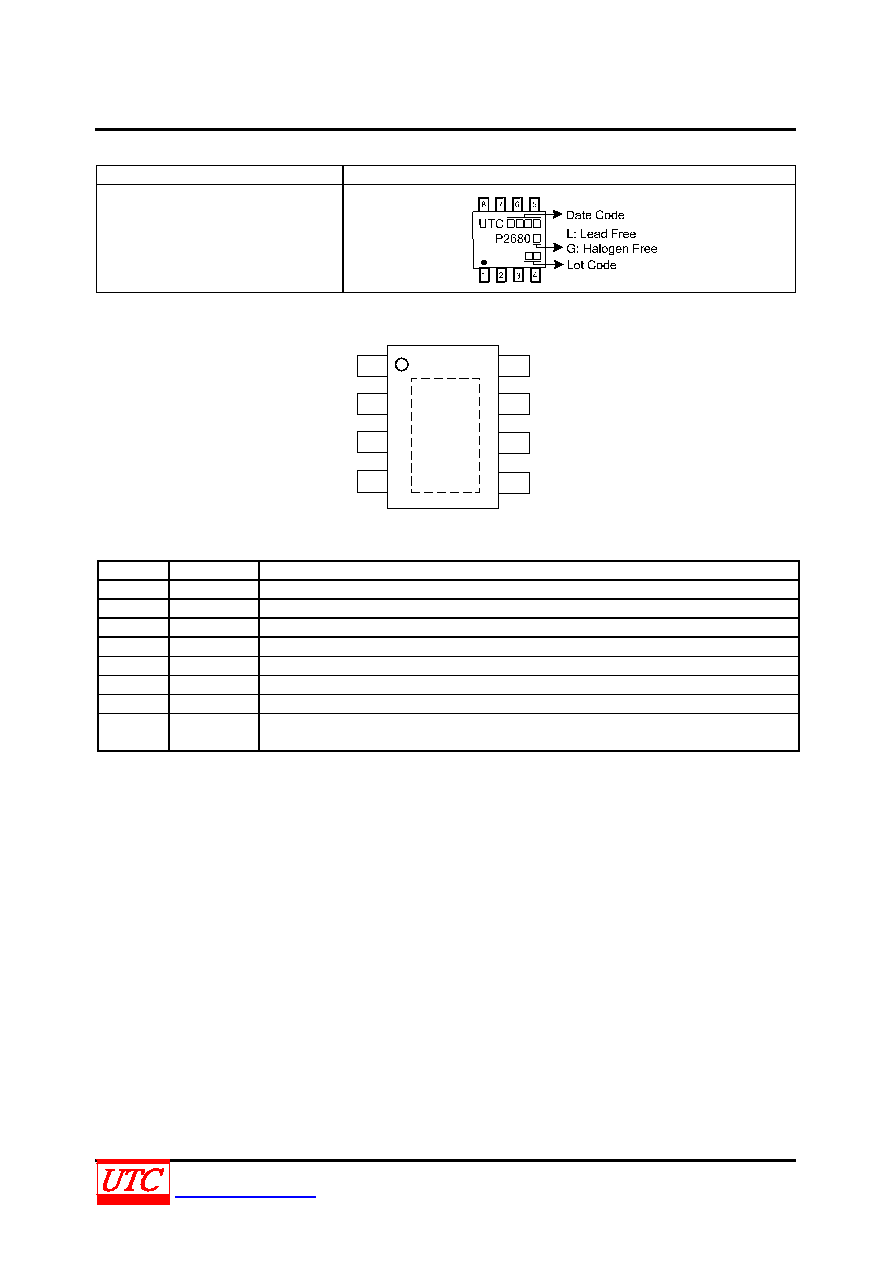

background image
P2680
Preliminary
CMOS IC
UNISONICTECHNOLOGIESCO.,LTD
2 of 5
www.unisonic.com.tw
QW-R502-A32.b
MARKING INFORMATION
PACKAGE
MARKING
HSOP-8
PIN CONFIGURATION
1
2
3
4
8
7
6
5
BST
VIN
SW
GND
FB
COMP
EN
SS
PIN DESCRIPTION
PIN NO.
PIN NAME
DESCRIPTION
1
BST
Bootstrap pin. Positive supply for the upper MOSFET driver.
2
VIN
Power supply pin.
3
SW
Power switch output pin.
4
GND
Ground pin.
5
FB
The output voltage feedback pin. It is also the inverting input of the error amplifier.
6
COMP
Compensation pin. It is also the output of the internal error amplifier.
7
EN
Enable Input. A high input at EN turns on the converter, and a low input turns it off.
8
SS
Soft-Start pin. Connect a capacitor from SS to GND to set the soft-start period. To
disable the soft-start feature, leave SS unconnected.
