PCB-RZ datasheet(3/4 Pages) TEC

3 / 4 page

02-2016, Rev. 0216

www.te.com

a TE Connectivity Ltd. company

Datasheets and product specification

according to IEC 61810-1 and to be used

only together with the ‘Definitions’ section.

Datasheets and product data is subject to the

terms of the disclaimer and all chapters of

the ‘Definitions’ section, available at

http://relays.te.com/definitions

Datasheets, product data, ‘Definitions’ sec-

tion, application notes and all specifications

are subject to change.

SCHRACK

General Purpose Relays

PCB Relays

Power PCB Relay RZ (Continued)

Product code structure

Typical product code

-1C

-D012

Type

RZ Power PCB Relay RZ

Version

standard version

Version

3.5mm pinning, 12 A

5mm double pinning, 16 A

5mm pinning, 12 A

H High Performance 5mm double pinning, 16 A

Contact configuration

1A 1 form A (1 NO) contact

1C 1 form C (1 CO) contact

Contact material

AgNi 90/10

AgSnO2

Coil version

Coil code: please refer to coil versions table

Cover version

blank

standard (orange)

R reinforced flux proof (epoxy)

12A, pinning 3.5mm

1 form C (CO) contact

1 form A (NO) contact

S0418-CB

S0163-BG

S0163-BH

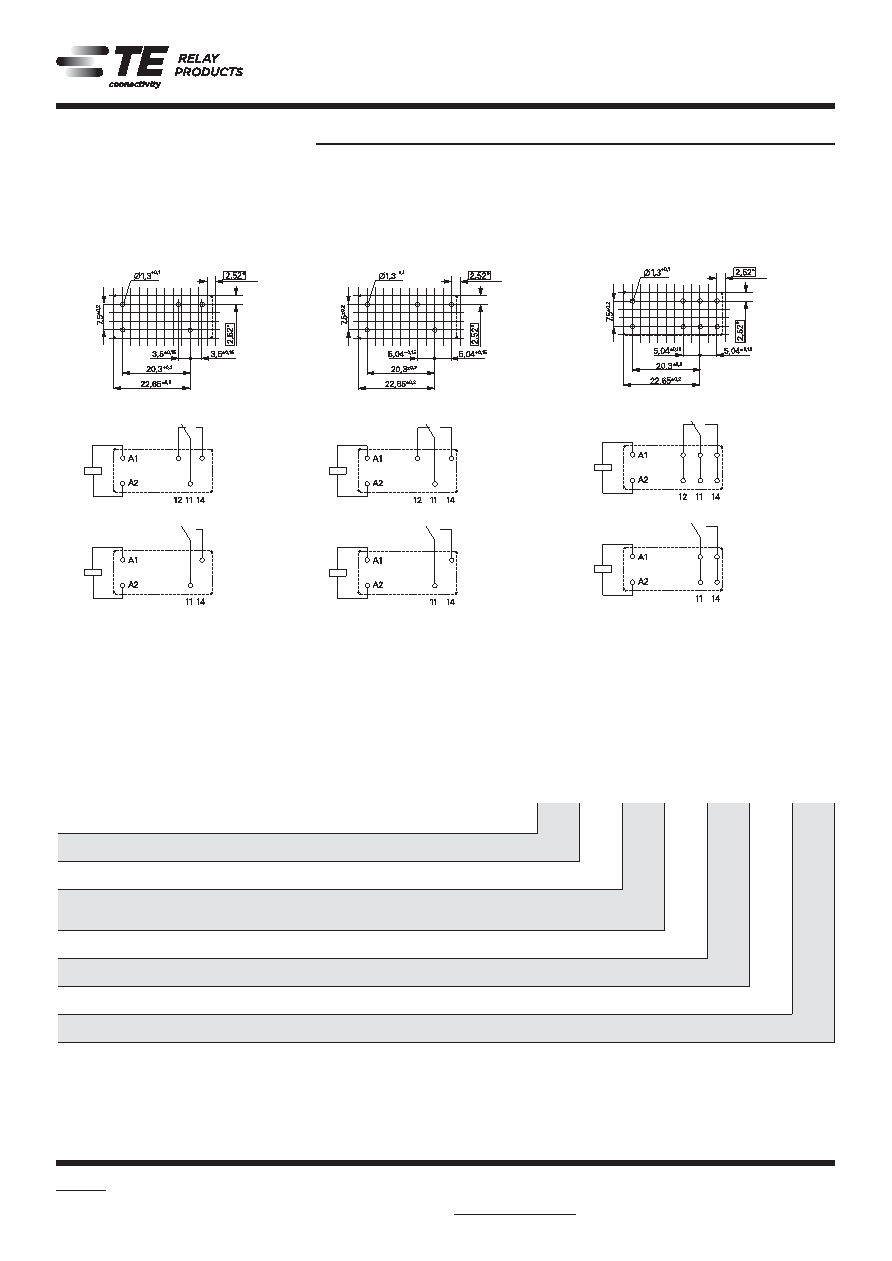

PCB layout / terminal assignment

Bottom view on solder pins

12A, pinning 5mm

1 form C (CO) contact

1 form A (NO) contact

S0418-CN

S0163-BC

S0163-BD

Recommended pcb hole for manual mounting:

k1.3mm

For automated mounting please ask for

detailed drawing.

16A, pinning 5mm

1 form C (CO) contact

1 form A (NO) contact

S0418-CA

S0163-BE

S0163-BF
