The ACTF9028 is a low-loss, compact, and economical surface-acoustic-wave (SAW) filter in a surface-mount

ceramic QCC8C case designed to provide front-end selectivity in 916.500 MHz receivers. Receiver designs using this

filter include superhet with 10.7 MHz or 500 kHz IF, direct conversion and superregen.

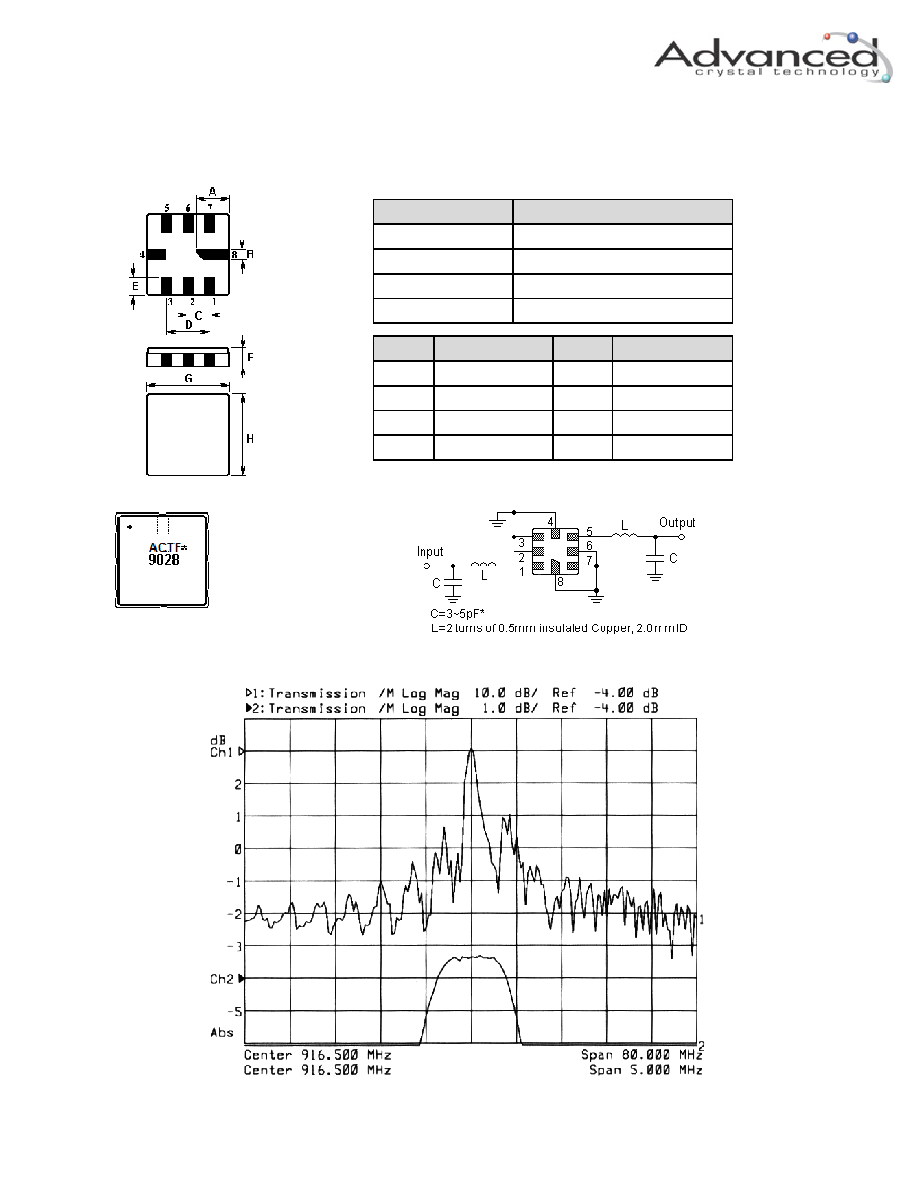

1. Package Dimension (QCC8C)

2. Marking

3. Test Circuit

Laser Marking

4. Typical Frequency Response

Pin

Connection

1

Input / Output

5

Output / Input

2, 3, 6, 7

To be Grounded

4, 8

Case Ground

Sign

Data (unit: mm)

Sign

Data (unit: mm)

A

2.08

E

1.20

B

0.60

F

1.35

C

1.27

G

5.00

D

2.54

H

5.00
