ADRF6820
Data Sheet
Rev. C | Page 36 of 45

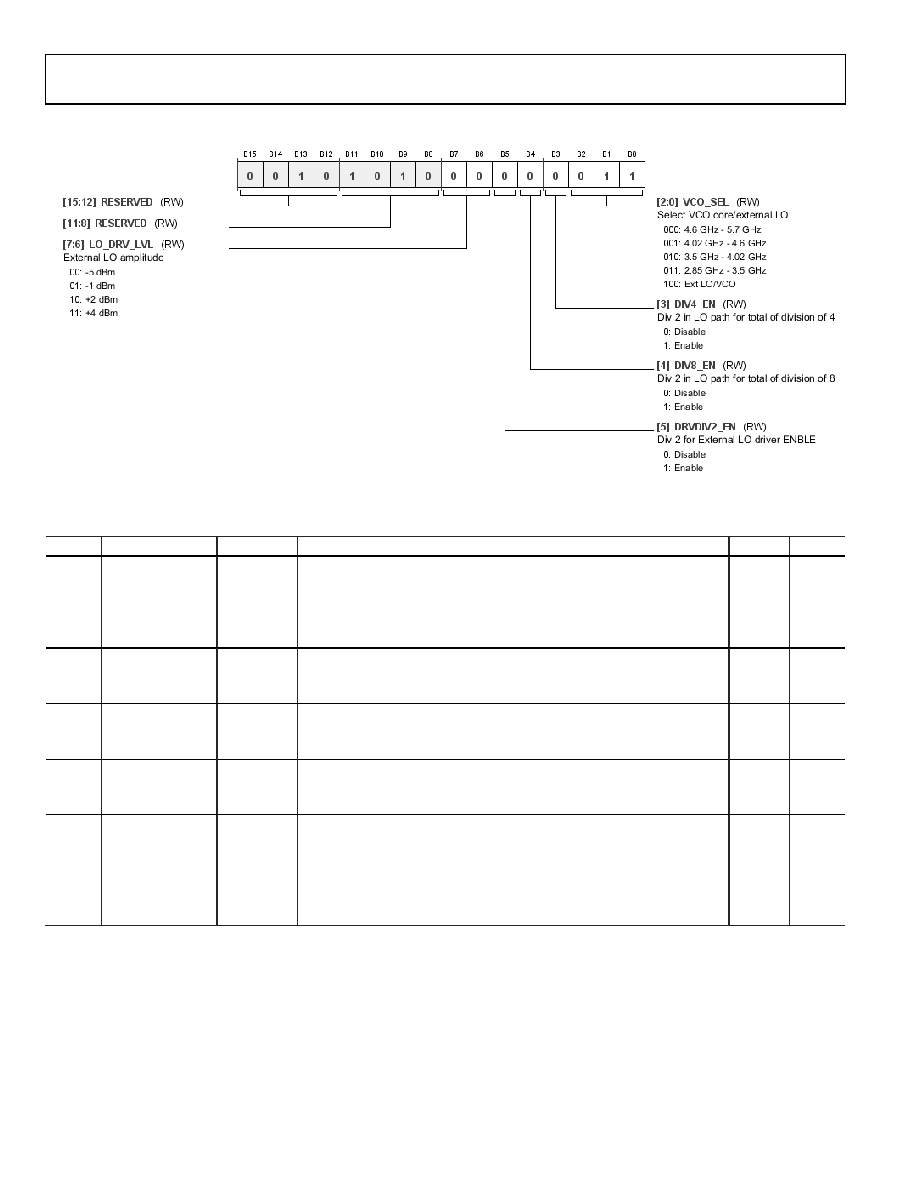

Address: 0x22, Reset: 0x2A03, Name: VCO_CTL
Table 26. Bit Descriptions for VCO_CTL
Bits
Bit Name
Settings
Description
Reset
Access
[7:6]
LO_DRV_LVL
External LO amplitude
0x0
RW
00
−5 dBm
01
−1 dBm
10
+2 dBm
11
+4 dBm
5
DRVDIV2_EN
Divide by 2 for external LO driver enable
0x0
RW
0
Disable
1
Enable
4
DIV8_EN
Divide by 2 in LO path for total of division of 8
0x0
RW
0
Disable
1
Enable
3
DIV4_EN
Divide by 2 in LO path for total of division of 4
0x0
RW
0
Disable
1
Enable
[2:0]
VCO_SEL
Select VCO core/external LO
0x3
RW
000
4.6 GHz to 5.7 GHz
001
4.02 GHz to 4.6 GHz
010
3.5 GHz to 4.02 GHz
011
2.85 GHz to 3.5 GHz
100
External LO/VCO
