CS5.241, CS5.241-C1, CS5.241-S1

C-Line

YRM2.DIODE – (2x 10A Inputs, 1x 20A output)

The YRM2.DIODE is a dual redundancy module, which can be used to build redundant

systems. It is equipped with two input channels, which are individually decoupled by

utilizing diodes.

The YRM2.DIODE does not require an additional auxiliary voltage and is self-powered even

in case of a short circuit across the output.

The YRM2.DIODE has a monitoring circuit included and is the perfect solution when the

power supply has no DC-OK function. Two LEDs and two relay contacts signal when one of

the two DC-input voltages is not in range due to a non-functioning or disconnected power

supply.

Due to the compact design, the unit is very slender and only requires 32mm width on the

DIN-rail.

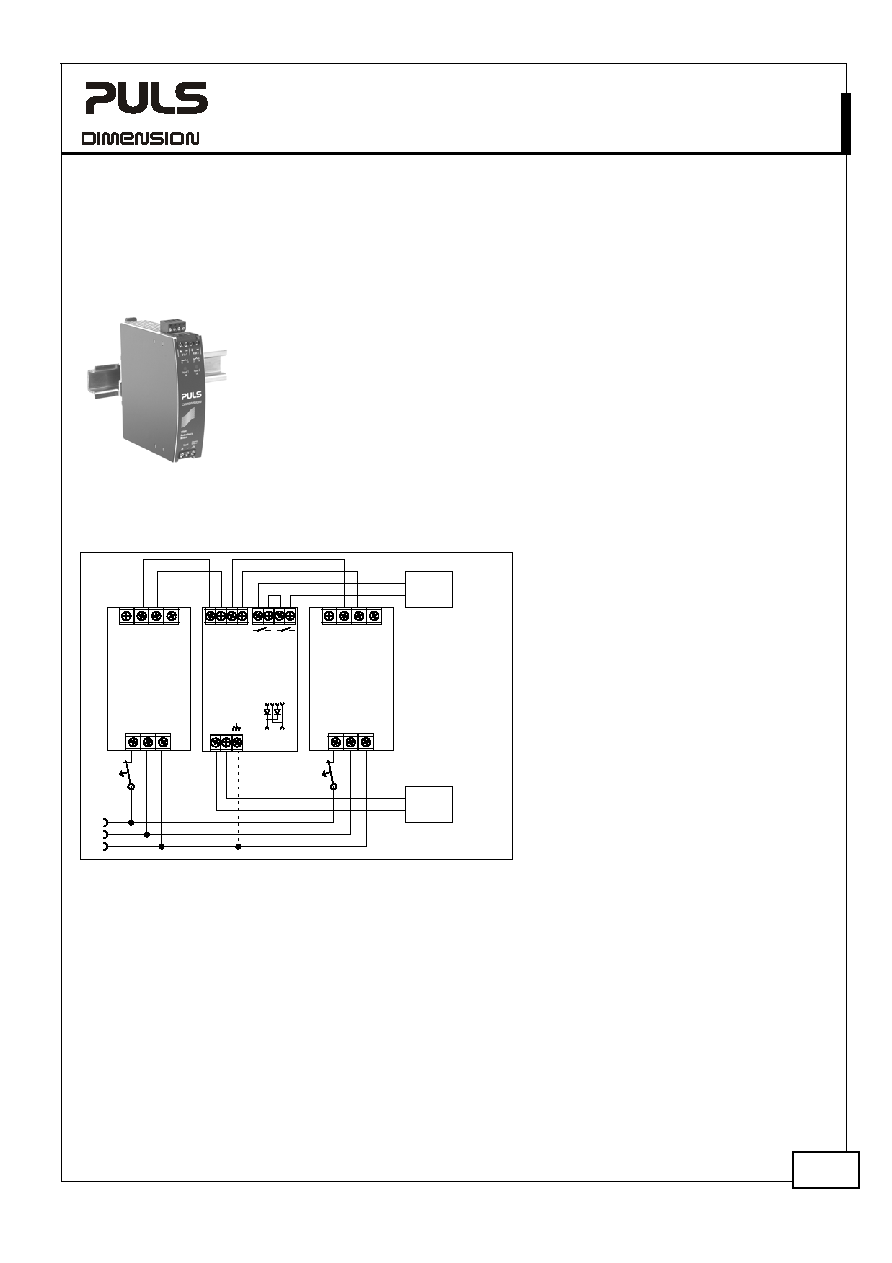

Fig. 21-1 Typical 1+1 Redundant configuration for 5A load current

Failure

Monitor

5A

Load

optional

I

I

L

N

PE

YRM2.DIODE

+

-

OUT

+

-

IN 1

+

-

IN 2 IN 1 IN 2

L N PE

CS5

Power Supply

+ +

- -

24V, 5A

L N PE

CS5

Power Supply

+ +

- -

24V, 5A

Jul. 2015 / Rev. 2.0 DS-CS5.241-EN

All parameters are specified at 24V, 5A, 230Vac, 50Hz, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
