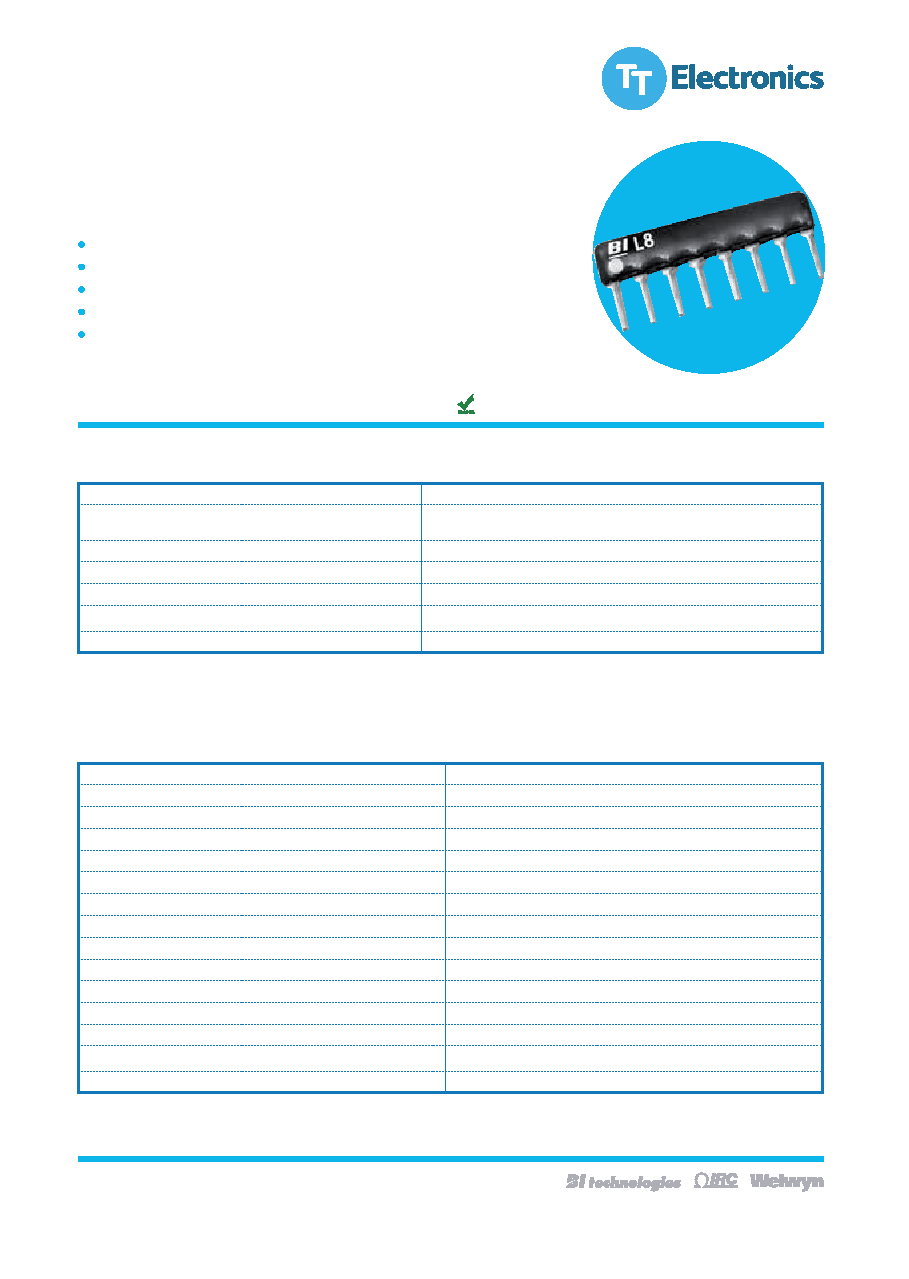

SIL Resistor Network

L Series

Thick Film

LowProfileSIP

ConformalCoated

ResistorNetworks

RoHSCompliant

Electrical

Environmental

StandardResistanceRange,Ohms

1%: 22R - 1M; 2%:10R - 5M6; 5%: 10R - 10M

StandardResistanceTolerance,at25°C

±2%

Optional:±1%(FTol.),±5%(JTol.)

OperatingTemperatureRange

-55°Cto+125°C

TemperatureCoefficientofResistance

±100ppm/°C(<50Ohms=±250ppm/°C)

TemperatureCoefficientofResistance,Tracking

±50ppm/°C

MaximumOperatingVoltage

100Vdcor√PR

InsulationResistance

≥10,000Megohms

ThermalShockplusPowerConditioning

ΔR0.70%

ShortTimeOverload

ΔR0.25%

TerminalStrength

ΔR0.25%

MoistureResistance

ΔR0.50%

MechanicalShock

ΔR0.25%

Vibration

ΔR0.25%

LowTemperatureStorage

ΔR0.25%

HighTemperatureExposure

ΔR0.50%

LoadLife,1,000Hours

ΔR1.00%

ResistancetoSolderHeat(PerMIL-STD-202,Method210,Cond.B)

ΔR0.25%

DielectricWithstandVoltage

200Vfor1minute

MarkingPermanency

MIL-STD202,Method215

LeadSolderability

MIL-STD202,Method208

Flammability

UL-94V-ORated

StorageTemperatureRange

-55°Cto+150°C
