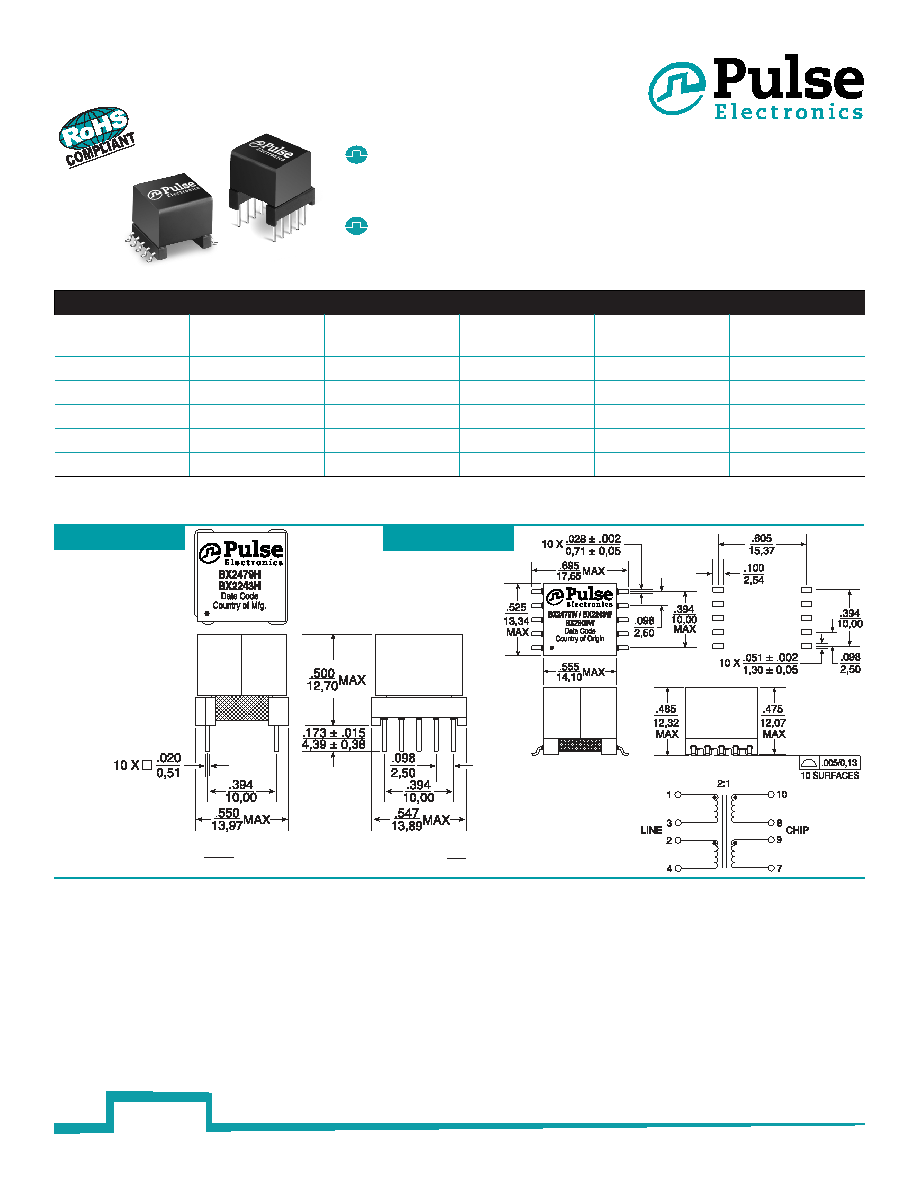

B834.D (02/12)

1

pulseelectronics.com

ADSL Line Transformers

ADSL/ADSL2+ CPE Transformers for POTS and ISDN

applications, matched to Texas Instruments AR7, AU7

and AP7 chipset

Designed to meet EN60950 supplementary insulation

requirements for working voltages up to 250Vrms

BX2479H / BX2243H

BX2479H / BX2243H

Mechanicals

(and NL versions)

(and NL versions)

Schematic

Electrical Specifications @ 25°C - Operating Temperature -40°C to +85°C

RoHS-5 Compliant

Part Number

RoHS-6 Compliant

Part Number

OCL

(mH

±5%)

Turns Ratio

(line:chip)

Isolation Voltage

(Vrms)

THD @ 30kHz

(dB MIN)

BX2479H

BX2479HNL

1.50

2:1

1500

-85

BX2479W

BX2479WNL

1.50

2:1

1500

-85

BX2243H

BX2243HNL

0.40

2:1

1500

-85

BX2443W

BX2443WNL

0.40

2:1

1500

-85

BX2900W

BX2900WNL

0.10

2:1

1500

-85

Notes: 1. Optional Tape & Reel packaging can be ordered by adding a “T” suffix to the part number (ex. BX2479WT and BX2479WNLT).

For Texas Instruments’ CPE Chipsets

For More Information

Pulse Worldwide

Headquarters

12220 World Trade Drive

San Diego, CA 92128

U.S.A.

Tel: 858 674 8100

Fax: 858 674 8262

Pulse Europe

Einsteinstrasse 1

D-71083 Herrenberg

Germany

Tel: 49 7032 78060

Fax: 49 7032 7806 135

Pulse China Headquarters

B402, Shenzhen Academy of

Aerospace Technology Bldg.

10th Kejinan Road

High-Tech Zone

Nanshan District

Shenzen, PR China 518057

Tel: 86 755 33966678

Fax: 86 755 33966700

Pulse North China

Room 2704/2705

Super Ocean Finance Ctr.

2067 Yan An Road West

Shanghai 200336

China

Tel: 86 21 62787060

Fax: 86 2162786973

Pulse South Asia

135 Joo Seng Road

#03-02

PM Industrial Bldg.

Singapore 368363

Tel: 65 6287 8998

Fax: 65 6287 8998

Pulse North Asia

3F, No. 198

Zhongyuan Road

Zhongli City

Taoyuan County 320

Taiwan R. O. C.

Tel: 886 3 4356768

Fax: 886 3 4356823 (Pulse)

Fax: 886 3 4356820 (FRE)

Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be

trademarks or registered trademarks of their respective owners. © Copyright, 2012. Pulse Electronics, Inc. All rights reserved.

Weight .....6.2 grams

Tray...............60/tray

Weight .....6.2 grams

Tray...............65/tray

Dimensions:

Unless otherwise specified, all tolerances are ±

Inches

mm

.010

0,25

1

1

1

1

1

1
