Board description
STEVAL385LED4CH
2/10
DocID024374 Rev 2
1
Board description

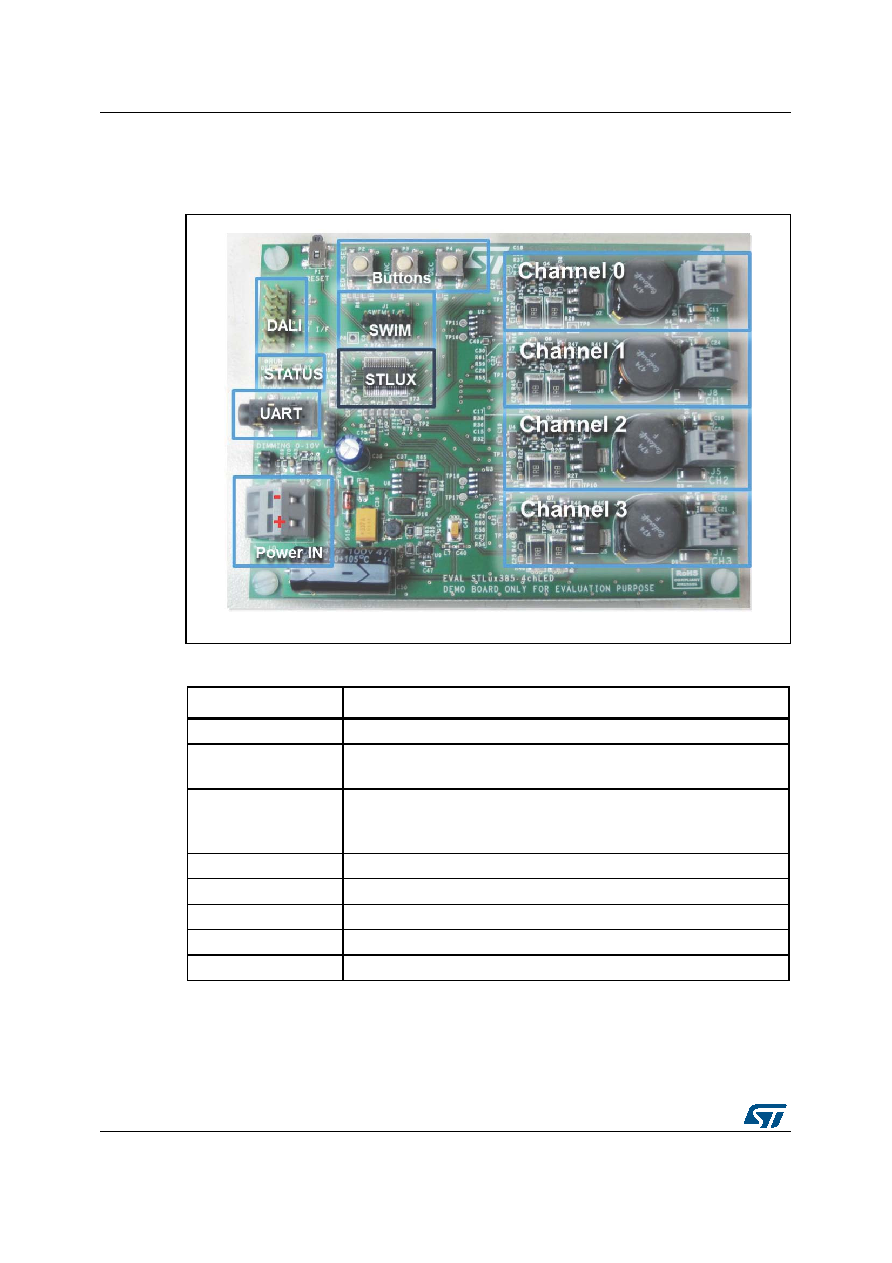

Figure 1. Jumper and connector location
Table 1. Connector pinout
Name
Function
Power IN (J9)
Input power connection. Range: 12 - 48 V.
DALI
DALI connector.
Compatible with STEVAL-ILM001V1 demonstration board.
UART
Serial link.
Connector: jack mono 3.5 mm
The UART cable is provided with the demonstration board.
SWIM
SWIM interface.
CH0 (J6)
LED string connector, channel 0.
CH1 (J8)
LED string connector, channel 1.
CH2 (J5)
LED string connector, channel 2.
CH3 (J7)
LED string connector, channel 3.
