LNBH25LS
I²C interface protocol
DocID026753 Rev 3
19/30
The transmission is terminated when the master sets the acknowledge high with the
following stop bit

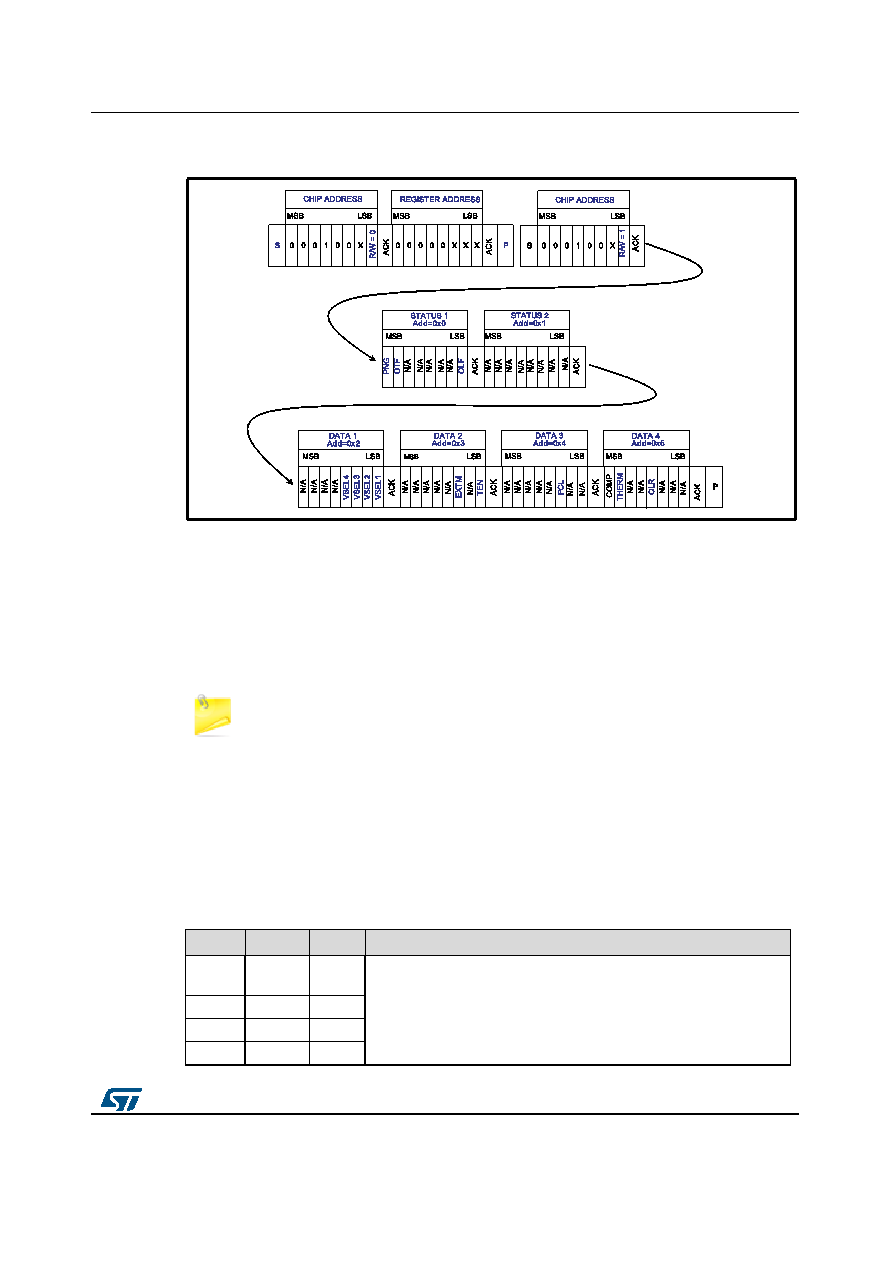

Figure 11: Example of reading procedure starting with first status address 0X0
ACK = acknowledge
S = start
P = stop
R/W = 1/0, read/write bit
X = 0/1, set the values to select the chip address.
The writing procedure can start from any register address (status 1, 2 or data 1..4)
by simply setting X values in the register address byte (after the chip address). It
can be also stopped by the master by sending a stop condition after any
acknowledge bit.
7.3
Data registers
The data 1..4 registers can be addressed both in write and read mode. In read mode they
return the last writing byte status received in the previous write transmission.
The following tables provide the register address values of data 1..4 and a function
description of each bit.
Table 6: Data 1 (read/write register. Register address = 0X2)
Bit
Name
Value
Description
Bit 0
(LSB)
VSEL1
0/1
Output voltage selection bits. See Table 13: "Output voltage
selection table (data1 register, write mode)"
Bit 1
VSEL2
0/1
Bit 2
VSEL3
0/1
Bit 3
VSEL4
0/1
