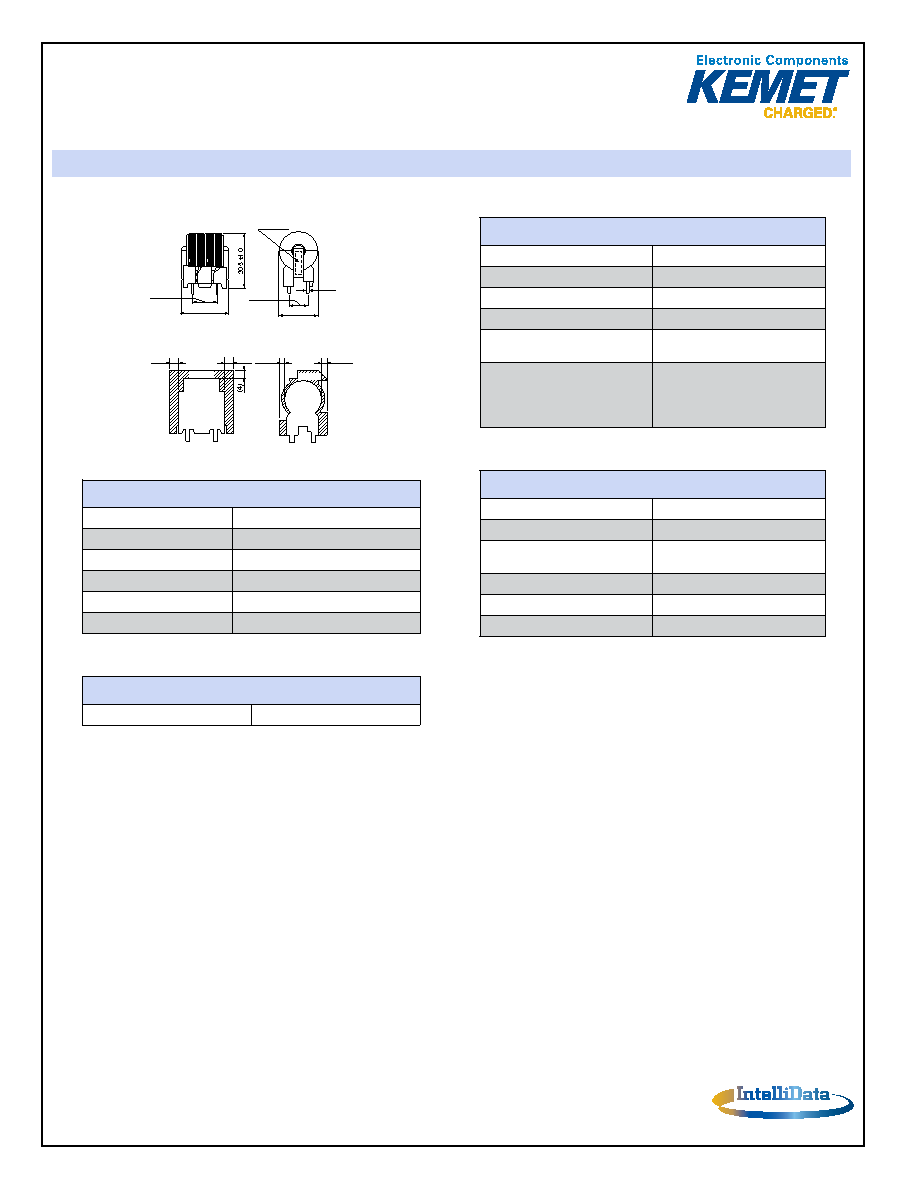

KEMET Part Number: SS26V-R200102

(UAL26VR2001020)

Commercial Grade, SS26V, 0.0102 H

13.0 ±0.5

26.0 ±1.0

10.0 ±0.5

ø0.8

20.5 ±1.0

Marking

Size Comparison with SS28V Type

SS26V

(1.5)

(1.5)

(0.25)

(0.25)

SS28V

SS26V

SS28V

SS26V

Dimensions

L

26mm +/-1mm

T

20.5mm +/-1mm

H

30.5mm +/-1mm

S

10mm +/-0.5mm

S1

13mm +/-0.5mm

F

0.8mm NOM

Packaging Specifications

Weight: 25.9 g

General Information

Style: Through-Hole Choke

Series: SS26V

Description: Common Mode Filter

RoHS: Yes

Miscellaneous: Inductance Measurement

Condition: 1kHz 1V KC530

Notes:

Replacement For SS28V Type

And SS24V Type. Replacement

For SS28V Type And SS24V

Type

Specifications

Inductance: 10200 uH

Rated Temperature: 120C

Current: 2 mAmps (Irms, 50C Rise By

Self Heating)

Voltage AC: 250 VAC

DC Resistance: 250 mOhms

Insulation Resistance: 100 MOhms
